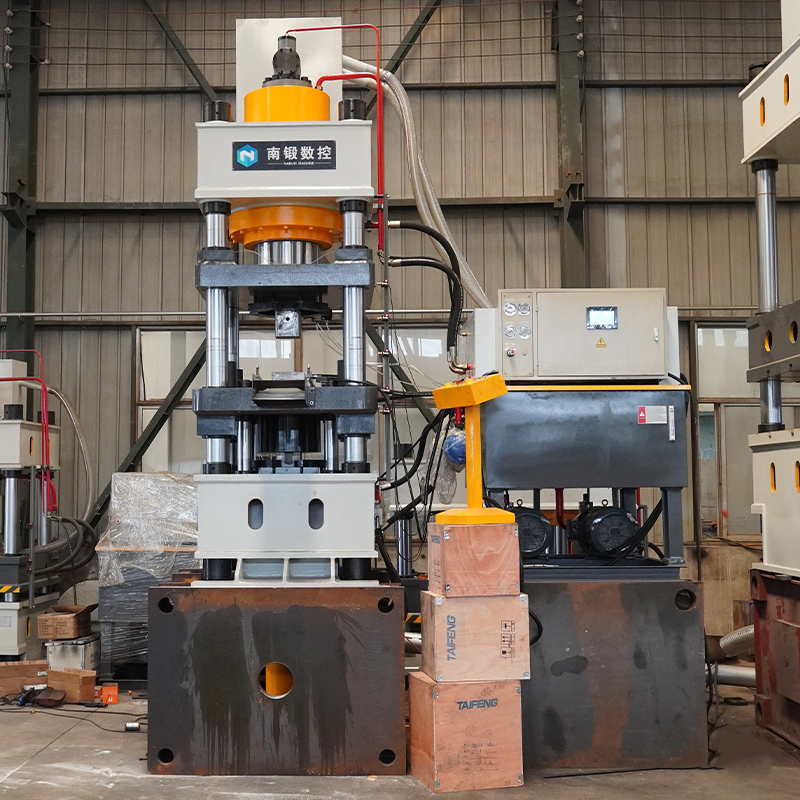

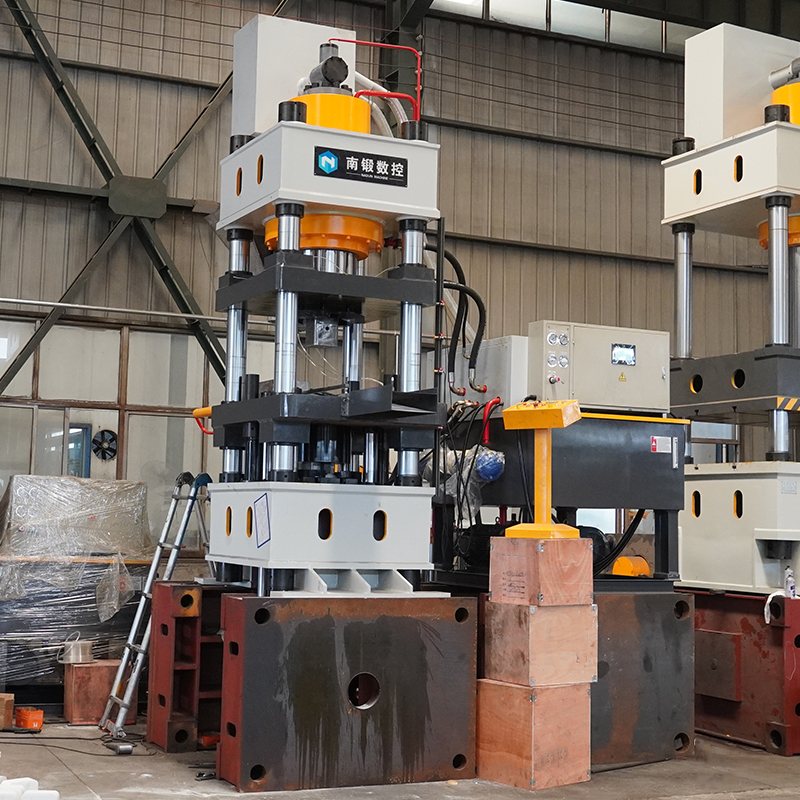

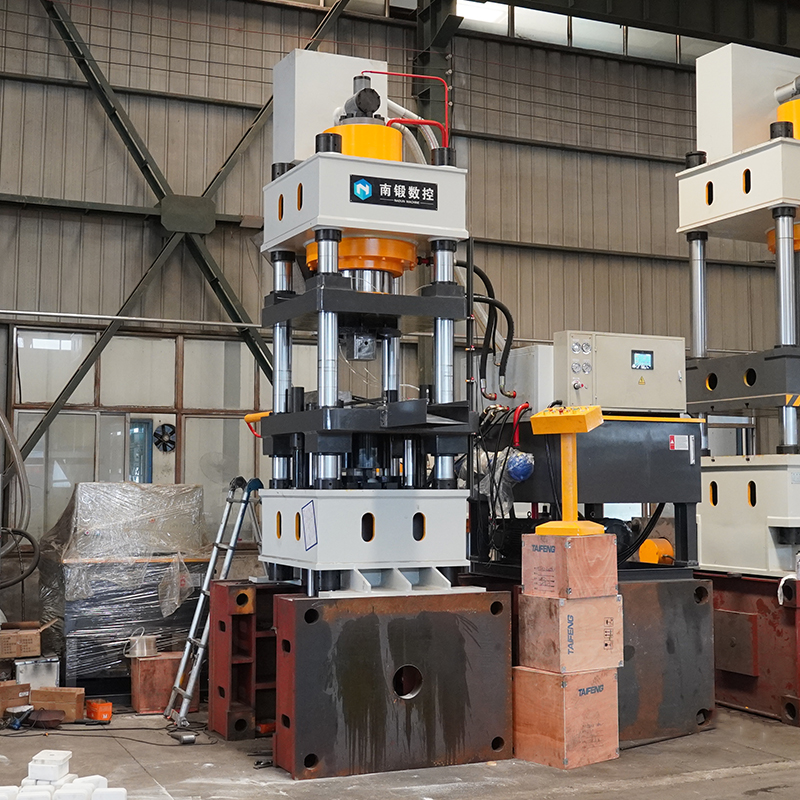

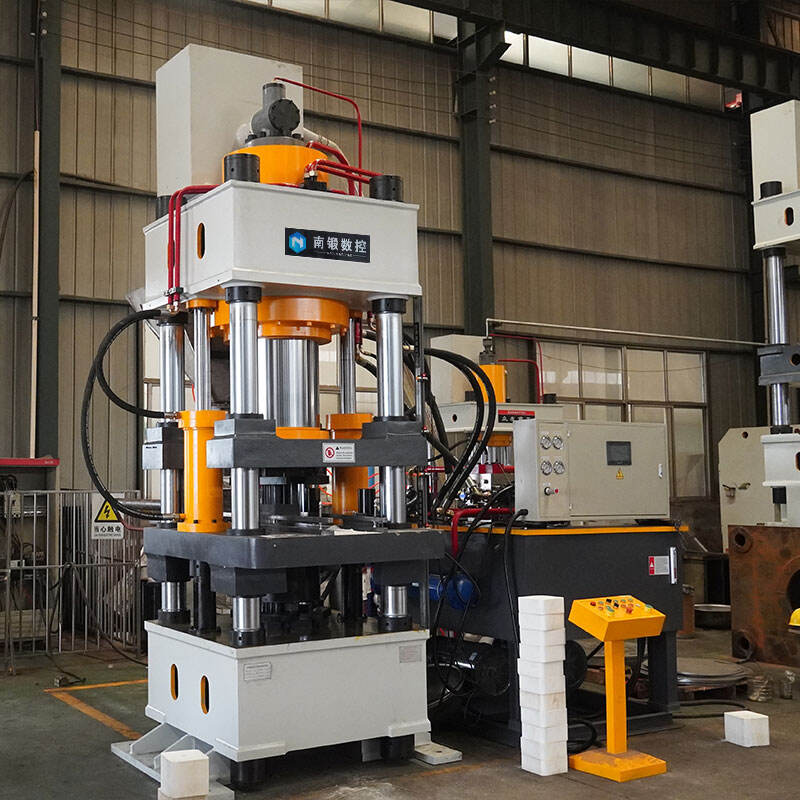

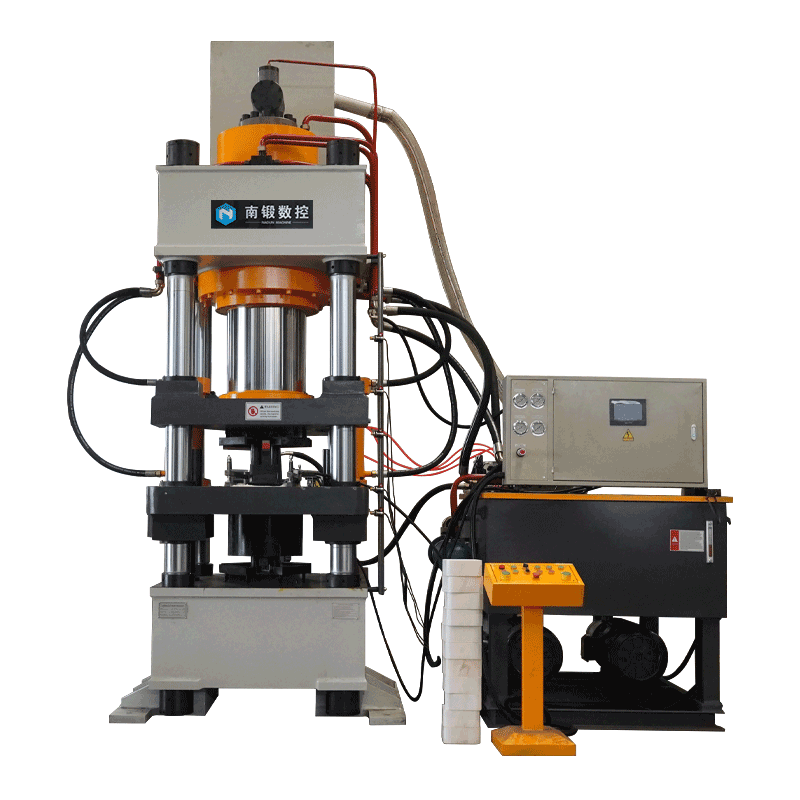

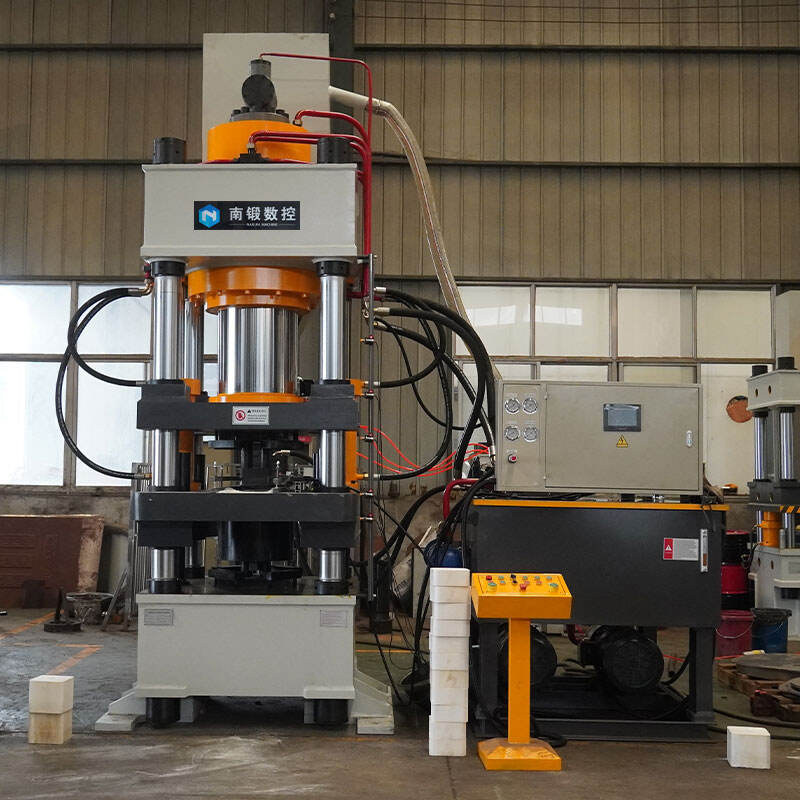

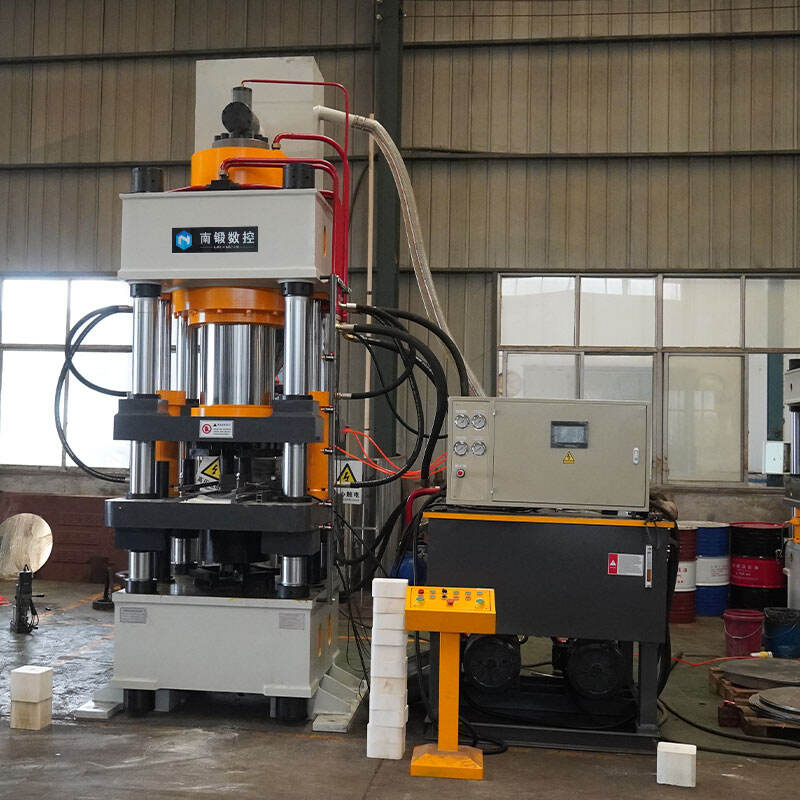

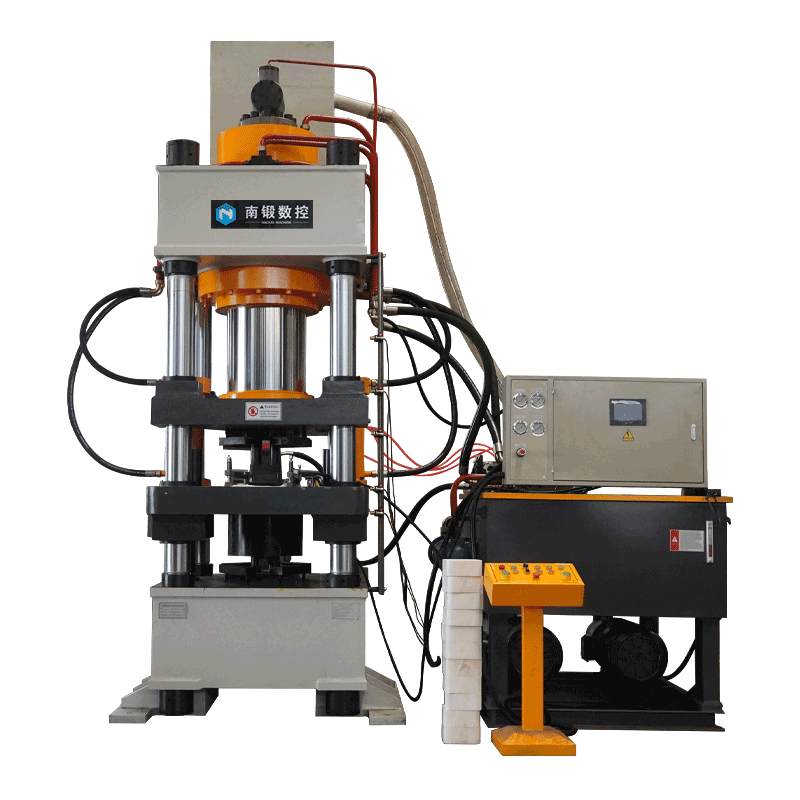

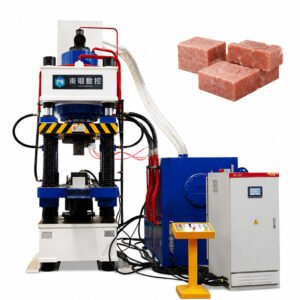

500 tons cattle and sheep licking salt brick making machine
500 tons cattle and sheep licking salt brick making machine
500 tons cattle and sheep licking salt brick making machine
500 tons cattle and sheep licking salt brick making machine
500 tons cattle and sheep licking salt brick making machine
500 tons cattle and sheep licking salt brick making machine
500 tons cattle and sheep licking salt brick making machine
500 tons cattle and sheep licking salt brick making machine

500 tons cattle and sheep licking salt brick making machine

Place of Origin:

 Tengzhou China

Brand Name:

Nadun

Model Number:

YZ79-500T

Certification:

CE ISO

Minimum Order Quantity:

1

Packaging Details:

The sample includes a hydraulic press and mold. Please contact us for more details.

Delivery Time:

15-45 day

Payment Terms:

L/C D/P D/A T/T

Supply Ability:

50set/m

Product Overview

500 tons cattle and sheep licking brick machine (4).jpg

500 tons of cattle and sheep lick brick machine" is designed for large-scale production of cattle and sheep lick brick design of special hydraulic molding equipment, the core function is through the high-pressure minerals, vitamins, molasses and other mixed raw materials into a high-density compaction, nibble-resistant block lick brickThe core function of the machine is to compact the mixture of minerals, vitamins and molasses into high density, nibble-resistant lick bricks through high pressure, to meet the demand of trace elements supplementation in cattle and sheep breeding.The machine has an automatic fabric system, while we can provide a fully automated production line.Including mixer, conveyor belt, automatic packing machine, palletizer and so on.The whole process can be automated, which greatly improves the production efficiency and reduces the labor cost!

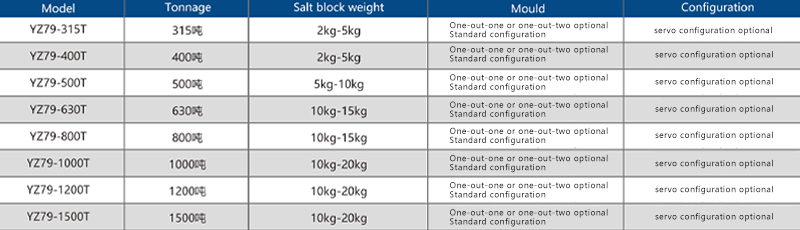

Parameters

Model Tonnage Salt block weight Mould Configuration
YZ79-315T 315T 2kg-5kg Prgss one piece at a time or two pleces at a time optioal ordinary/servo press optional
YZ79-400T 400T 2kg-5kg Prgss one piece at a time or two pleces at a time optioal ordinary/servo press optional
YZ79-500T 500T 5kg-10kg Prgss one piece at a time or two pleces at a time optioal ordinary/servo press optional
YZ79-630T 630T 10kg-15kg Prgss one piece at a time or two pleces at a time optioal ordinary/servo press optional
YZ79-800T 800T 10kg-15kg Prgss one piece at a time or two pleces at a time optioal ordinary/servo press optional
YZ79-1000T 1000T 10kg-20kg Prgss one piece at a time or two pleces at a time optioal ordinary/servo press optional
YZ79-1200T 1200T 10kg-20kg Prgss one piece at a time or two pleces at a time optioal ordinary/servo press optional
YZ79-1500T 1500T 10kg-20kg Prgss one piece at a time or two pleces at a time optioal ordinary/servo press optional

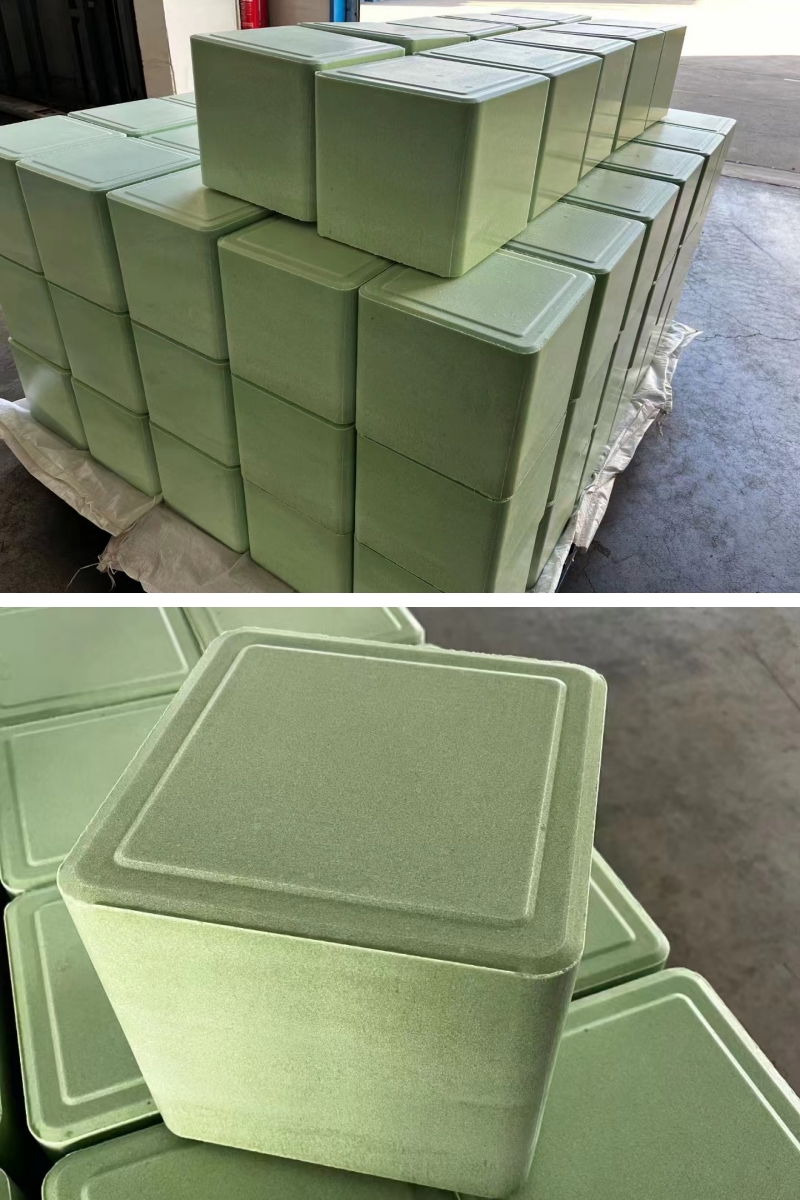

Pressed Product

Salt Block Making Machine With Production Line Animal Mineral Salt Licking Blocks Hydraulic Press  (4).jpg

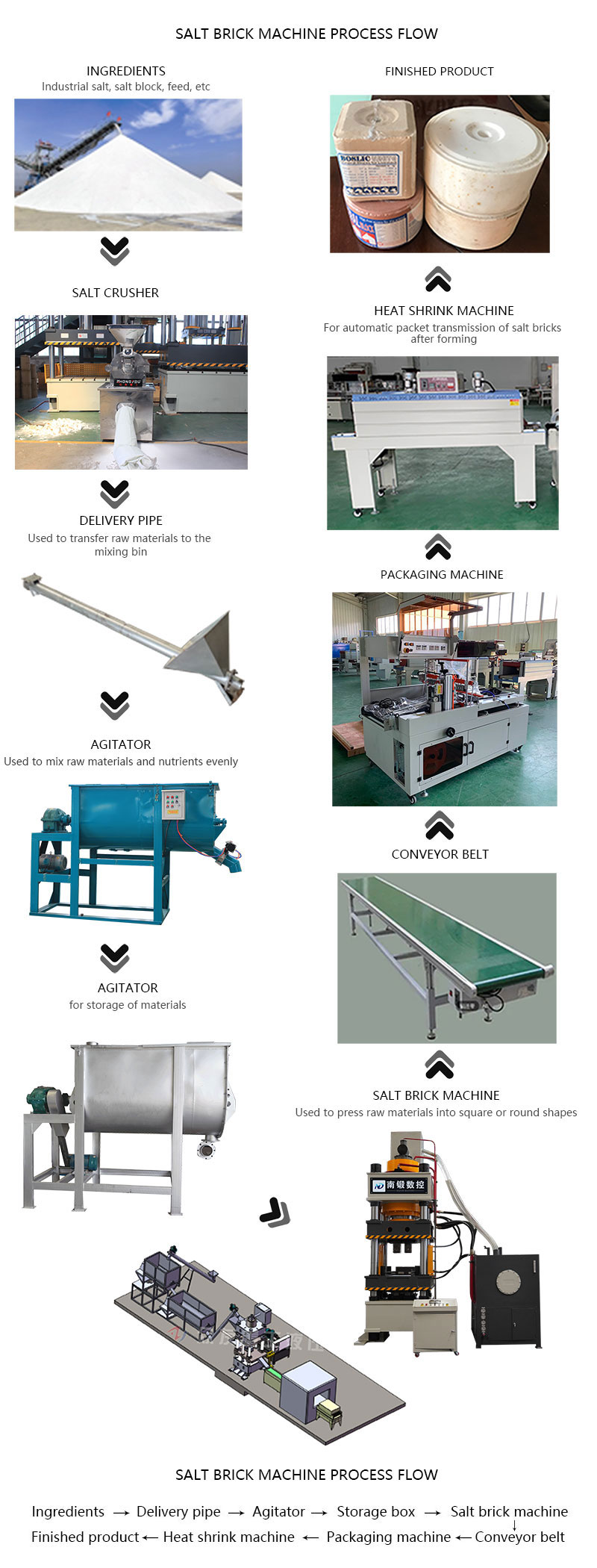

Process Flow

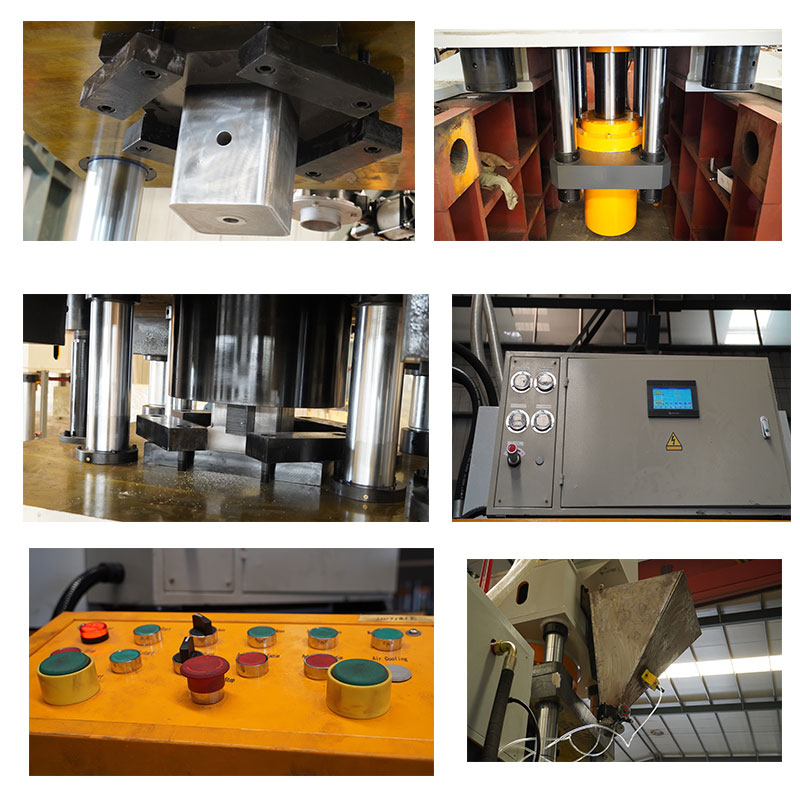

Equipment Details

500 tons cattle and sheep licking brick machine (5).jpg

Performance Characteristics

With moving powder and hydraulic proportion floating molding technology:
The molding density of the products is effectively controlled to ensure the density and dimensional stability of the salt bricks.
Mechanical block positioning and stepless adjustment mechanism for loading, molding and demolding positions further improves the geometric stability of the products.
Over-pressure protection and micro-return function for demolding:
Adopting adjustable force and stroke of the upper indenter demolding protection device ensures the qualified rate of the products and avoids the damage of the mold at the same time.
Electrical control technology:
The unique electrical control technology can flexibly set the action program of each product step drive part on the touch screen according to the product molding requirements without changing the internal program.
In line with the powder industry products of complex shapes, multiple varieties of step parts of the press molding requirements, versatility.

Scope Of Application

The 500 tons cattle and sheep licking brick machine is mainly used for feed processing enterprises, large-scale farms or cooperatives to produce nutritious licking bricks (also known as "mineral bricks") for cattle and sheep."lick block")

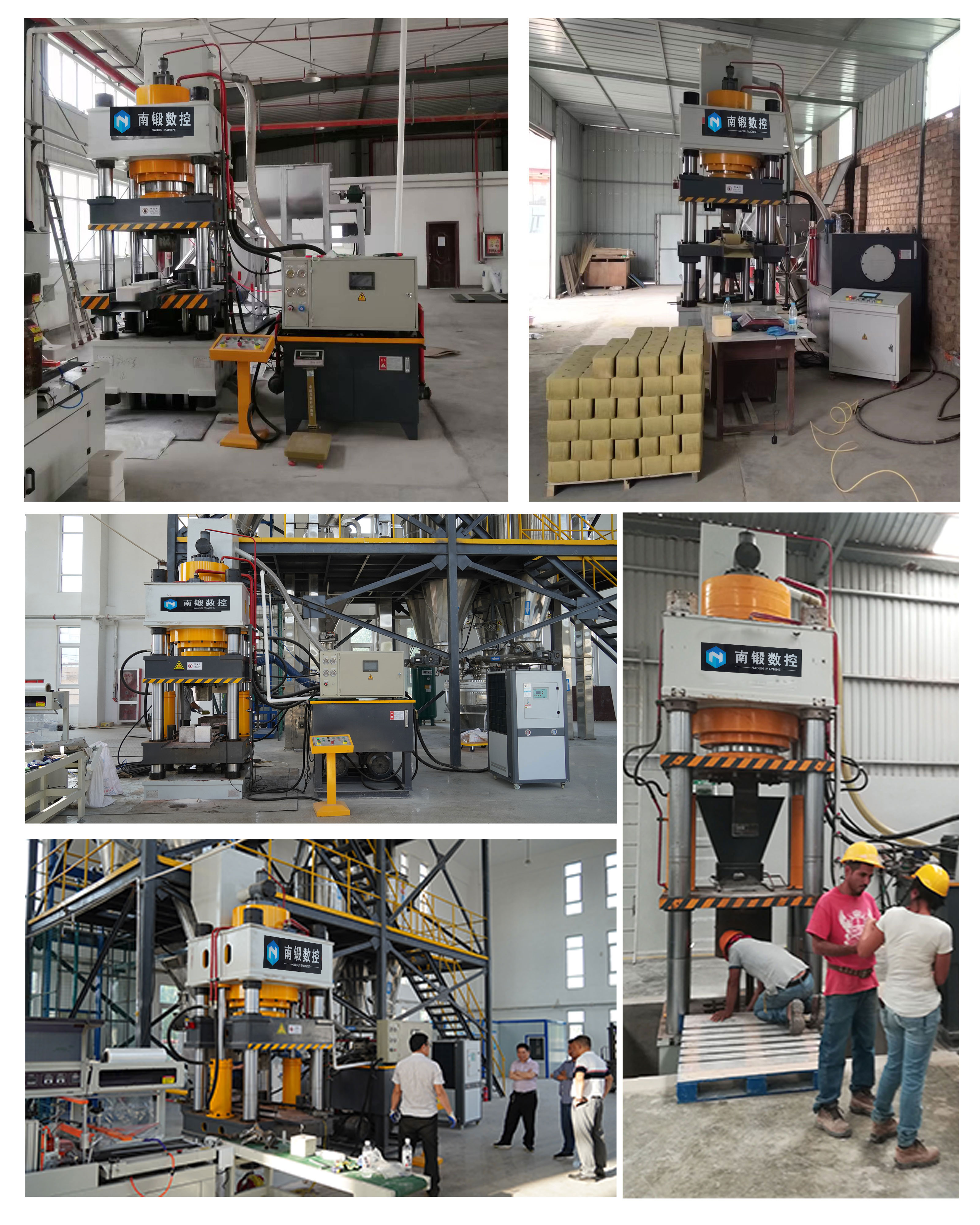

Application Cases

500 tons cattle and sheep licking brick machine (7).jpg

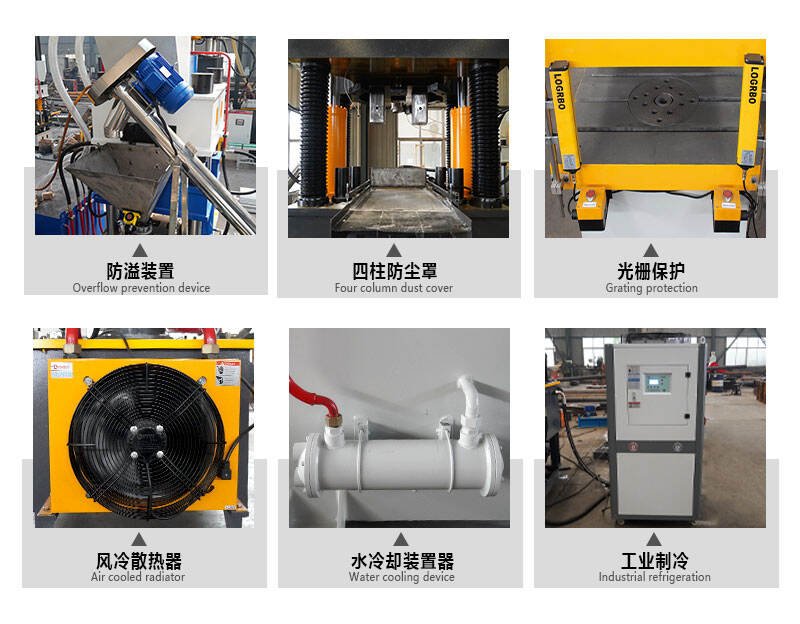

Optional Accessories


Packing & Shipping


After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing  press machine user manuals to facilitate user learning on how to operate and maintain the  press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
