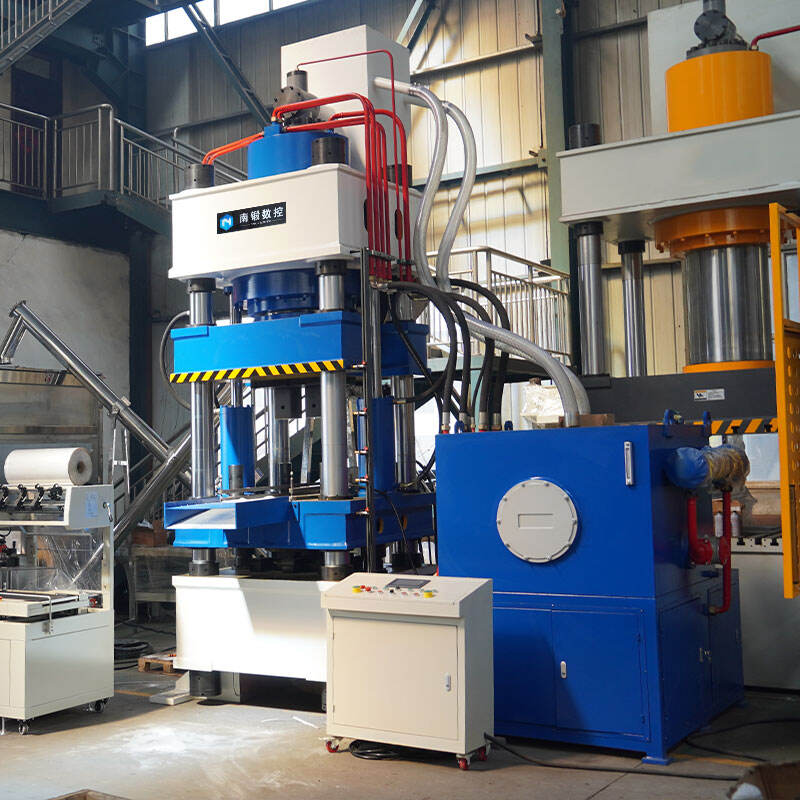

630 tons cattle and sheep licking brick machine

630 tons cattle and sheep licking brick machine

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YZ79-630T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

630 tons cattle and sheep licking brick machine (6).jpg

630 tons salt brick machine is a kind of automatic hydraulic equipment designed for mass production of salt bricks, which is widely used for pressing and molding of livestock salt bricks, nutritional salt bricks, mineral salt bricks and other powder products.

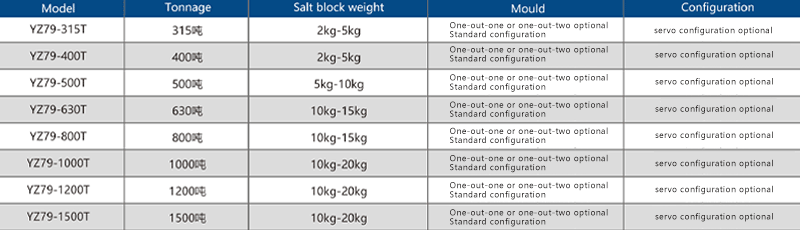

Parameters

Model	Tonnage	Weight of Molding Salt Brick	Mold	Configuration
YZ79-315T	315 tons	2KG-5KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-400T	400 tons	2KG-5KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-500T	500 tons	5KG-10KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-630T	630 tons	10KG-15KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-800T	800 tons	10KG-15KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-1000T	1000 tons	10KG-20KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-1200T	1200 tons	10KG-20KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-1500T	1500 tons	10KG-20KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional

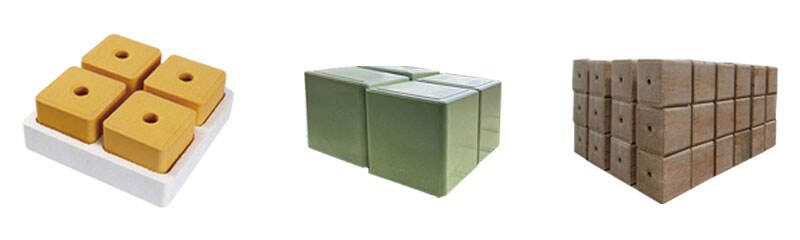

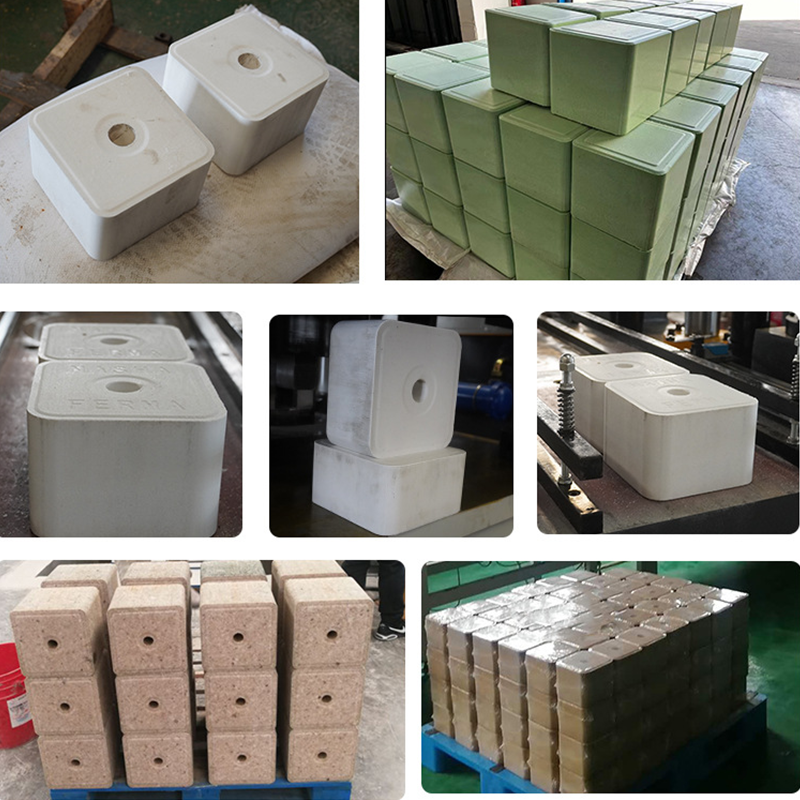

Pressed Product

630 tons cattle and sheep licking brick machine (9).jpg

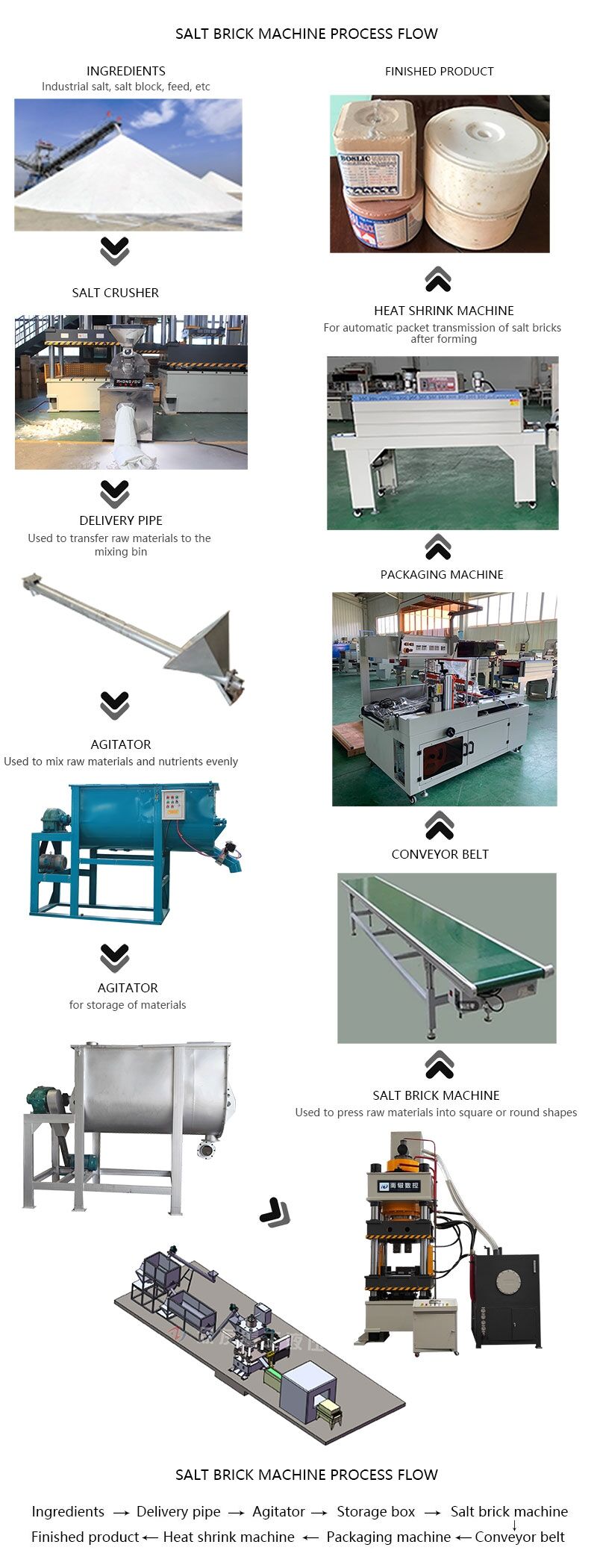

Process Flow

630 tons cattle and sheep licking brick machine (1).jpg

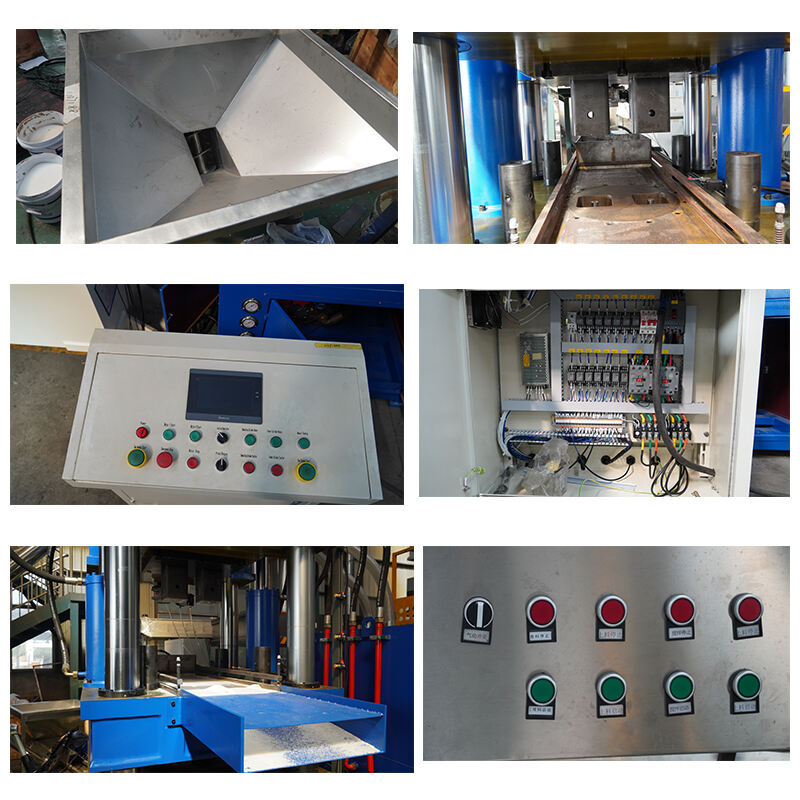

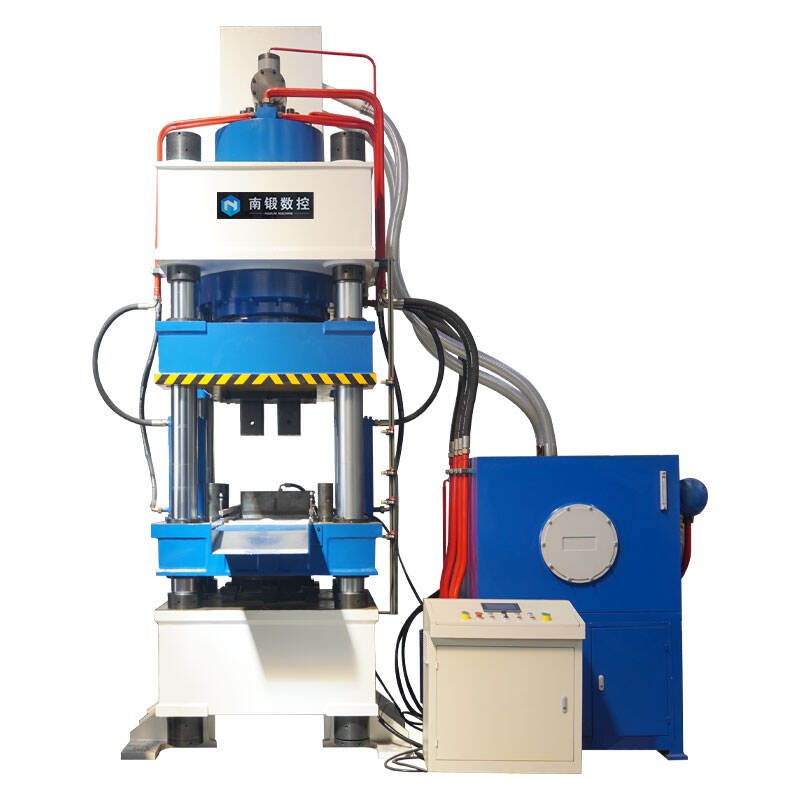

Equipment Details

630 tons cattle and sheep licking brick machine (2).jpg

Performance Characteristics

Three beams and four columns structure
The mainframe adopts high-strength cast steel frame with four-column guiding system, which ensures that the positioning accuracy of the mold in the pressing process is ≤0.1mm, avoiding bad molds and prolonging the service life of the equipment.
Hydraulic pipeline design optimization, the failure rate is less than 2%, and the service life of the components is more than 50,000 pressing cycles.
Energy-saving and environmental protection configuration
Equipped with servo motors and energy-saving hydraulic pump station, energy consumption is reduced by 30% compared with traditional equipment, and the annual power saving of a single equipment can reach 20,000 degrees.
The production process has no exhaust gas and wastewater discharge, which is in line with green manufacturing standards.
Intelligent control system
PLC and text display realize man-machine interaction, support real-time adjustment of parameters and production data recording, low operation threshold, a single person can monitor the entire production line.
Fault self-diagnosis function can quickly locate the problem and increase the maintenance efficiency by 50%.

Scope Of Application

Livestock breeding
It mainly presses cattle and sheep lick bricks, supplements calcium, phosphorus, magnesium, zinc and other trace elements in livestock, improves feed utilization and promotes growth.
Suitable for large-scale ranch, feed processing plant and salt brick professional production enterprises.
Industrial salt brick field
It can press industrial waste salt, water purification salt bricks, etc., used in water treatment, chemical raw materials and other fields, expanding the application boundary of the equipment.

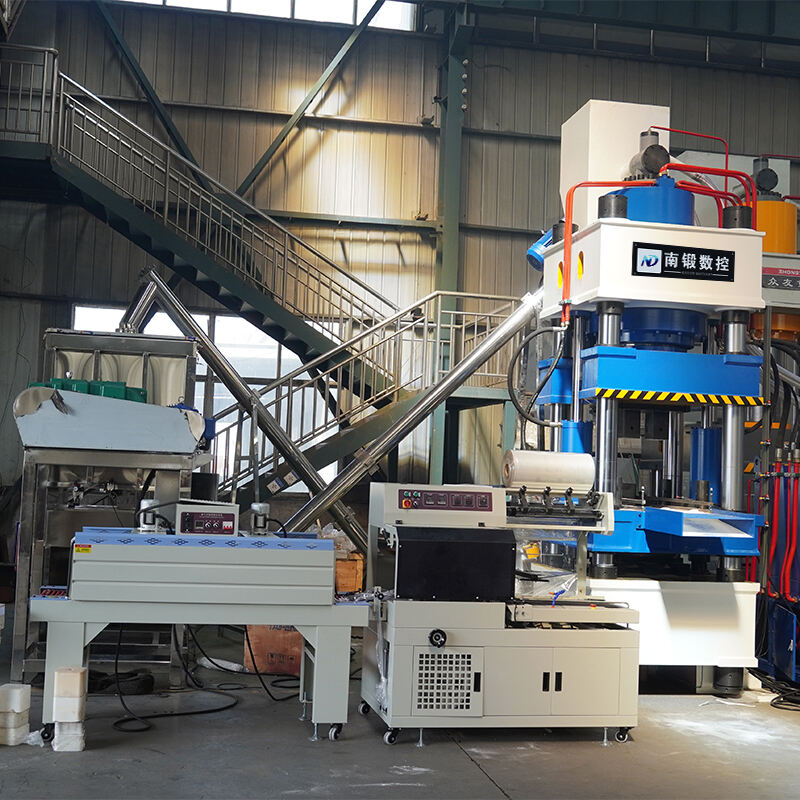

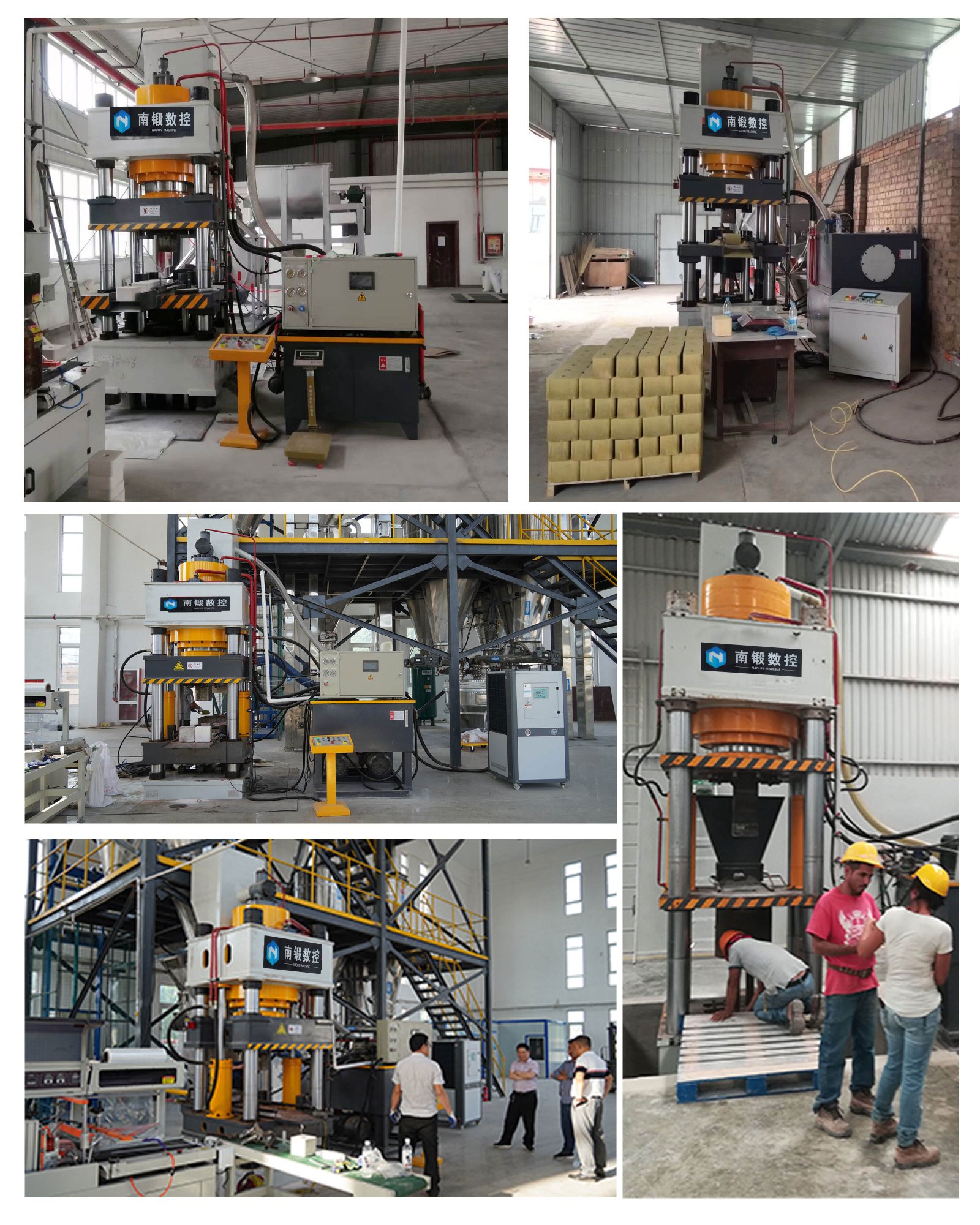

Application Cases

500 tons cattle and sheep licking brick machine (7).jpg

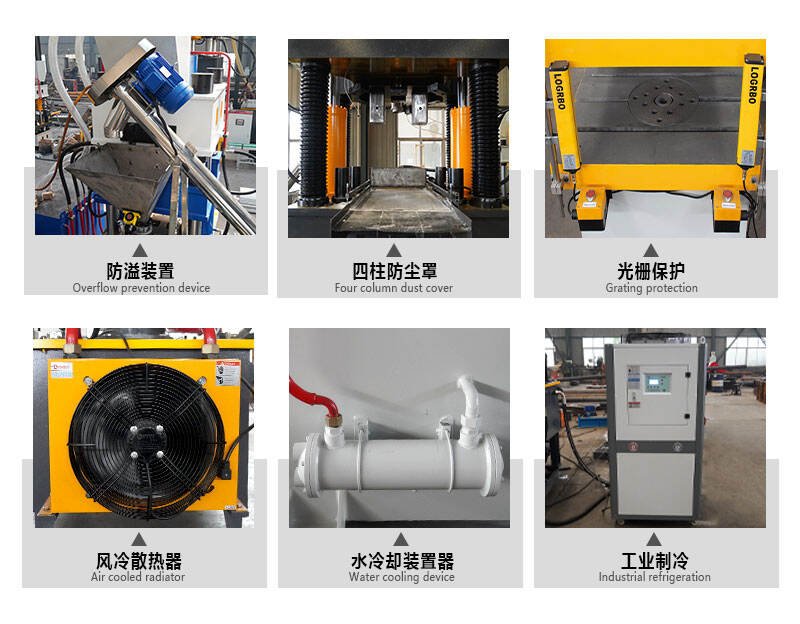

Optional Accessories


Packing & Shipping


After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
