800 tons salt brick machine production line

800 tons salt brick machine production line

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YZ79-800T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

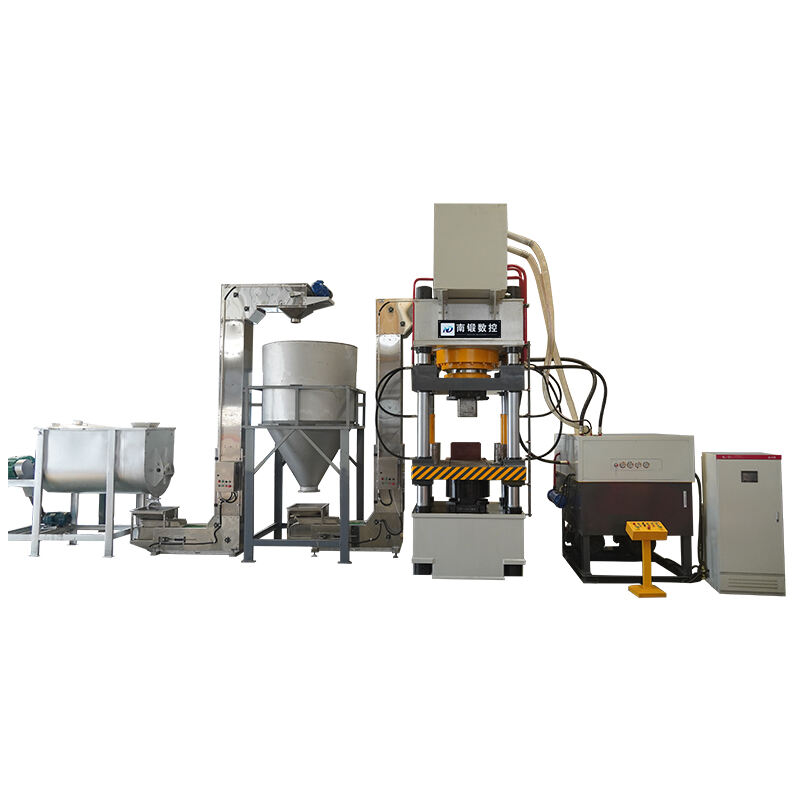

800 tons salt brick machine production line (7.jpg

The 800 tons salt brick machine production line is mainly used for the large-scale production of mineral lick bricks, compound nutrition lick bricks and other products. We can independently produce the complete production line from mixer - lifting tube and storage bin - hydraulic press - automatic sealing and cutting machine.

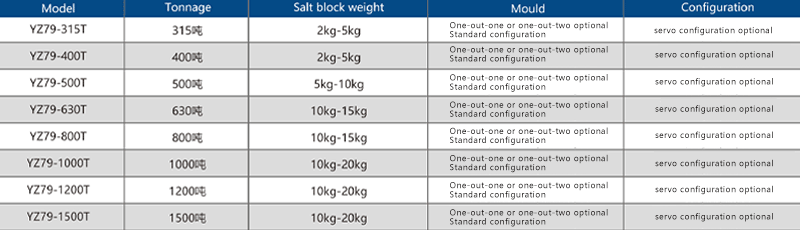

Parameters

Model	Tonnage	Weight of Molding Salt Brick	Mold	Configuration
YZ79-315T	315 tons	2KG-5KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-400T	400 tons	2KG-5KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-500T	500 tons	5KG-10KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-630T	630 tons	10KG-15KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-800T	800 tons	10KG-15KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-1000T	1000 tons	10KG-20KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-1200T	1200 tons	10KG-20KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional
YZ79-1500T	1500 tons	10KG-20KG	One-out-one or one-out-two optional	Standard configuration, servo configuration optional

Pressed Product

Salt Block Making Machine With Production Line Animal Mineral Salt Licking Blocks Hydraulic Press (4).jpg

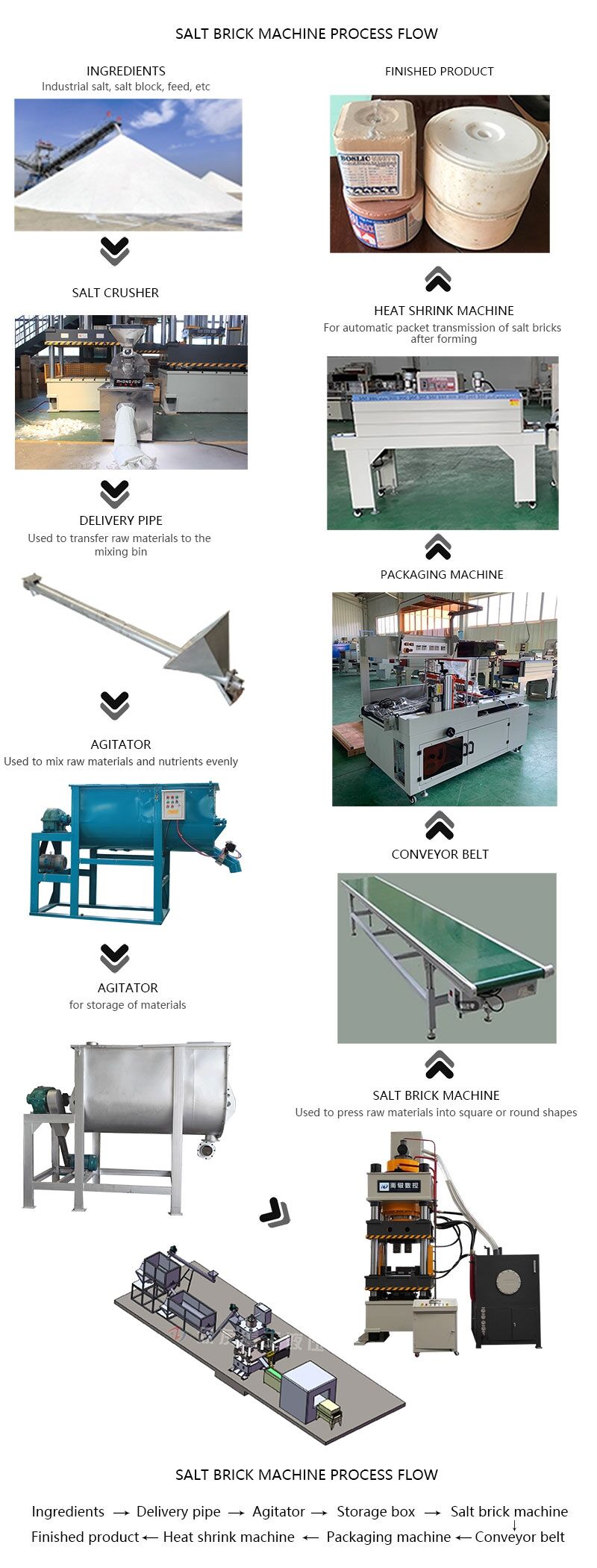

Process Flow

800 tons salt brick machine production line (6).jpg

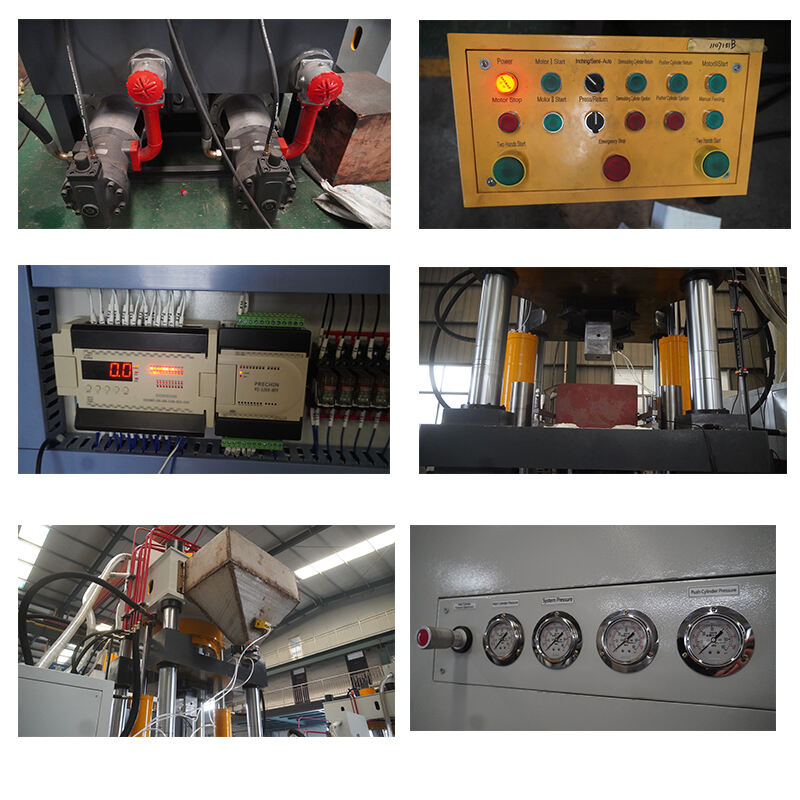

Equipment Details

800 tons salt brick machine production line (8).jpg

Performance Characteristics

Efficient production
Output: Take 20KG/block as an example, the daily output of a single machine can reach 10-12 tons (based on 8 hours), which meets the demand of medium-sized farms.
Stability: four-beam, four-pillar structure + redundant design of hydraulic system, failure rate is less than 2%, continuous operation without stress.
Controllable quality
Density uniformity: through the closed-loop control of pressure, the density deviation of salt bricks is ≤±2%, and the lick resistance is improved by 50%.
Dimensional accuracy: mold processing accuracy of ±0.1mm, salt bricks with neat edges and corners, reducing transportation breakage.
Cost optimization
Energy consumption: servo motor energy saving 30%, hydraulic system efficiency ≥ 85%, single ton salt bricks power consumption ≤ 35 degrees.
Maintenance cost: modularized design, wearing parts (such as seals, hydraulic oil) replacement cycle extended to more than 6 months.

Scope Of Application

Cattle and Sheep Farm
Requirements: Customized 10KG/block salt bricks, easy to hang licking and reduce waste.
Configuration: 630-ton hydraulic press (one die, two outputs) + automatic packaging line, with a daily output of 8 tons, to meet the needs of 5,000 head of cattle farms.
Salt brick processing plant
Requirements: Multi-size salt bricks production, covering 2.5KG-20KG market.
Configuration: 800 tons hydraulic press (can change the mold) + mixer + storage silo, to achieve "raw materials - finished products" full process automation.
Export-oriented enterprises
Requirements: Comply with EU CE certification, salt brick density ≥1.8g/cm³.
Configuration: imported hydraulic valves + high-precision molds, products through the SGS test, the export price increased by 15%.

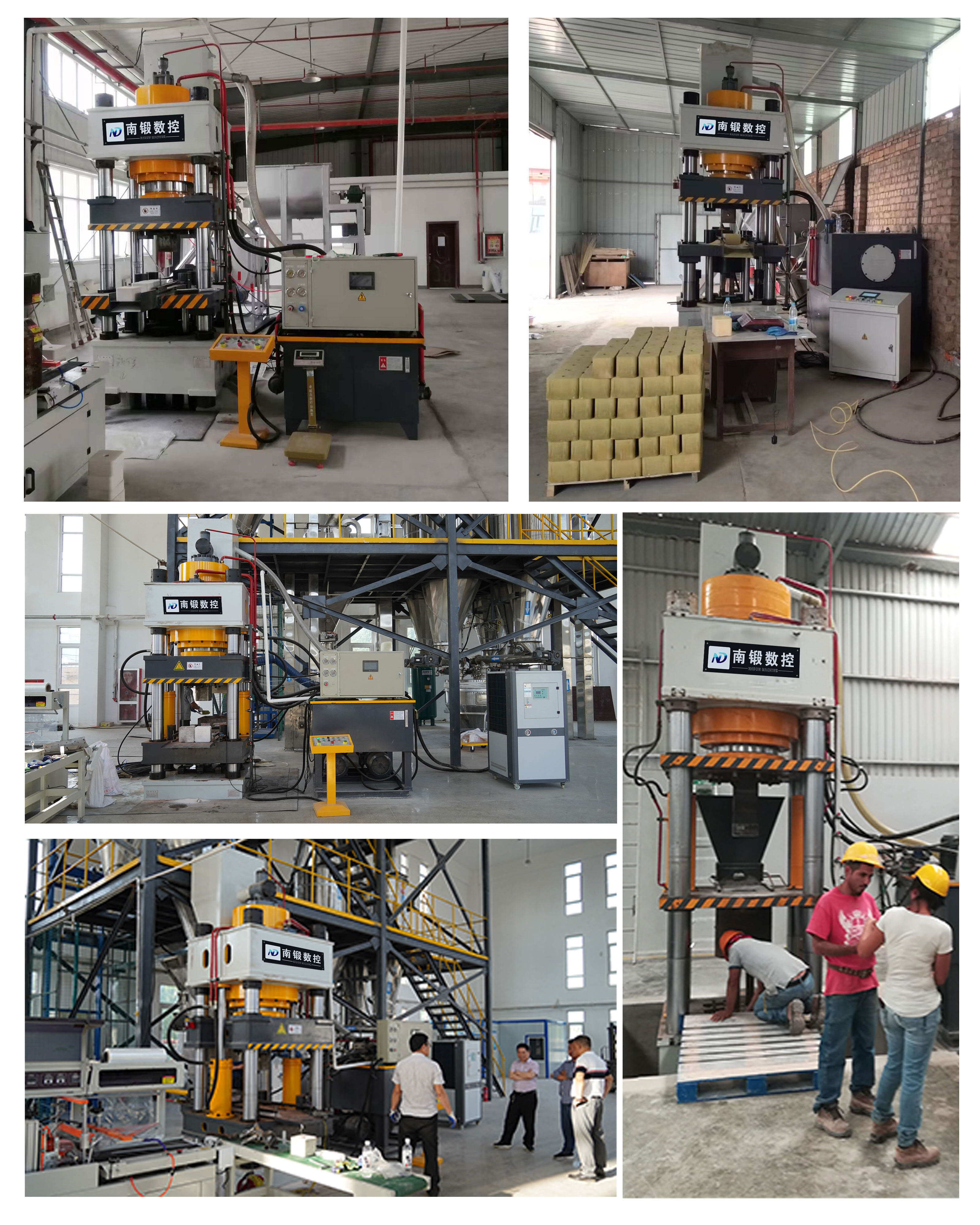

Application Cases

800 tons salt brick machine production line (9).jpg

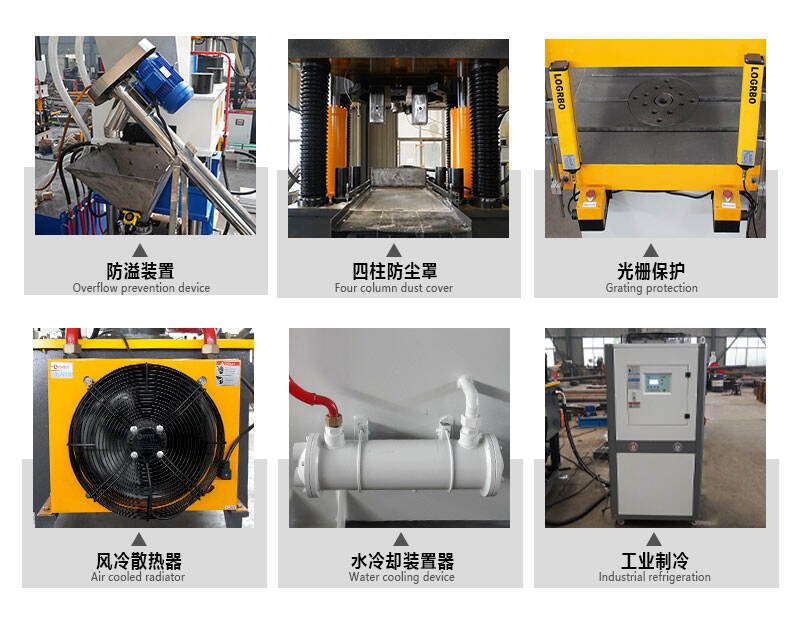

Optional Accessories

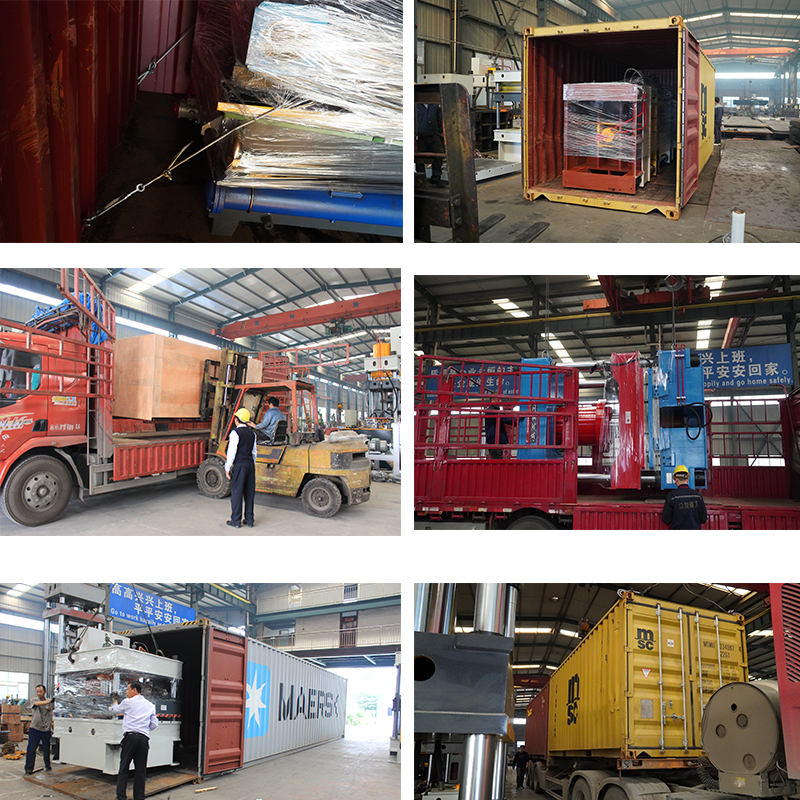

Packing & Shipping


After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
