Product Overview

automatic 800 ton hydraulic pres for stainless steel water tanks making machine manufacture

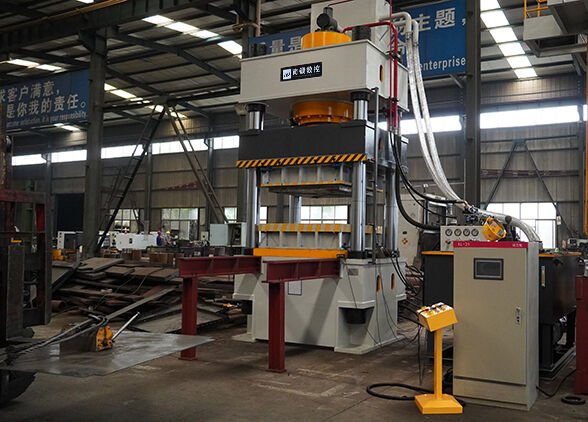

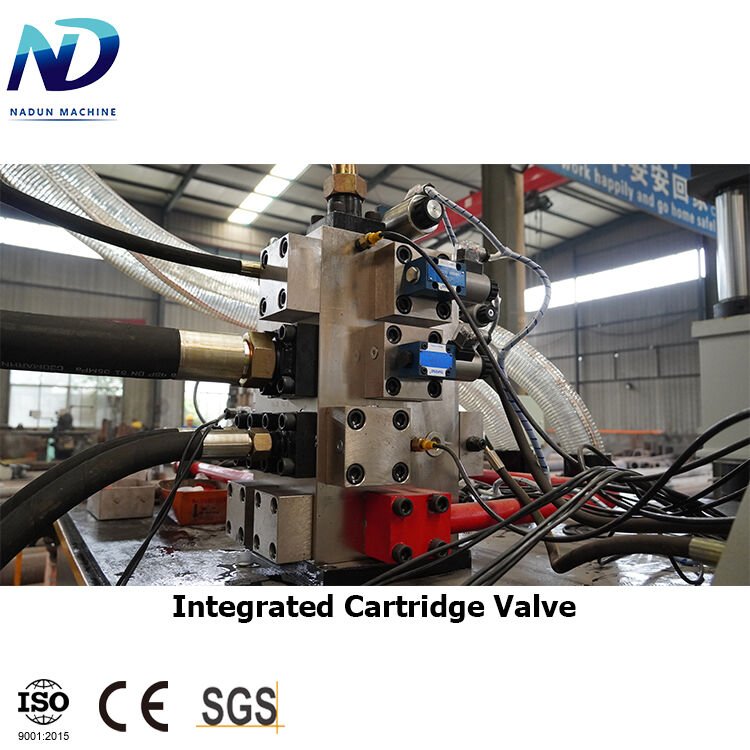

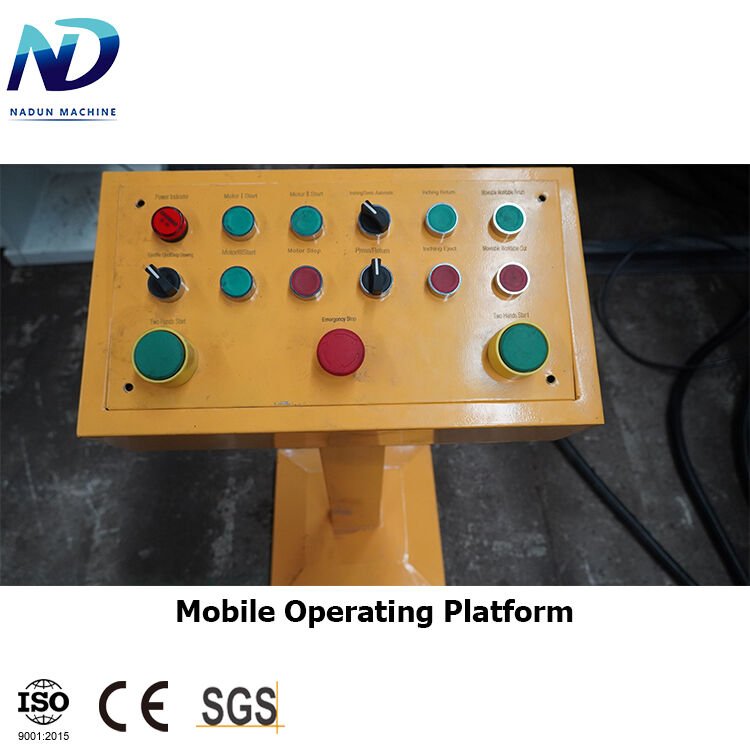

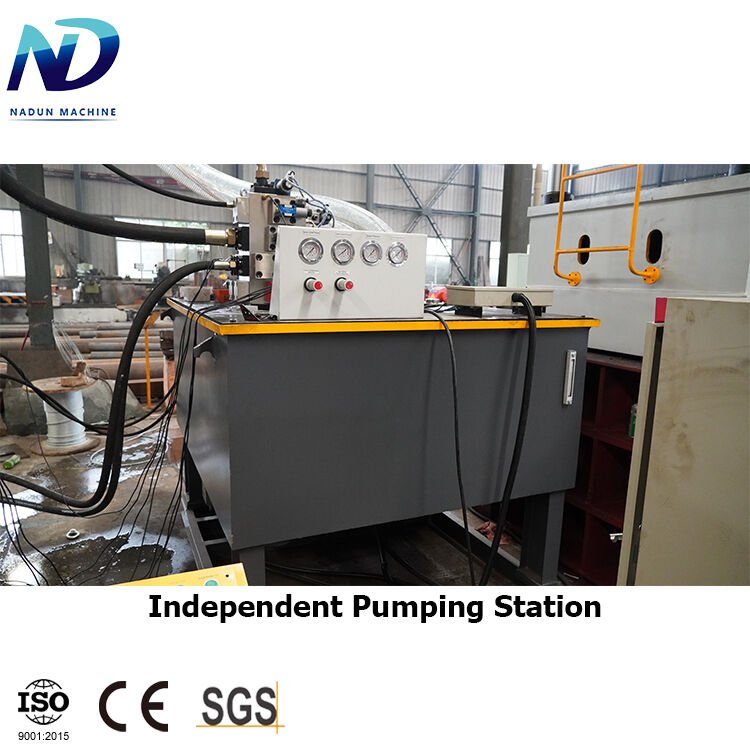

The four-column universal hydraulic press features a three-beam, four-column structure. The hydraulic system uses cartridge valve integrated control, and it has an independent and reliable electric control system. With broad versatility, it is suitable for the pressing and forming of various plastic materials, such as extrusion, bending, flanging, and stretching. It can also be used for the pressing and forming of various plastic and powder products.
The machine can realize two forming processes: fixed stroke and fixed pressure, and it also has features like pressure holding and delay. It is widely applicable and economically efficient. If the hydraulic press is used for blanking and punching processes, a punching buffer device should be installed to eliminate or reduce the impact and noise at the moment of material fracture.

automatic 800 ton hydraulic pres for stainless steel water tanks making machine factory

automatic 800 ton hydraulic pres for stainless steel water tanks making machine manufacture

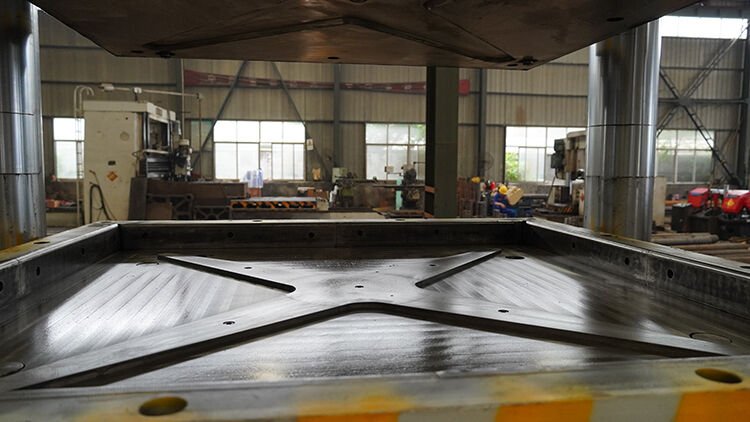

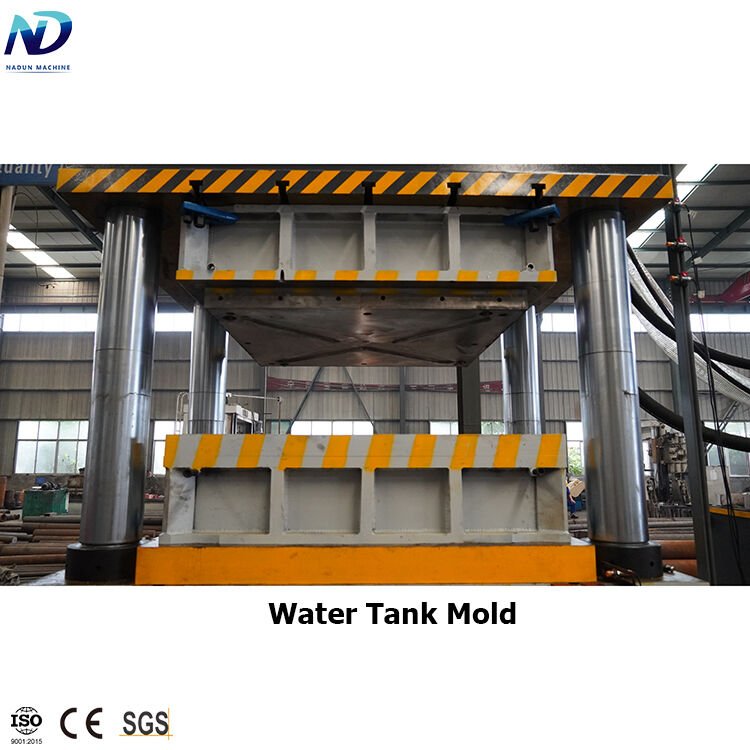

Hydraulic presses change the shape of metal sheets by using molds.

automatic 800 ton hydraulic pres for stainless steel water tanks making machine factory

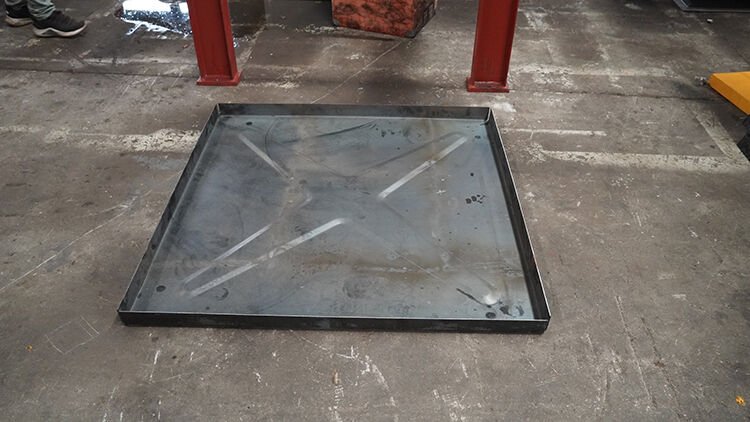

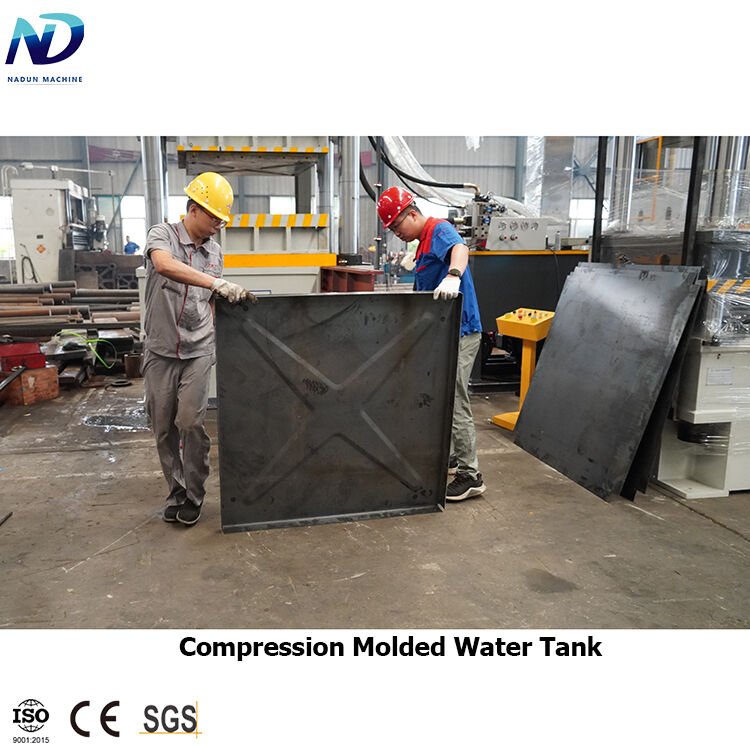

The water tank panel being pressed in the video is approximately 1.3 meters in length.
automatic 800 ton hydraulic pres for stainless steel water tanks making machine details
automatic 800 ton hydraulic pres for stainless steel water tanks making machine manufacture

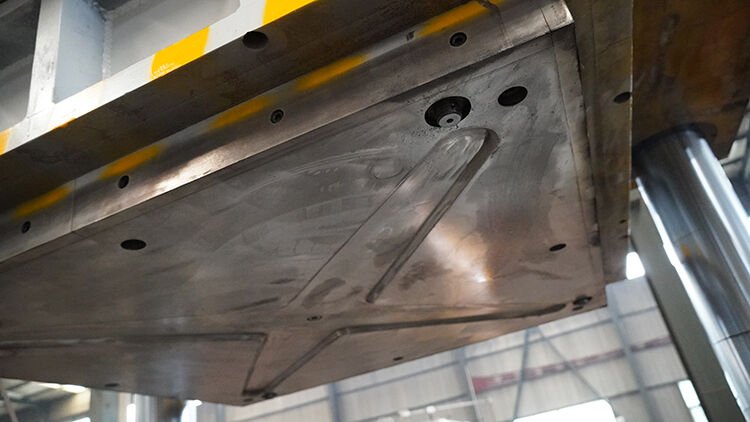

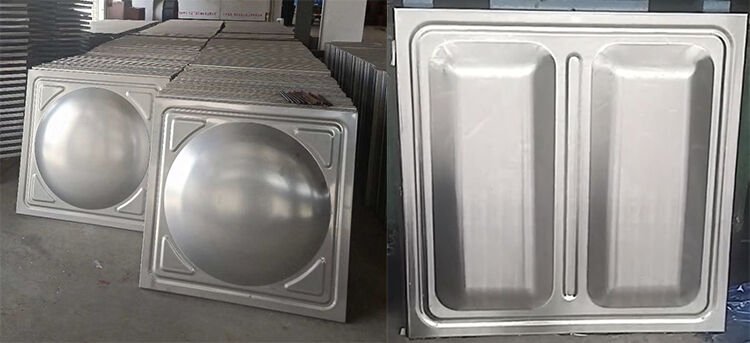

Other shapes of water tank panels or different products can also be produced by changing the mold.
automatic 800 ton hydraulic pres for stainless steel water tanks making machine supplier

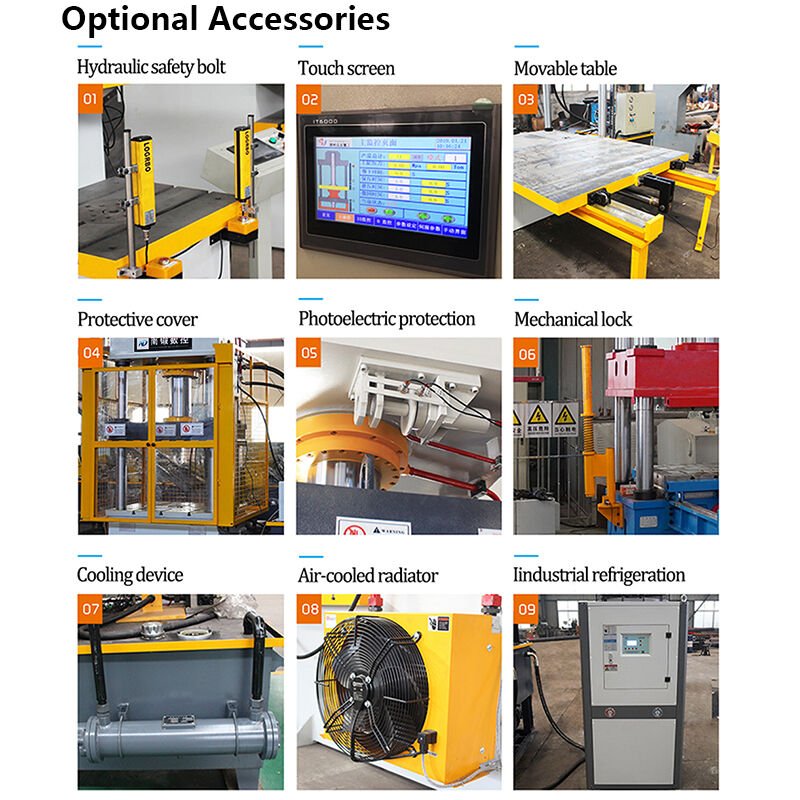

The entire machine can be highly customized with a variety of different brand components to choose from.
automatic 800 ton hydraulic pres for stainless steel water tanks making machine manufacture

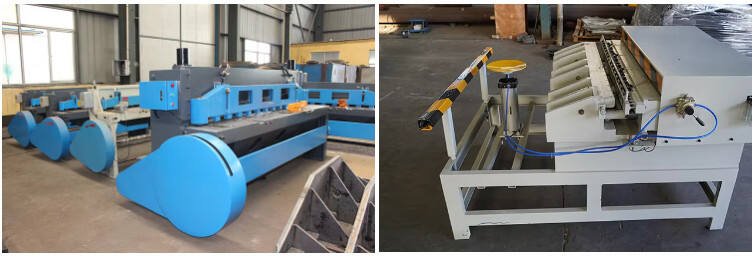

We also offer supporting equipment such as shearing machines and punching machines, which save you time in selection and facilitate your production process.
Specification
item
value
Slide Stroke (mm)
900
Machine Type
Four-column Three-beam Hydraulic Press
Ejector Force (kN)
1000
Return Force (kN)
800kN
System
Normal
Condition
New
Place of Origin
China
Shandong
Brand Name
Nadun
Year
2024
Voltage
220V/380V/440V/Optional
Dimension(L*W*H)
2400*1600*5300 mm
Weight (T)
25T
Model Number
YQ32-800T
Motor Power (kw)
44kw
Key Selling Points
Competitive Price
Warranty
1 Year
Applicable Industries
Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Showroom Location
None
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, Pump, Pressure vessel
Nominal force
8000 kn
Max.System pressure
25 MPA
Max.Open height
1500 mm
Effective table size
1600*1600 mm
Down speed
180 mm/s
Pressings speed
9~18 mm/s
Return speed
180 mm/s
Ejection cylinder force
1000 kn
Stroke of ejectioncylinder
300 mm
Product Certification
CE, ISO9001, SGS

Packing & Delivery

automatic 800 ton hydraulic pres for stainless steel water tanks making machine supplier

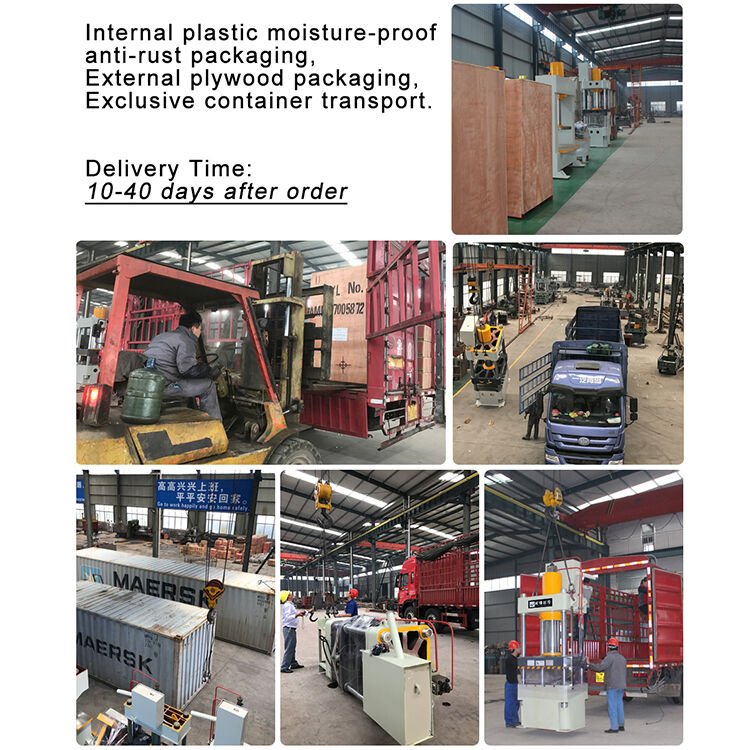

Internal plastic moisture-proof anti-rust packaging,External plywood packaging,Exclusive container transport.
Delivery Time:10-40 days after order.
