Customized hydraulic press

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

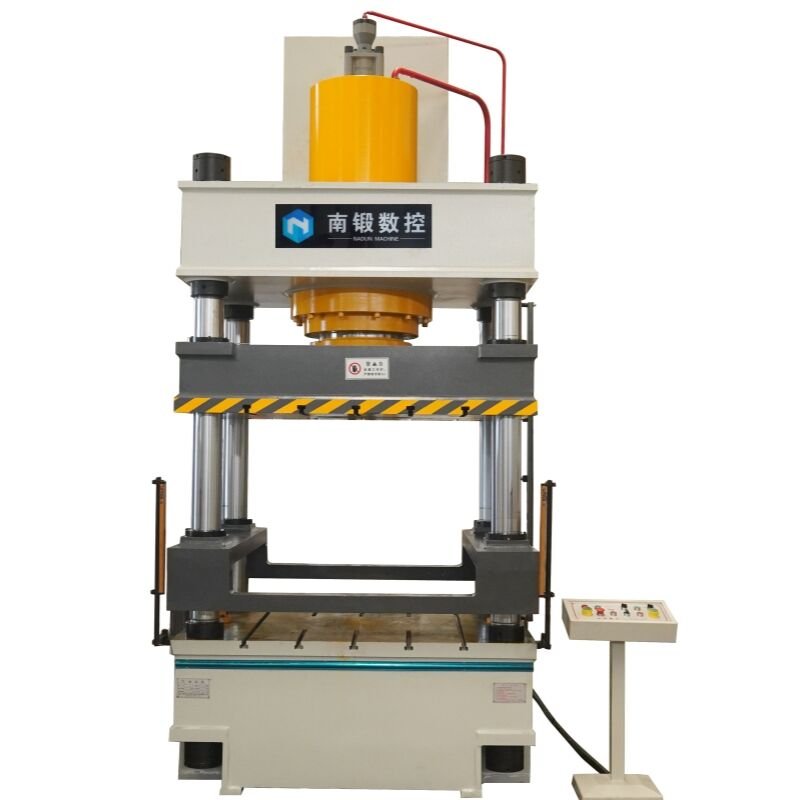

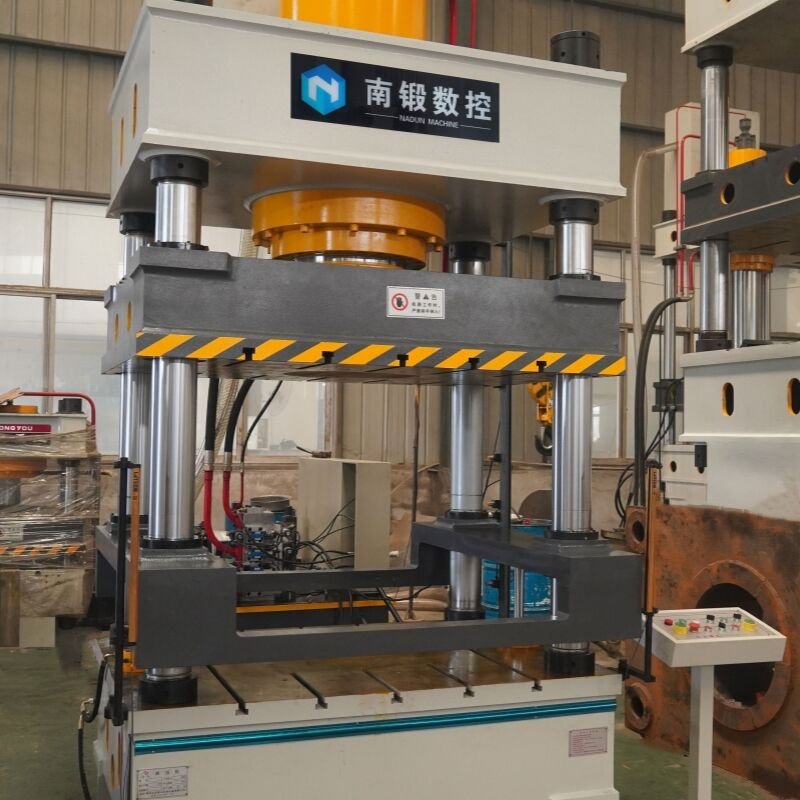

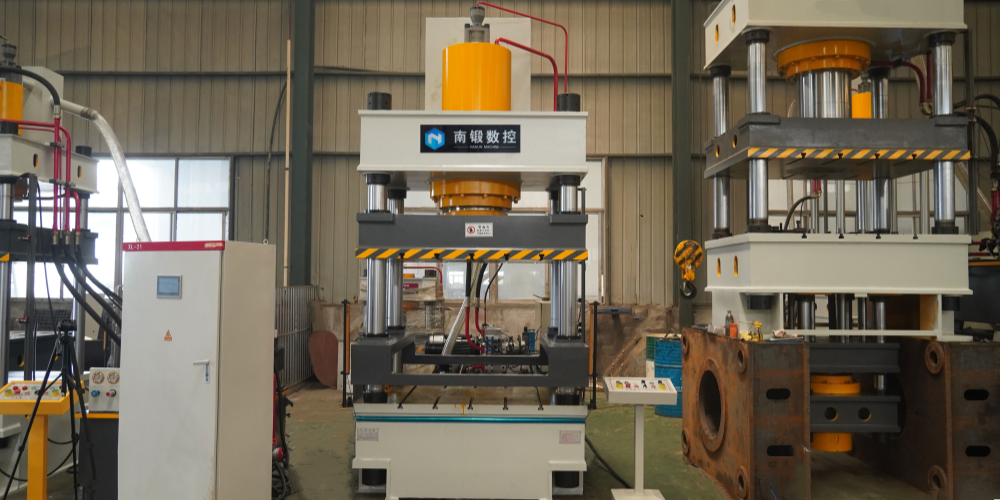

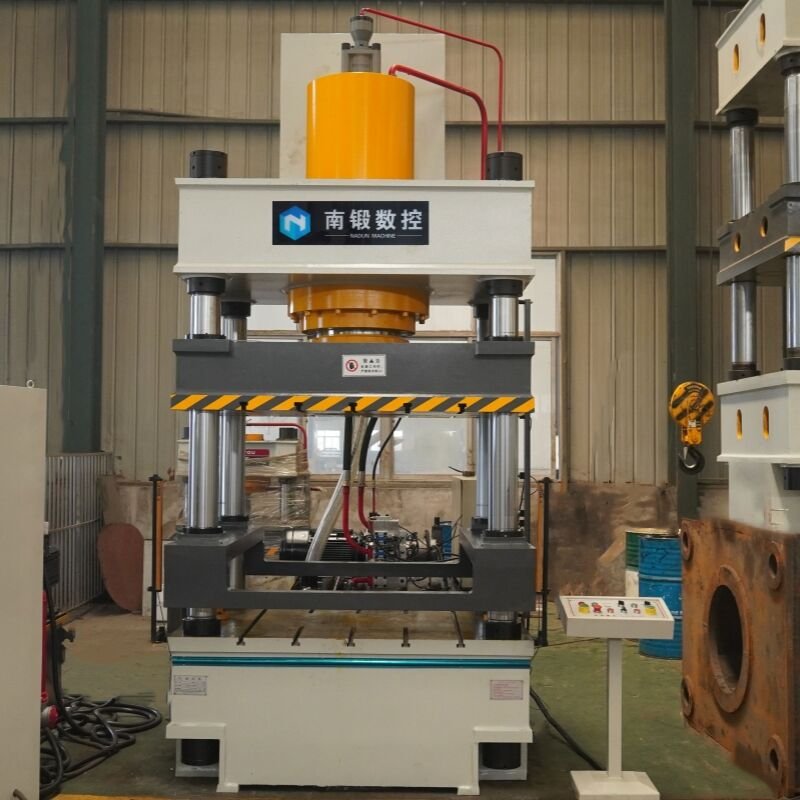

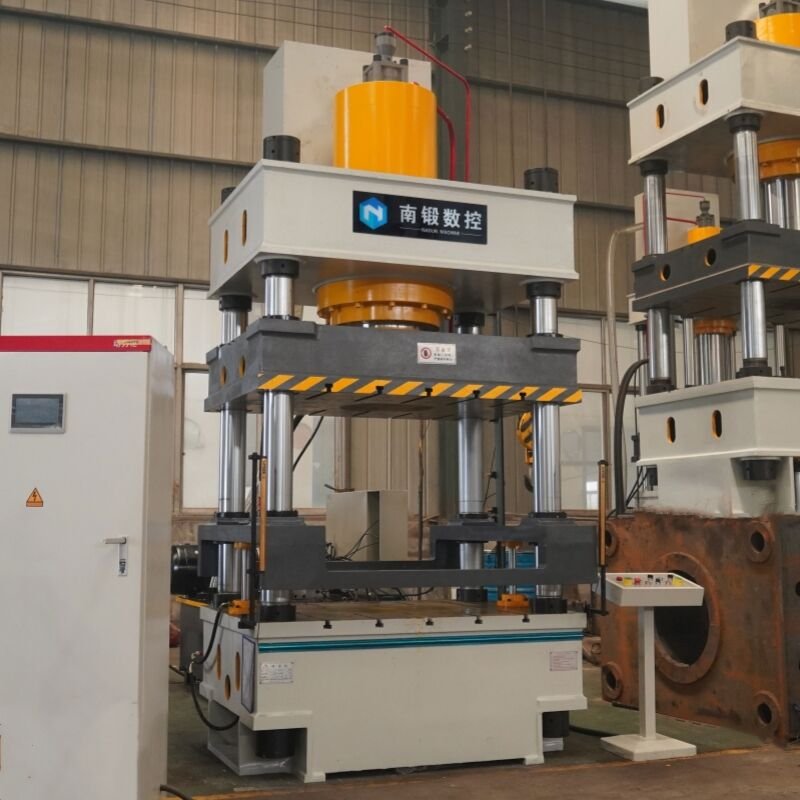

This is a customized hydraulic press with a specially designed four-beam structure on the fuselage. The electrical system is installed with a temperature controller, a PLC programmable controller, and a light curtain protection system. The equipment is used for hot pressing and forming of automotive parts. It is a high-precision hot pressing forming hydraulic press.

Parameters

YQ32 Technical Parameters
	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12
Return speed	mm/s	80	90	90	90	90	90	100
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300

	Unit	YQ32—400	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	1250	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	800	900	900	900	900	900	900
Effective table size	mm	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	100	150	150	180	180	180	190
Pressing speed	mm/s	5～11	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	100	180	200	180	220	200	220
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300	300

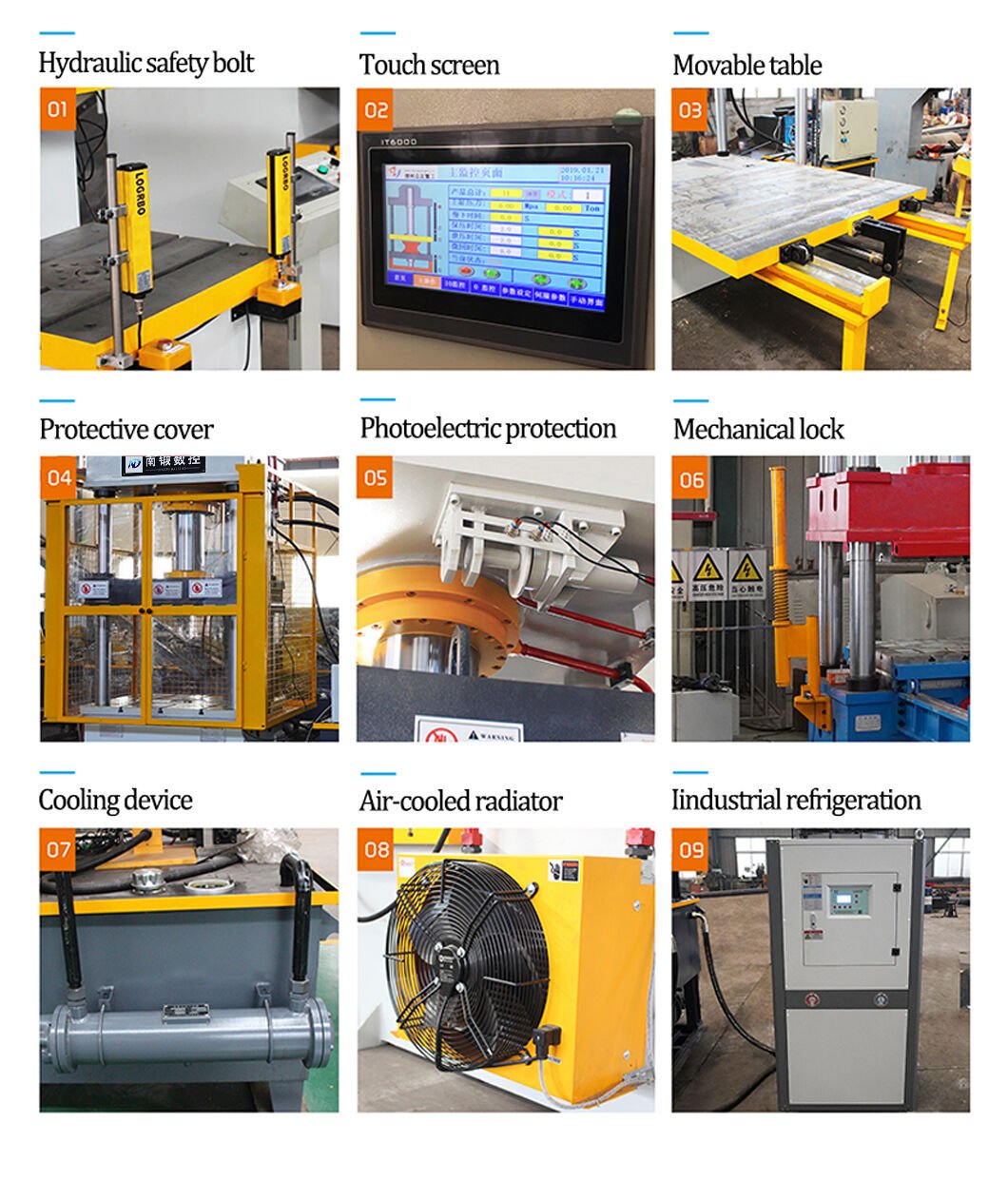

Equipment Details


Performance Characteristics

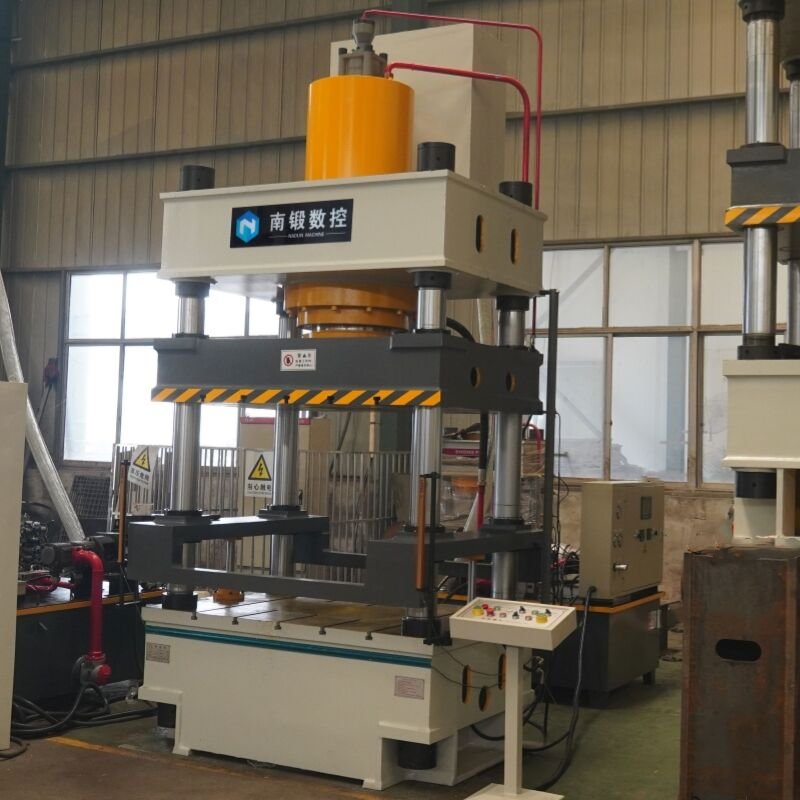

Adopting a three-beam and four-column structure, it has stable structure, is compatible with various molds, and has a large operating space.

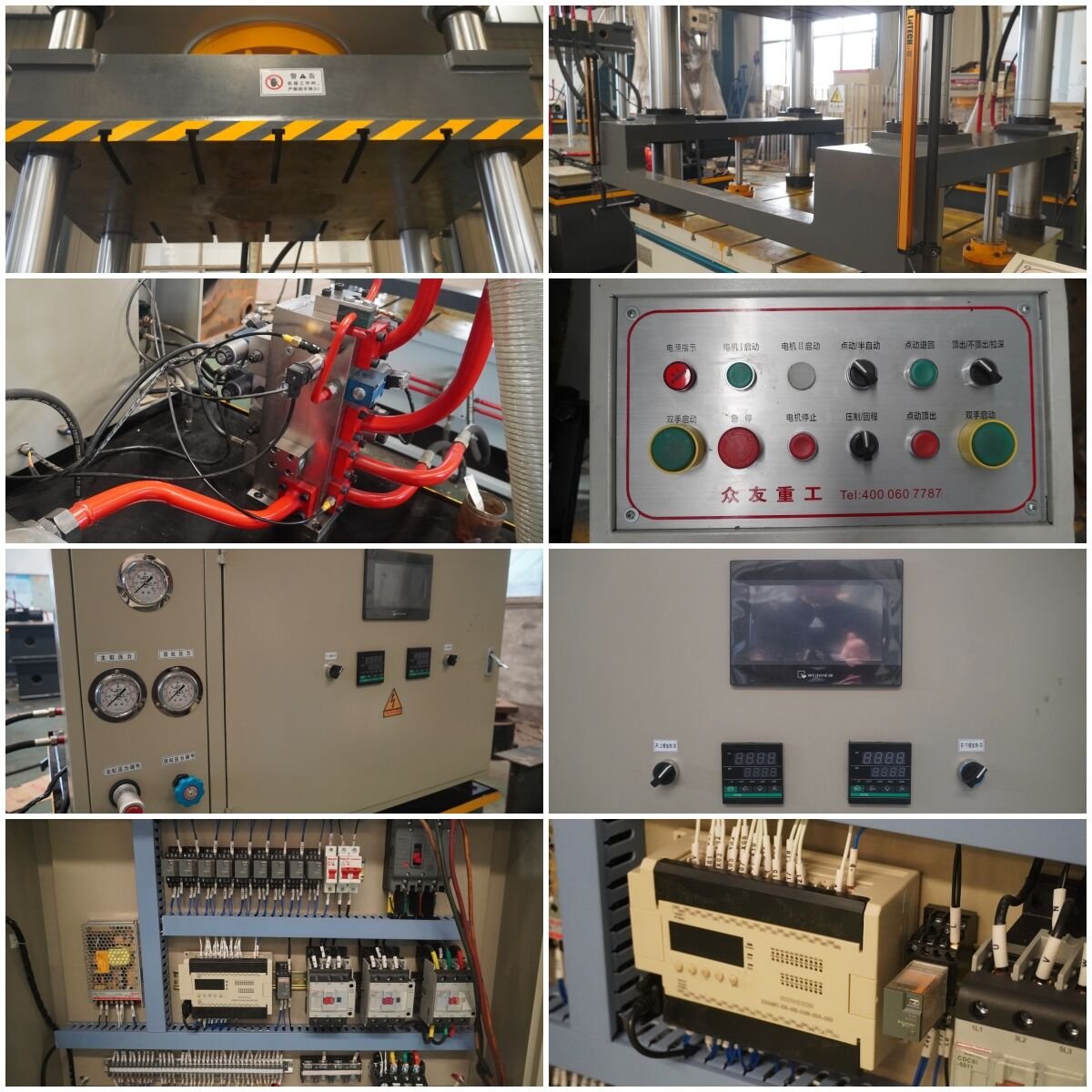

The hydraulic system adopts advanced cartridge integrated valves. The electrical system uses brand accessories, as well as a temperature control system and PLC, which can achieve precise control of mold temperature and high-precision pressing.
Controlled by touch screen and buttons, the operation is simple.
Stroke, pressure, holding time, and pressing program can be adjusted.
With scientific design, simple structure, and easy maintenance.

Scope Of Application

Suitable for pressing and molding of SMC composite materials, plastics, carbon fibers, fiberglass, resins, and wood shavings. Examples include brake parts ，SMC water tanks, fan covers, plastic pallets, wood shavings pallets, plastic sand tiles, carbon fiber automotive body panels, resin manhole covers, etc. Custom hydraulic presses and matching molding molds are also available upon request.
