Hydraulic press for deep drawing and molding of fire extinguisher cylinder body

Hydraulic press for deep drawing and molding of fire extinguisher cylinder body

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YD27-315T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

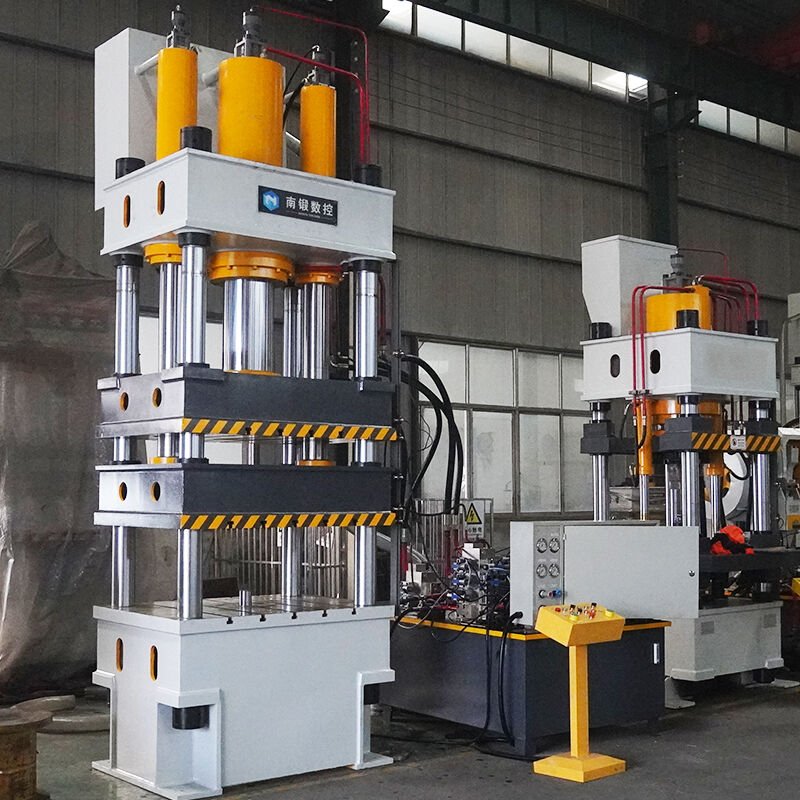

Product Overview

Hydraulic press for deep drawing and molding of fire extinguisher cylinder body (4).jpg

Fire extinguisher cylinder body stretch forming hydraulic press is the key equipment specially used for manufacturing metal cylinder body of fire extinguisher (usually steel or aluminum cylinder), through the hydraulic system driving the mold to stretch forming metal plate (such as cold rolled steel plate, aluminum alloy plate), to It is processed into a thin-walled cylinder structure that meets the dimensional requirements. This equipment is the core equipment of the fire equipment production line, which directly affects the strength, wall thickness uniformity and dimensional accuracy of the cylinder.

Parameters

YD27 Parameters	Unit	100T	200TA	200TB	315T	500T	630T	800T	1000T
Liquid Pressure	MPa	25	25	25	25	25	25	25	25
Effective Stroke of Slider	mm	600	600	700	800	900	900	900	900
Open Height	mm	900	900	1200	1250	1500	1500	1500	1500
Effective Area of Workbench	mm	750×700	800×800	1000×1000	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600
Free Fall Speed	mm/s	90	100	100	120	120	130	150	150
Pressing Speed	mm/s	17	14	14	11	18	18	18	18
Return Speed	mm/s	110	110	110	100	170	180	180	190
Motor Power	kW	7.5	7.5	7.5	22	37	44	60	74
Hydraulic Pad Ejecting Force	T	50	60	60	100	160	200	315	400
Ejecting Stroke	mm	300	300	300	300	300	300	300	300
Hydraulic Pad Area	mm	Φ500	Φ550	750×600	750×750	1050×1050	1200×1200	1200×1200	1200×1200

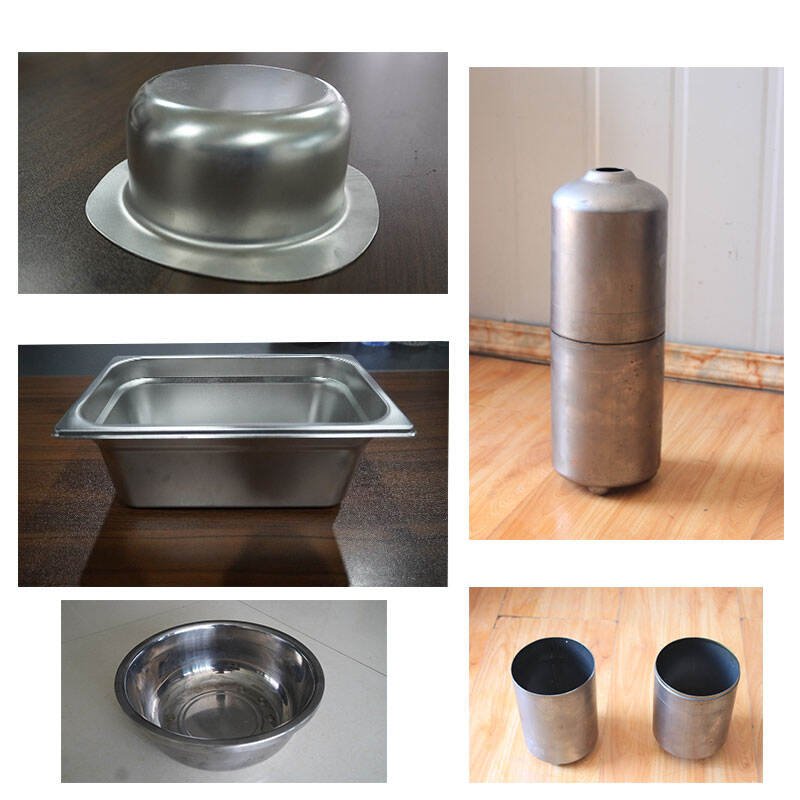

Pressed Product

Hydraulic press for deep drawing and molding of fire extinguisher cylinder body (7).jpg

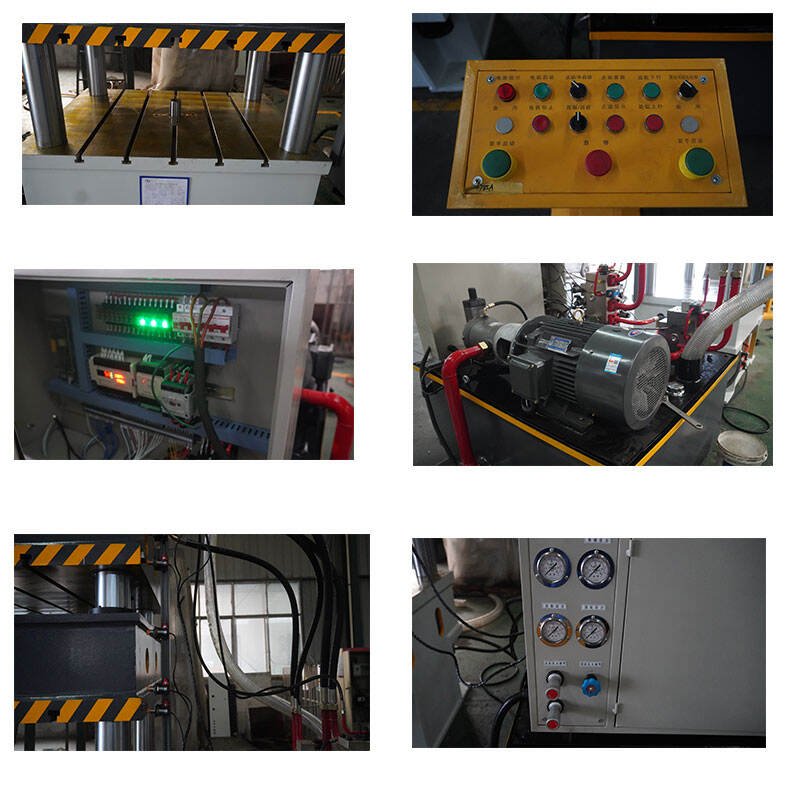

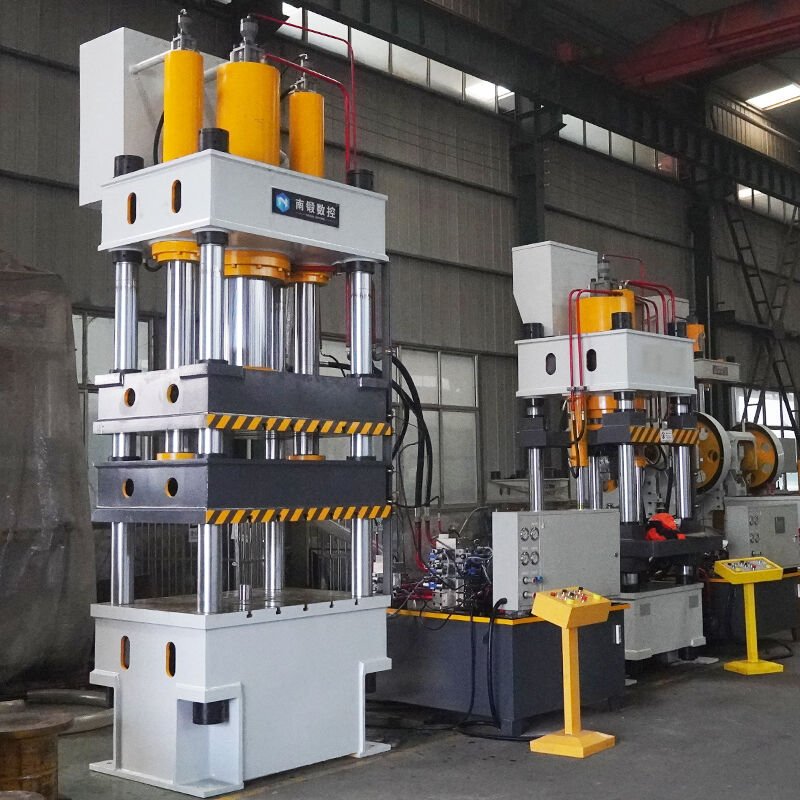

Equipment Details

Hydraulic press for deep drawing and molding of fire extinguisher cylinder body (8).jpg

Performance Characteristics

1. High-performance hydraulic system with large tonnage and precise control.
2. High precision mold system
3. Automation and efficiency semi-automatic/full-automatic mold quick mold change design.
4. safety and reliability multiple protection mechanism durable design.

Scope Of Application

Main applications: fire-fighting equipment factories (domestic/vehicle/industrial fire extinguishers), metal container manufacturers (e.g., preliminary processing of small gas cylinders and storage cylinders).

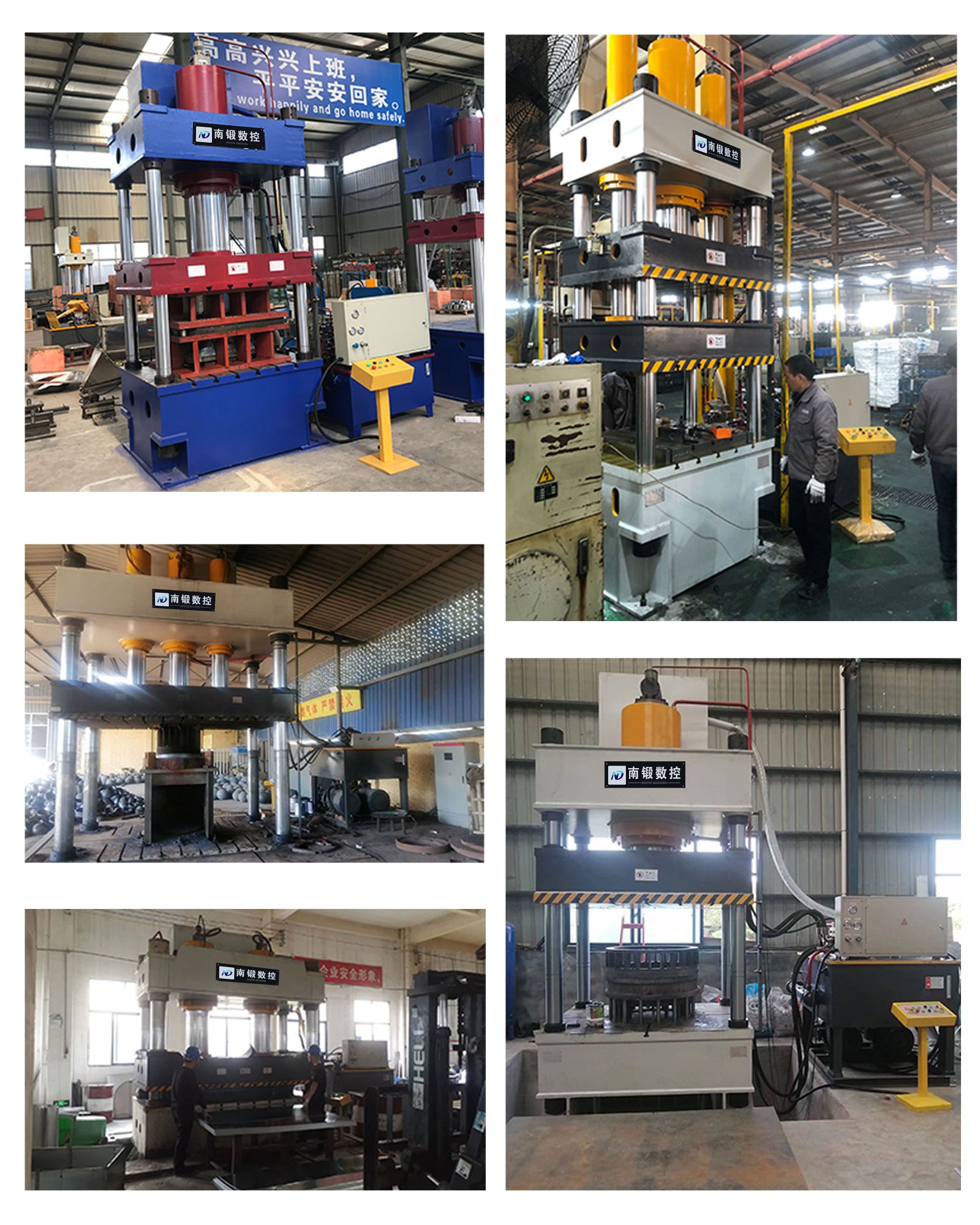

Application Cases

Stainless steel metal basin stretch molding hydraulic press (13).jpg

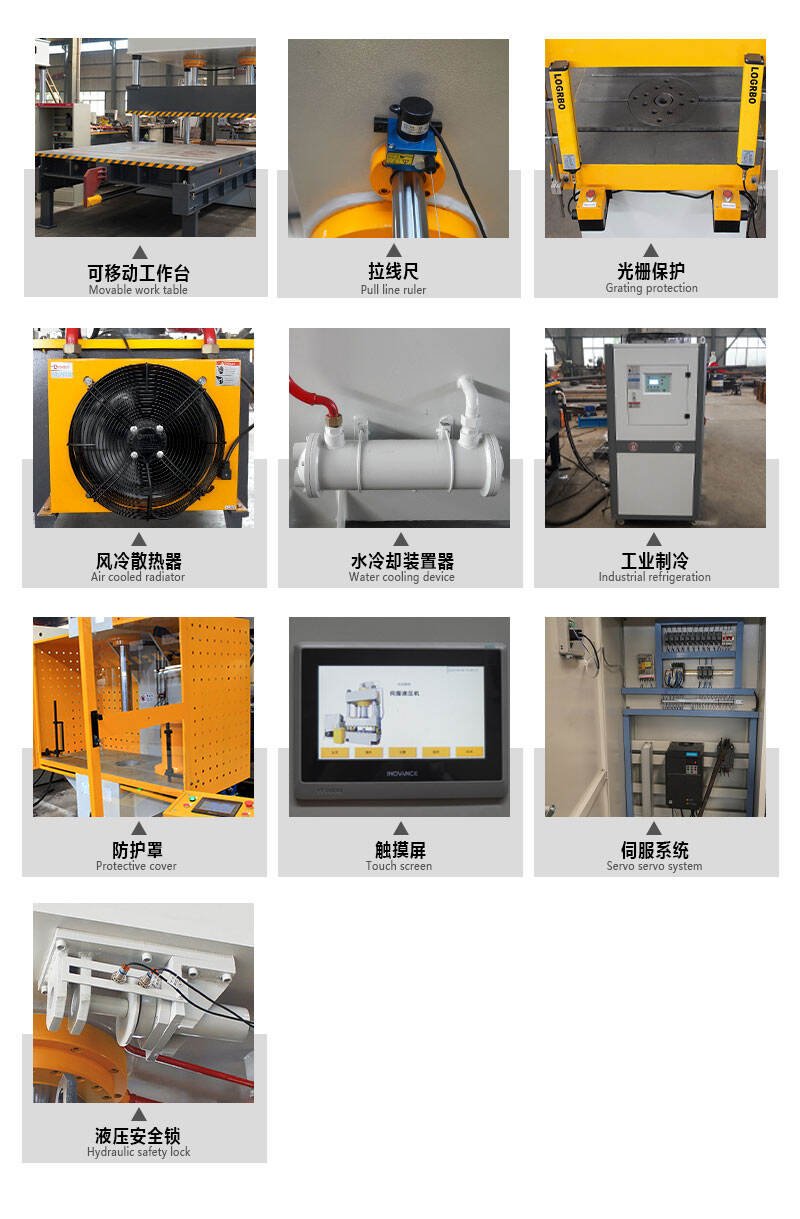

Optional Accessories

Hydraulic press for deep drawing and molding of fire extinguisher cylinder body111.jpg

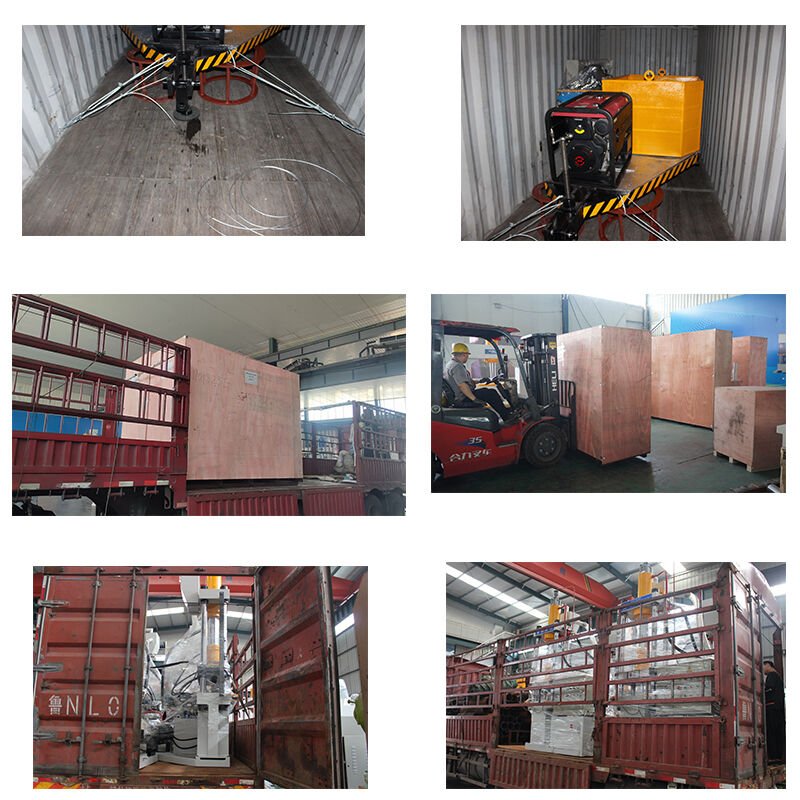

Packing & Shipping


After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
