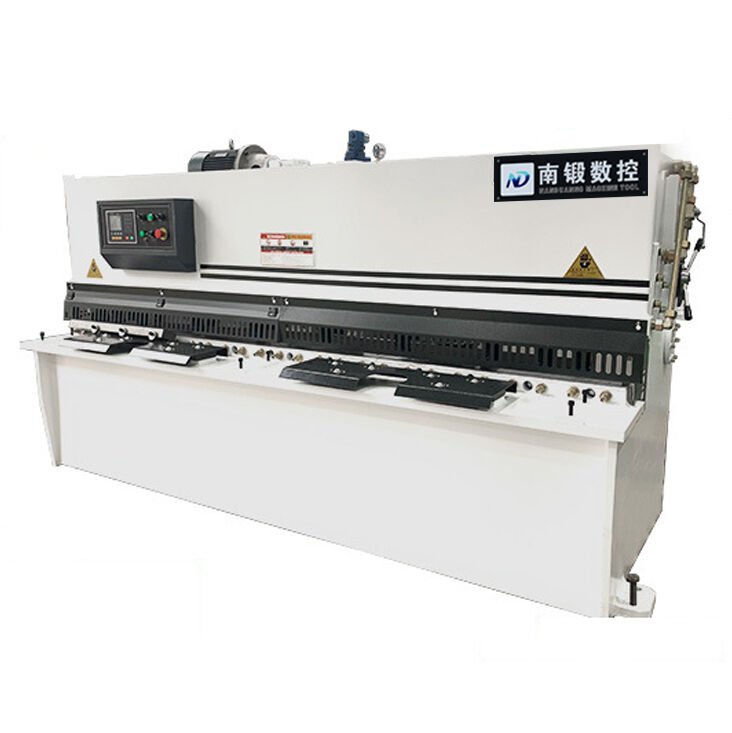

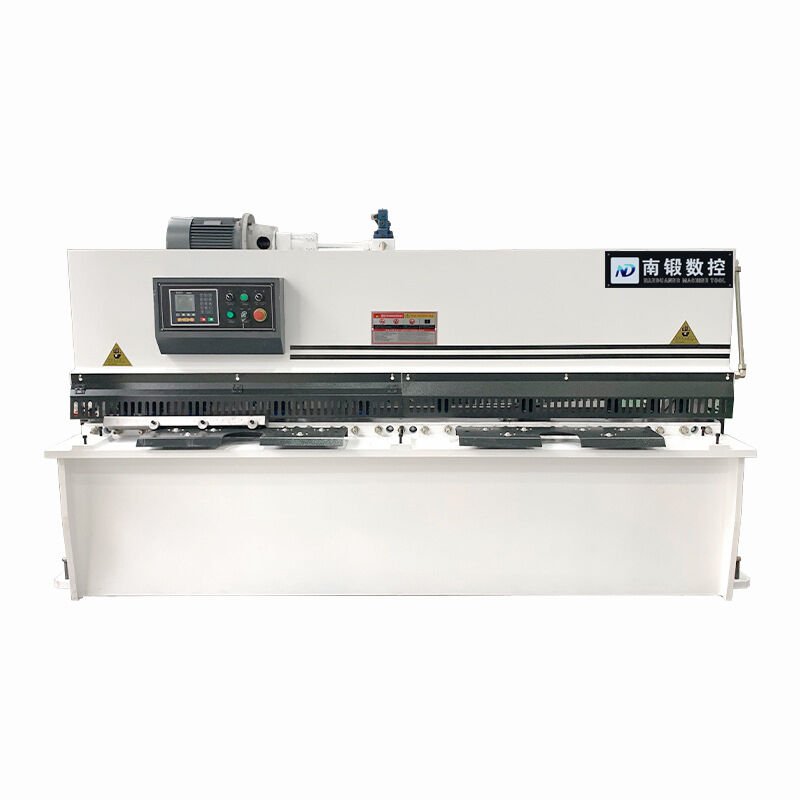

hydraulic swing beam shearing machine for less than 6mm sheet metal
hydraulic swing beam shearing machine for less than 6mm sheet metal
hydraulic swing beam shearing machine for less than 6mm sheet metal
hydraulic swing beam shearing machine for less than 6mm sheet metal

hydraulic swing beam shearing machine for less than 6mm sheet metal

Product Overview

hydraulic swing beam shearing machine for less than 6mm sheet metal details

Steel plate welded structure, hydraulic transmission, nitrogen cylinder return, convenient operation, reliable performance, beautiful appearance.
Edge adjustment signs, adjusts lightly and quickly, continuously variable transmission.
Lighting device on the line, and continuously variable adjustment of upper carrier itinerary.
Fence type safety protection device
Badk gauge adopts E21S NC, with low noise and high precision.
Option: MD11,E200PS,DAC 310T,DAC 360T,E30,CT 8G.

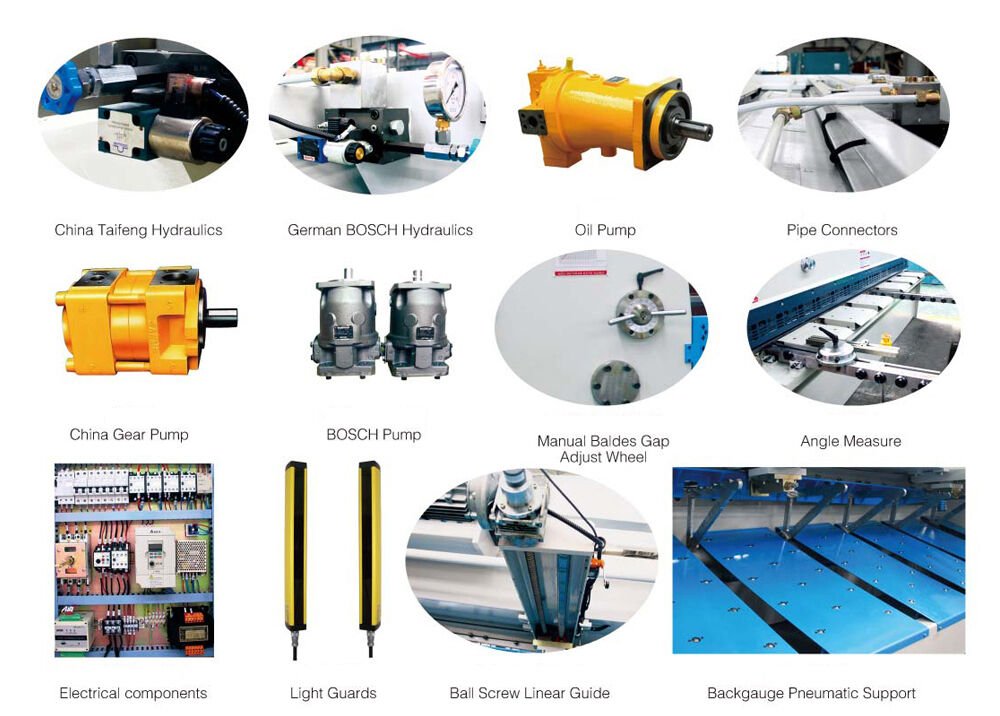

Details

hydraulic swing beam shearing machine for less than 6mm sheet metal details

Specification

Model Cutting Thickness Cutting Length Cutting Angel Material Strength Stopper Adjust Range Stroke Times Motor power Dimension
TYPE (mm) (mm) (°) (KN/CM) (mm) (times/minute) (kw) LxWxH(mm)
4×2500 4 2500 1°30' ≤450 20-500 16 5.5 3040×1550x1550
4×3200 4 3200 1°30' ≤450 20-500 13 5.5 3840x1550x1550
4x4000 4 4000 1°30' ≤450 20-600 10 5.5 4600×1700x1700
4x6000 4 6000 1°30' ≤450 20-800 5 7.5 6460x2100x3200
6×2500 6 2500 1°30' ≤450 20-500 15 7.5 3040x1710x1620
6×3200 6 3200 1°30' ≤450 20-500 12 7.5 3840×1710×1620
6×4000 6 4000 1°30' ≤450 20-600 9 7.5 4620x1850x1700
6x5000 6 5000 1°30' ≤450 20-600 8 7.5 5410×1710×1620
6×6000 6 6000 1°30' ≤450 20-800 5 11 6480×2100×2300
8×2500 8 2500 1°30' ≤450 20-500 11 7.5 3040x1700x1700
8×3200 8 3200 1°30' ≤450 20-500 8 7.5 3860x1700x1700
8x4000 8 4000 1°30' ≤450 20-600 8 7.5 4640x1700v1700
8x5000 8 5000 1°30' ≤450 20-600 8 7.5 5400x2400×2000
8x6000 8 6000 1°30' ≤450 20-800 8 11 6480×2100×2350
10×2500 10 2500 1°30' ≤450 20-500 10 11 3040x1800x1700
10x3200 10 3200 1°30' ≤450 20-500 10 11 3860×2000x1700
10x4000 10 4000 1°30' ≤450 20-600 10 11 4650x2100×2000
10x6000 10 6000 1°30' ≤450 20-800 10 15 6500×2100×2300
12×2500 12 2500 ≤450 20-600 12 18.5 3140×2050×2000
12×3200 12 3200 ≤450 20-600 10 18.5 3880×2150×2000
12×4000 12 4000 ≤450 20-600 10 18.5 4680×2150×2100
12x5000 12 5000 ≤450 20-600 6 18.5 3245x1900x1900
12x6000 12 6000 ≤450 20-1000 5 18.5 6900×2600×2700
16×2500 16 2500 2°30' ≤450 20-600 10 22 3140x2150x2000
16×3200 16 3200 2°30' ≤450 20-600 10 22 3880×2150×2000
16×4000 16 4000 2°30' ≤450 20-800 10 22 4650x2150×2200
16×5000 16 5000 ≤450 20-1000 6 22 5900×2600×2700
16×6000 16 6000 ≤450 20-1000 5 22 6900x2700×2700
20×2500 20 2500 ≤450 20-800 8 22 3440×2300x2500
20x3200 20 3200 ≤450 20-800 8 22 4150x2350×2700
20×4000 20 4000 ≤450 20-1000 5 22 4850x2600×2400
20×6000 20 6000 ≤450 20-1000 4 30 6700x3000x3000
25×2500 25 2500 ≤450 20-1000 8 37 3200×2700×2900
25×3200 25 3200 ≤450 20-1000 5 37 4200×2400x2500
30×2500 30 2500 ≤450 20-1000 4 37 3300×2900x3000
30×3200 30 3200 3°30' ≤450 20-1000 4 40 4200×2500×2600
40×2500 40 2500 ≤450 20-1000 3 55 3200×3300×3200
40×3200 40 3200 ≤450 20-1000 3 55 4300x3300×3000

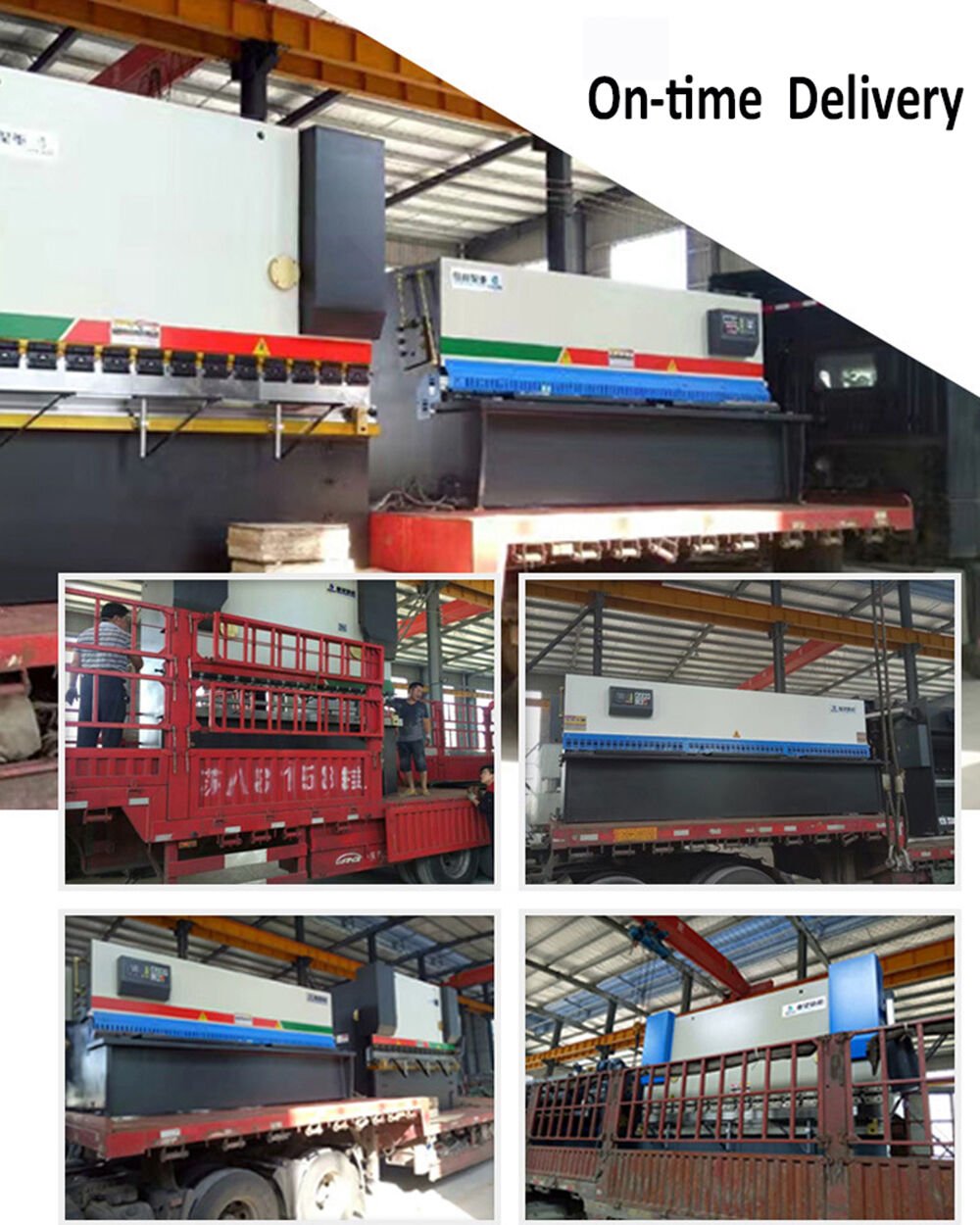

Packaging & Shipping

hydraulic swing beam shearing machine for less than 6mm sheet metal supplier

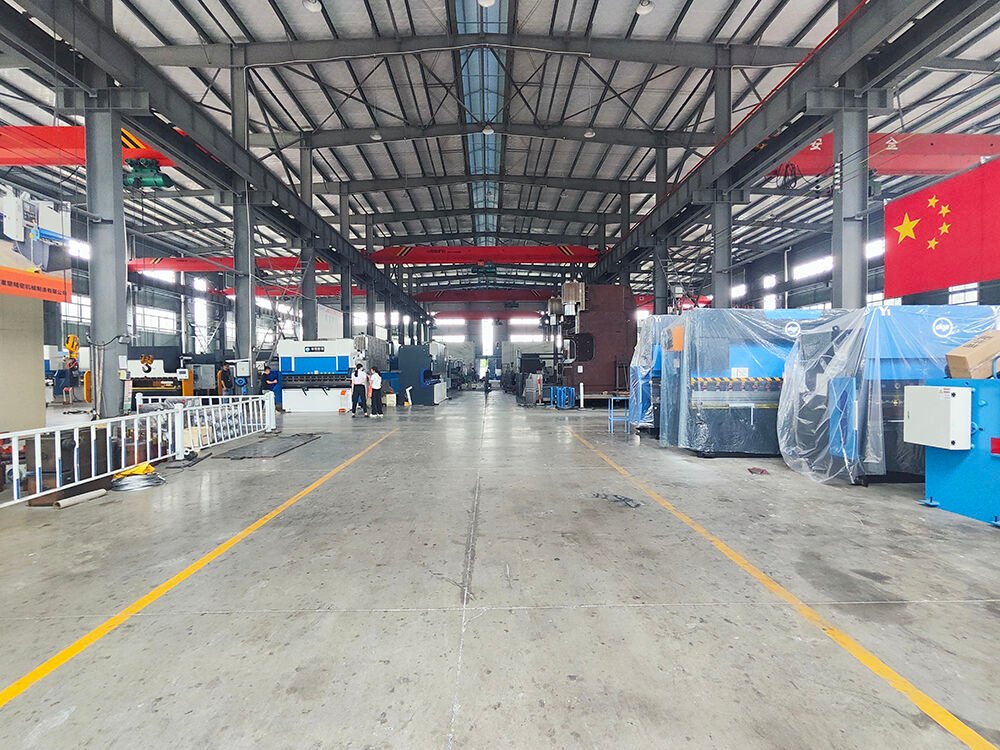

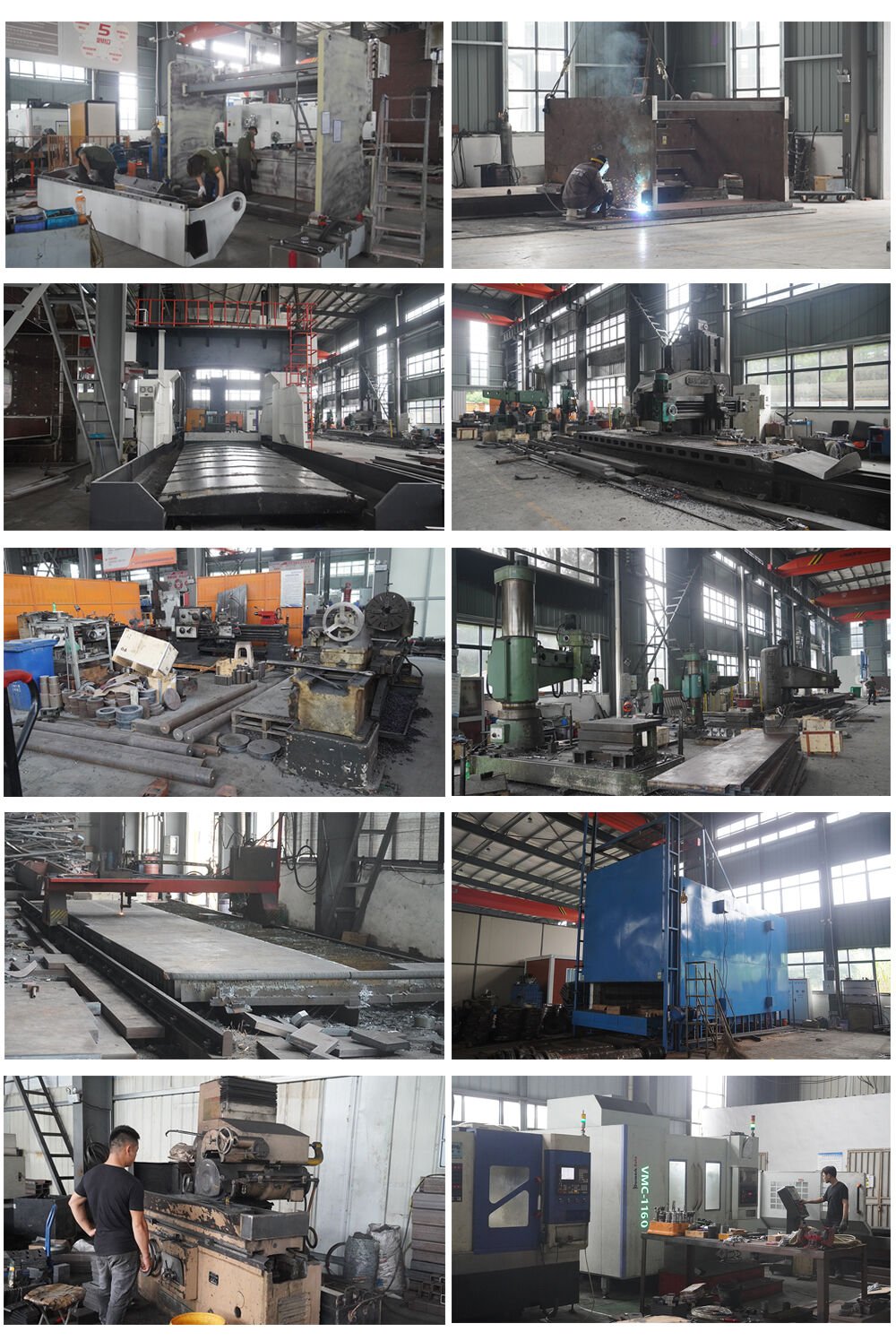

Company profile

hydraulic swing beam shearing machine for less than 6mm sheet metal supplier

hydraulic swing beam shearing machine for less than 6mm sheet metal details

At Nadun Machinery Manufacture Co., Ltd., we transcend conventional manufacturing. Our focus extends beyond hydraulic presses, punch presses, shearing machines, and bending machines. We lead in sustainable practices, education, and humanitarian endeavors. Our diverse product range serves automotive, home appliance, and hardware industries while promoting eco-friendly solutions.

Driven by innovation and excellence, our dedicated team pioneers technological advancements while prioritizing environmental responsibility. Through rigorous research and development, we integrate energy-efficient technologies to reduce carbon footprints and enhance performance.

Our commitment to surpassing industry standards is unwavering. Each machine undergoes meticulous quality control to ensure reliability and high performance, tailored to meet individual requirements.

hydraulic swing beam shearing machine for less than 6mm sheet metal details

FAQ

1. Could you furnish me with the necessary documentation?
Absolutely, we offer a range of documents such as Certificates of Analysis/Conformance, insurance details, origin certificates, and other vital export paperwork.

2. What's the typical lead time?
For samples, it's around 30 days, while mass production usually takes between 30 to 60 days from receipt of the deposit. Our lead times commence upon deposit receipt and final product approval. If our lead times don't align with your schedule, please discuss with your designated sales representative. We aim to accommodate your needs whenever possible.

3. Which payment methods do you support?
We accept payments via bank transfer, Western Union, or PayPal. Our standard terms involve a 30% deposit upfront, with the remaining 70% balance payable upon presentation of the B/L copy.

4. What are the product warranty terms?
Our commitment covers both materials and workmanship. Even outside the warranty period, we strive to address and resolve all customer concerns for complete satisfaction.

5. Can you ensure the safe delivery of products?
Certainly, we employ high-quality export packaging for secure delivery. Specialized packing is used for hazardous goods, and validated cold storage shippers are utilized for temperature-sensitive items. However, specific packaging needs may result in additional charges.

6. How are shipping costs calculated?
Shipping expenses depend on the chosen delivery method. Express delivery is faster but more expensive, while sea freight is preferable for larger quantities. We can provide detailed freight rates once we have specific order details like quantity, weight, and preferred shipping method. Feel free to contact us for further details.
