4x3200 shearing machine

Home >  Products >  Shearing machine >  4x3200 shearing machine

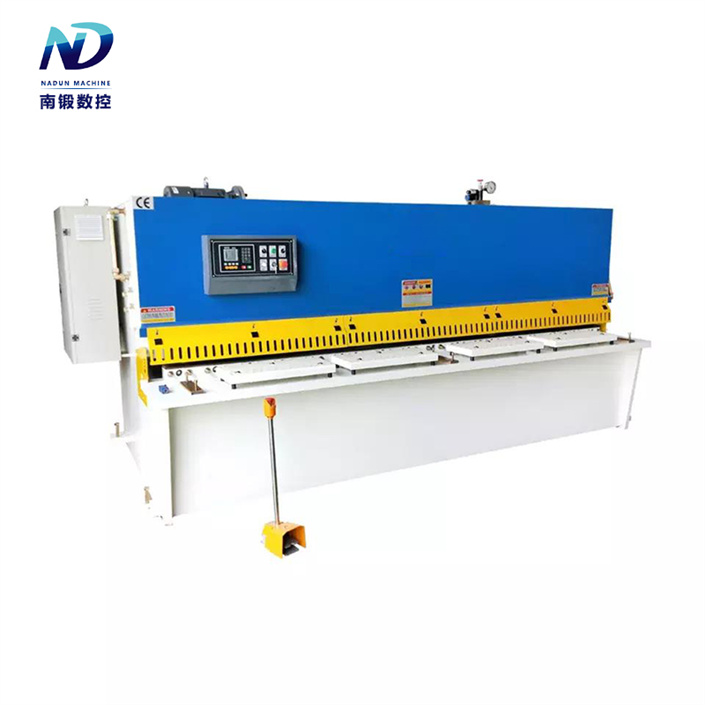

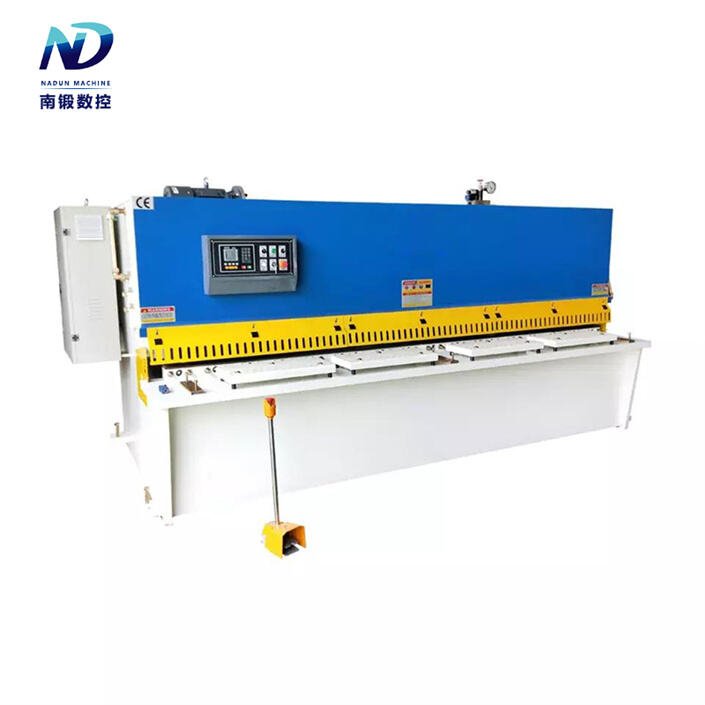

Hydraulic swing shear 4*3200, a simple plate cutting machine
Hydraulic swing shear 4*3200, a simple plate cutting machine

Hydraulic swing shear 4*3200, a simple plate cutting machine

Product Overview

Place of Origin:Tengzhou City, Zaozhuang City, Shandong Province, China
Brand Name:Nadun
Model Number:QC12Y-4*3200
Certification:CE,ISO 9001
Minimum Order Quantity:1
Price:5500
Packaging Details:Plastic Film or Wooden. Container Transportation.
Delivery Time:Within 30 to 60 days after ordering.
Payment Terms:30% deposit paid in advance, with the remaining 70% balance settled after submitting the bill of lading copy.
Supply Ability:50 sets/month


Quick Detail:

The Hydraulic swing shear 4*3200, also referred to as a 4-meter hydraulic cutting machine or a 3200mm swing beam shear, is a straightforward and reliable plate cutting machine designed for simplicity and durability.

This machine is commonly used in metal fabrication shops, steel service centers, and other industrial settings where the need for cutting metal plates arises. It is particularly suitable for cutting mild steel, stainless steel, and other sheet materials into various sizes and shapes.

The core specifications of the Hydraulic swing shear 4*3200 are as follows:

Model: 4×3200

Cutting Thickness: 4 mm

Cutting Length: 3200 mm

Cutting Angle: 1°30'

Material Strength:450 KN/CM

Stopper Adjust Range: 20-500 mm

Stroke Times: 13 times/minute

Motor Power: 5.5 kw

Dimension: 3840x1550x1550 mm (LxWxH)


Description:

The Hydraulic Swing Shear 4*3200 is a robust and reliable plate cutting machine designed for the mechanical industry. This machine offers a simple yet efficient solution for cutting metal plates with a thickness of up to 4mm and a width of 3200mm.

Equipped with a powerful hydraulic system, the Hydraulic Swing Shear 4*3200 provides smooth and precise cutting action. The hydraulic mechanism ensures consistent force distribution across the cutting blade, resulting in clean and accurate cuts. This machine is designed to handle various materials commonly used in the mechanical industry, including mild steel, stainless steel, and aluminum.

One of the key features of the Hydraulic Swing Shear 4*3200 is its user-friendly design. The machine is equipped with an easy-to-operate control panel, allowing operators to quickly adjust cutting parameters and settings. Additionally, the machine's safety features, such as emergency stop buttons and safety guards, ensure a safe working environment for operators.

The Hydraulic Swing Shear 4*3200 is built to withstand the demands of industrial use. Its robust construction and high-quality components ensure durability and reliability, even in the most challenging environments. The machine's design also allows for easy maintenance and blade replacement, minimizing downtime and maximizing productivity.


Applications:

The Hydraulic Swing Shear 4*3200 is a versatile machine that finds applications in various industries, including:

1. Metal Fabrication: This machine is widely used in metal fabrication shops for cutting sheets, plates, and other metal components. Its robust design and powerful cutting action make it suitable for handling thick and tough materials.

2. Automotive Industry: In the automotive industry, the Hydraulic Swing Shear 4*3200 is utilized for cutting metal parts and components used in vehicle manufacturing. Its efficiency and precision contribute to the production of high-quality automotive products.

3. Shipbuilding and Heavy Equipment: The machine is suitable for cutting metal plates and components used in shipbuilding and the manufacturing of heavy equipment. Its powerful hydraulic system ensures smooth and accurate cuts, even with thick materials.

4. Construction Industry: In the construction industry, the Hydraulic Swing Shear 4*3200 is used for cutting metal sheets and plates used in building structures, such as roofing, cladding, and flooring. Its wide cutting width allows for efficient processing of large sheets, reducing material waste.

5. General Engineering: The machine finds applications in general engineering workshops for cutting various metal components and parts. Its versatility and reliability make it a valuable asset for diverse engineering applications.

6. Aerospace and Defense: The Hydraulic Swing Shear 4*3200 can be used in the aerospace and defense sectors for cutting metal components used in aircraft, spacecraft, and military equipment. Its precision cutting capabilities ensure the production of high-precision parts that meet stringent industry standards.


Specifications:

Model

Cutting Thickness

Cutting Length

Cutting Angel

Material Strength

Stopper Adjust Range

Stroke Times

Motor power

Dimension

TYPE

(mm)

(mm)

(°)

(KN/CM)

(mm)

(times/minute)

(kw)

LxWxH(mm)

4×2500

4

2500

1°30'

≤450

20-500

16

5.5

3040×1550x1550

4×3200

4

3200

1°30'

≤450

20-500

13

5.5

3840x1550x1550

4x4000

4

4000

1°30'

≤450

20-600

10

5.5

4600×1700x1700

4x6000

4

6000

1°30'

≤450

20-800

5

7.5

6460x2100x3200

6×2500

6

2500

1°30'

≤450

20-500

15

7.5

3040x1710x1620

6×3200

6

3200

1°30'

≤450

20-500

12

7.5

3840×1710×1620

6×4000

6

4000

1°30'

≤450

20-600

9

7.5

4620x1850x1700

6x5000

6

5000

1°30'

≤450

20-600

8

7.5

5410×1710×1620

6×6000

6

6000

1°30°

≤450

20-800

5

11

6480×2100×2300

8×2500

8

2500

1°30'

≤450

20-500

11

7.5

3040x1700x1700

8×3200

8

3200

1°30'

≤450

20-500

8

7.5

3860x1700x1700

8x4000

8

4000

1°30'

≤450

20-600

8

7.5

4640x1700v1700

8x5000

8

5000

1°30'

≤450

20-600

8

7.5

5400x2400×2000

8x6000

8

6000

1°30°

≤450

20-800

8

11

6480×2100×2350

10×2500

10

2500

1°30'

≤450

20-500

10

11

3040x1800x1700

10x3200

10

3200

130

≤450

20-500

10

11

3860×2000x1700

10x4000

10

4000

1°30'

≤450

20-600

10

11

4650x2100×2000

10x6000

10

6000

1°30'

≤450

20-800

10

15

6500×2100×2300

12×2500

12

2500

≤450

20-600

12

18.5

3140×2050×2000

12×3200

12

3200

≤450

20-600

10

18.5

3880×2150×2000

12×4000

12

4000

≤450

20-600

10

18.5

4680×2150×2100

12x5000

12

5000

≤450

20-600

6

18.5

3245x1900x1900

12x6000

12

6000

≤450

20-1000

5

18.5

6900×2600×2700

16×2500

16

2500

2°30°

≤450

20-600

10

18.5

3140x2150x2000

16×3200

16

3200

2°30'

≤450

20-600

10

18.5

3880×2150×2000

16×4000

16

4000

2°30'

≤450

20-800

10

18.5

4650x2150×2200

16×5000

16

5000

≤450

20-1000

6

18.5

5900×2600×2700

16×6000

16

6000

≤450

20-1000

5

22

6900x2700×2700

20×2500

20

2500

≤450

20-800

8

22

3440×2300x2500

20x3200

20

3200

≤450

20-800

8

22

4150x2350×2700

20×4000

20

4000

≤450

20-1000

5

22

4850x2600×2400

20×6000

20

6000

≤450

20-1000

4

22

6700x3000x3000

25×2500

25

2500

≤450

20-1000

8

37

3200×2700×2900

25×3200

25

3200

≤450

20-1000

5

37

4200×2400x2500

30×2500

30

2500

≤450

20-1000

4

37

3300×2900x3000

30×3200

30

3200

3°30'

≤450

20-1000

4

40

4200×2500×2600

40×2500

40

2500

≤450

20-1000

3

75

3200×3300×3200

40×3200

40

3200

≤450

20-1000

3

90

4300x3300×3000



Competitive Advantage:

The Hydraulic Swing Shear 4*3200 offers several competitive advantages that set it apart from other plate cutting machines in the market:

1. High Cutting Capacity: With the ability to cut metal plates up to 4mm thick and 3200mm wide, the Hydraulic Swing Shear 4*3200 is suitable for a wide range of applications. This high cutting capacity makes it a versatile choice for various industries.

2. Powerful Hydraulic System: Equipped with a robust hydraulic system, this machine ensures smooth and precise cutting action. The hydraulic mechanism provides consistent force distribution, resulting in clean and accurate cuts even with thick and tough materials.

3. User-Friendly Design: The Hydraulic Swing Shear 4*3200 is designed with user-friendly features, such as an easy-to-operate control panel and clear operational instructions. This makes it easy for operators to learn and operate the machine, reducing the learning curve and increasing productivity.

4. Robust Construction: Built with high-quality materials and components, the Hydraulic Swing Shear 4*3200 ensures durability and reliability. Its robust design allows it to withstand the demands of industrial use, even in challenging environments.

5. Easy Maintenance and Blade Replacement: The machine's design allows for easy maintenance and blade replacement, minimizing downtime and maximizing productivity. The quick-release blade system enables operators to change blades efficiently, reducing the overall maintenance time.

6. Safety Features: The Hydraulic Swing Shear 4*3200 is equipped with safety features such as emergency stop buttons and safety guards. These features ensure a safe working environment for operators, reducing the risk of accidents and injuries.

7. Cost-Effective: This machine offers a cost-effective solution for plate cutting needs. Its affordable price, combined with its efficient operation and low maintenance requirements, provides exceptional value for money.


Tag:

1. May I obtain the required documentation?

Certainly, we provide various documents including Certificates of Analysis/Conformance, insurance particulars, origin certificates, and other essential export paperwork.

2. What's the usual lead time?

For samples, it's approximately 30 days, and for mass production, it typically ranges between 30 to 60 days from when the deposit is received. Our lead times start upon deposit receipt and final product approval. If our lead times don't match your schedule, please consult your assigned sales representative. We strive to accommodate your requirements whenever feasible.

3. What payment methods do you accept?

We receive payments through bank transfer, Western Union, or PayPal. Our standard terms involve a 30% upfront deposit, with the remaining 70% balance payable upon presentation of the B/L copy.

4. What are the terms of product warranty?

Our commitment encompasses both materials and workmanship. Even beyond the warranty period, we endeavor to address and resolve all customer concerns to ensure complete satisfaction.

5. Can you guarantee the safe delivery of products?

Certainly, we utilize high-quality export packaging for secure delivery. Specialized packing is utilized for hazardous goods, and validated cold storage shippers are employed for temperature-sensitive items. However, specific packaging requirements may result in additional charges.

6. How are shipping costs determined?

Shipping expenses are contingent upon the selected delivery method. Express delivery is quicker but more costly, while sea freight is preferable for larger quantities. Detailed freight rates can be provided once we have specific order details such as quantity, weight, and preferred shipping method. Please don't hesitate to reach out to us for further clarification.
