shearing cutting machine for thin metal sheet

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

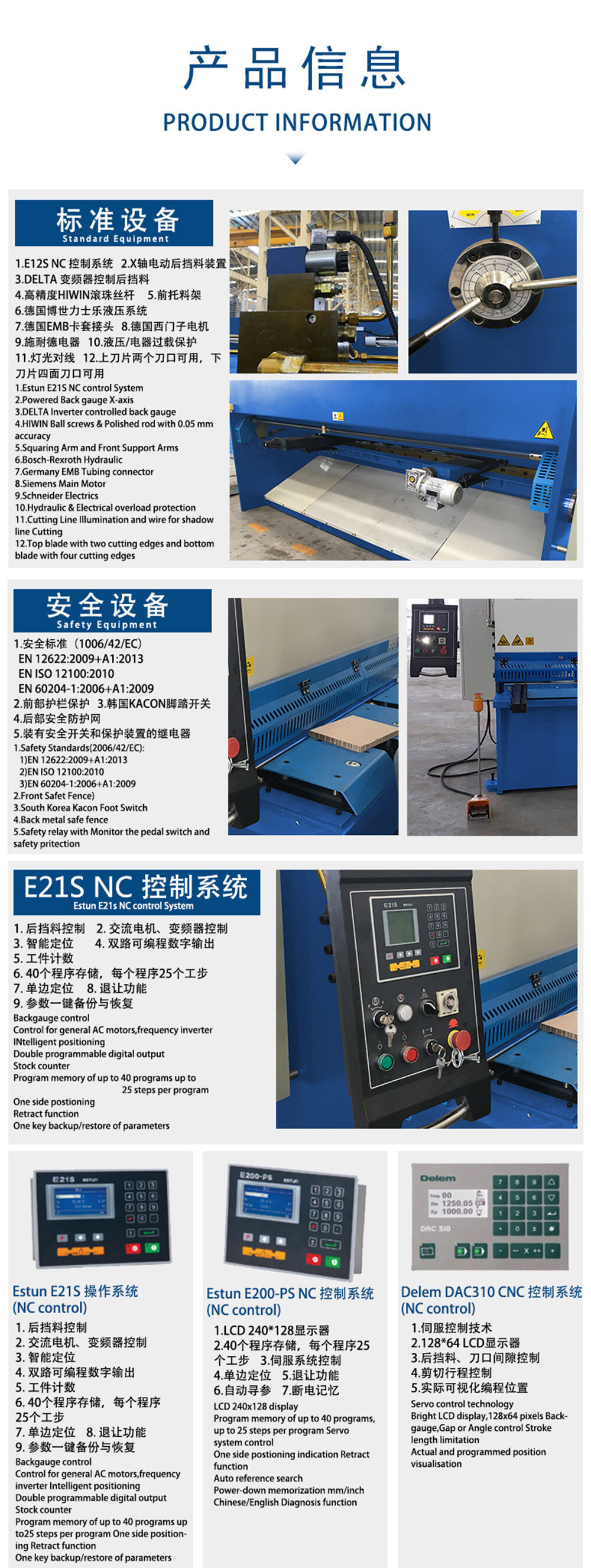

Product Overview

Main Features

1.The whole machine is welded with steel plates and driven by hydraulic system with accumulator return, making it easy to operate, reliable in performance, and aesthetically pleasing. The machine comes with a digital control system as a standard feature.

2.The blade gap adjustment is indicated by a signboard, allowing for easy and quick adjustment. There are also light alignment devices and cutting stroke control devices, which make adjustments convenient and fast.

3.The worktable is equipped with rolling material support balls to reduce scratching on the sheet metal and frictional resistance.

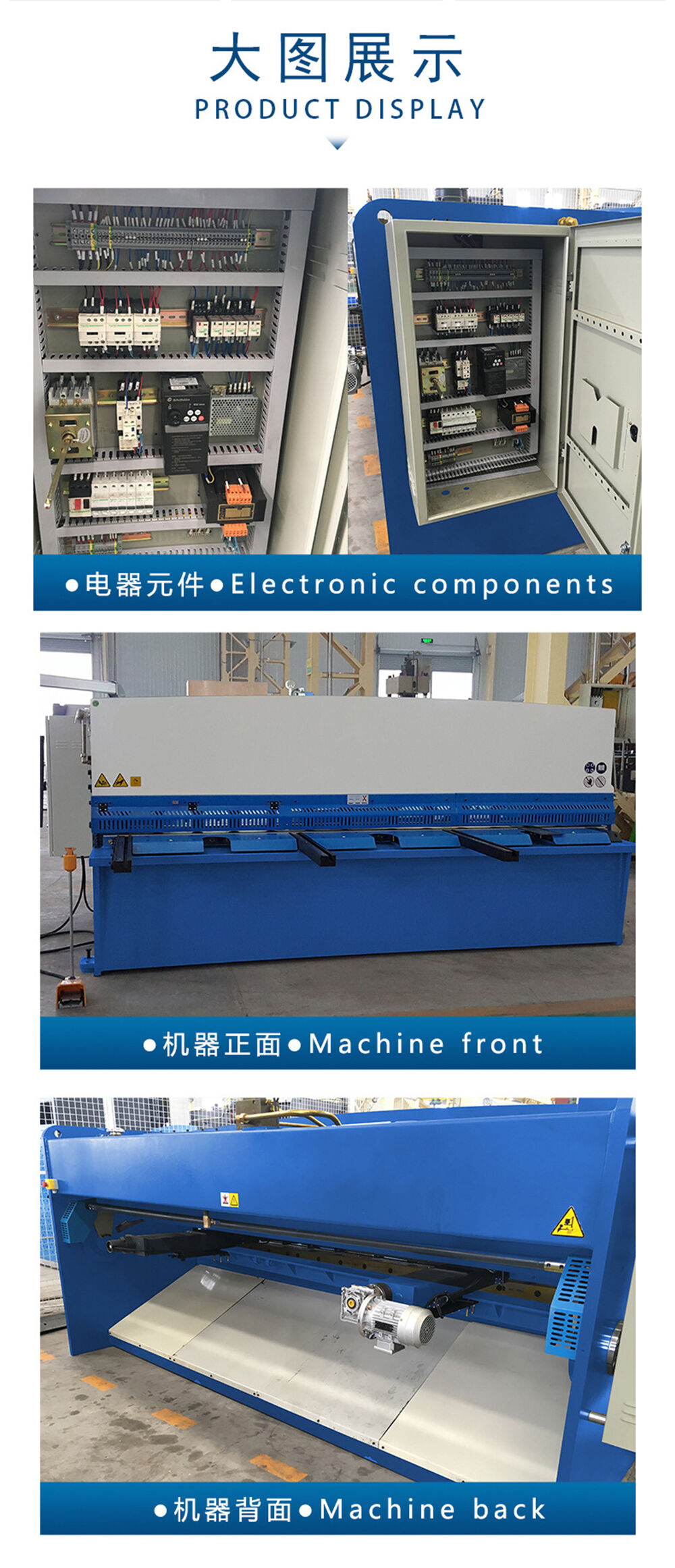

shearing cutting machine for thin metal sheet details

Details

Parameters

Model	Cutting Thickness	Cutting Length	Cutting Angel	Material Strength	Stopper Adjust Range	Stroke Times	Motor power	Dimension
TYPE	(mm)	(mm)	(°)	(KN/CM)	(mm)	(times/minute)	(kw)	LxWxH(mm)
4×2500	4	2500	1°30′	≤450	20-500	16	5.5	3040×1550×1550
4×3200	4	3200	1°30′	≤450	20-500	13	5.5	3840x1550x1550
4×4000	4	4000	1°30′	≤450	20-600	10	5.5	4600×1700×1700
4×6000	4	6000	1°30′	≤450	20-800	5	7.5	6460x2100x3200
6×2500	6	2500	1°30′	≤450	20-500	15	7.5	3040x1710x1620
6×3200	6	3200	1°30′	≤450	20-500	12	7.5	3840×1710×1620
6×4000	6	4000	1°30′	≤450	20-600	9	7.5	4620x1850x1700
6×5000	6	5000	1°30′	≤450	20-600	8	7.5	5410×1710×1620
6×6000	6	6000	1°30′	≤450	20-800	5	11	6480×2100×2300
8×2500	8	2500	1°30′	≤450	20-500	11	7.5	3040x1700x1700
8×3200	8	3200	1°30′	≤450	20-500	8	7.5	3860x1700x1700
8×4000	8	4000	1°30′	≤450	20-600	8	7.5	4640x1700v1700
8×5000	8	5000	1°30′	≤450	20-600	8	7.5	5400×2400×2000
8×6000	8	6000	1°30′	≤450	20-800	8	11	6480×2100×2350
10×2500	10	2500	1°30′	≤450	20-500	10	11	3040x1800x1700
10×3200	10	3200	1°30′	≤450	20-500	10	11	3860×2000×1700
10×4000	10	4000	1°30′	≤450	20-600	10	11	4650×2100×2000
10×6000	10	6000	1°30′	≤450	20-800	10	15	6500×2100×2300
12×2500	12	2500	2°	≤450	20-600	12	18.5	3140×2050×2000
12×3200	12	3200	2°	≤450	20-600	10	18.5	3880×2150×2000
12×4000	12	4000	2°	≤450	20-600	10	18.5	4680×2150×2100
12×5000	12	5000	2°	≤450	20-600	6	18.5	3245x1900x1900
12×6000	12	6000	2°	≤450	20-1000	5	18.5	6900×2600×2700
16×2500	16	2500	2°30′	≤450	20-600	10	22	3140x2150x2000
16×3200	16	3200	2°30′	≤450	20-600	10	22	3880×2150×2000
16×4000	16	4000	2°30′	≤450	20-800	10	22	4650×2150×2200
16×5000	16	5000	2°	≤450	20-1000	6	22	5900×2600×2700
16×6000	16	6000	2°	≤450	20-1000	5	22	6900×2700×2700
20×2500	20	2500	3°	≤450	20-800	8	22	3440×2300×2500
20×3200	20	3200	3°	≤450	20-800	8	22	4150×2350×2700
20×4000	20	4000	3°	≤450	20-1000	5	22	4850×2600×2400
20×6000	20	6000	3°	≤450	20-1000	4	30	6700x3000x3000
25×2500	25	2500	3°	≤450	20-1000	8	37	3200×2700×2900
25×3200	25	3200	3°	≤450	20-1000	5	37	4200×2400×2500
30×2500	30	2500	3°	≤450	20-1000	4	37	3300×2900×3000
30×3200	30	3200	3°30′	≤450	20-1000	4	40	4200×2500×2600
40×2500	40	2500	4°	≤450	20-1000	3	55	3200×3300×3200
40×3200	40	3200	4°	≤450	20-1000	3	55	4300×3300×3000

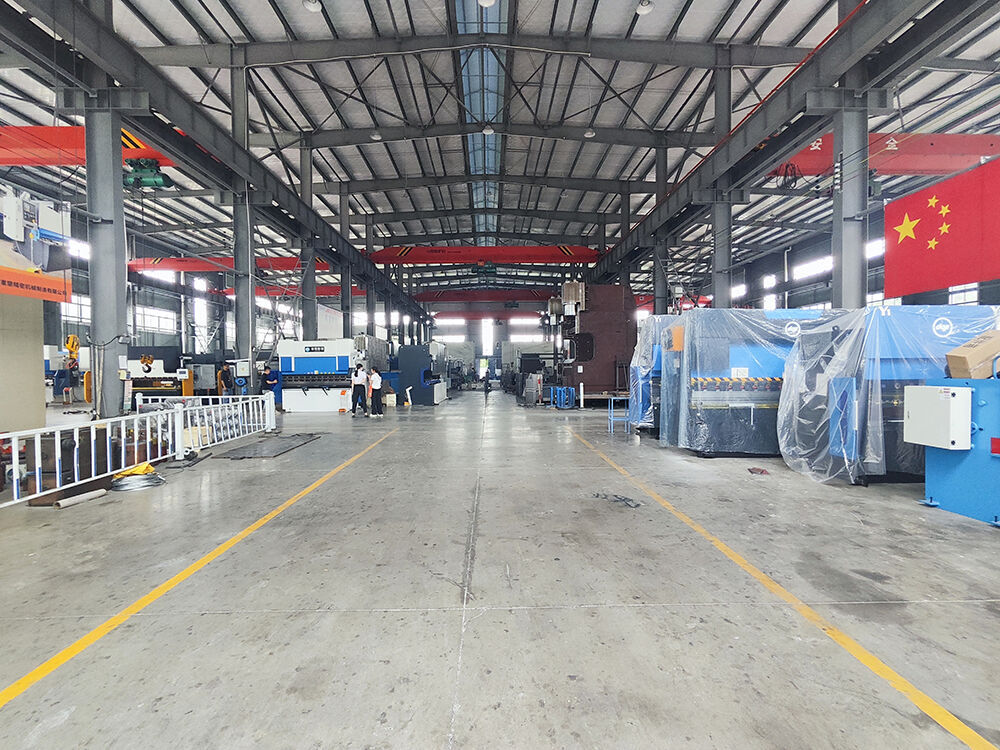

Company Profile

Nadun Machinery Manufacture Co., Ltd. is a company specializing in the production of hydraulic presses, punch presses, shearing machines, bending machines, and other machinery. Our products are widely used in various industries such as automobile manufacturing, home appliances, and hardware processing.
Our company has a team of experienced professionals who consistently strive for excellence in their work. We have a strong research and development team that constantly innovates and improves our products to meet the ever-changing market demands. Our products are known for their high quality, excellent performance, and long service life.

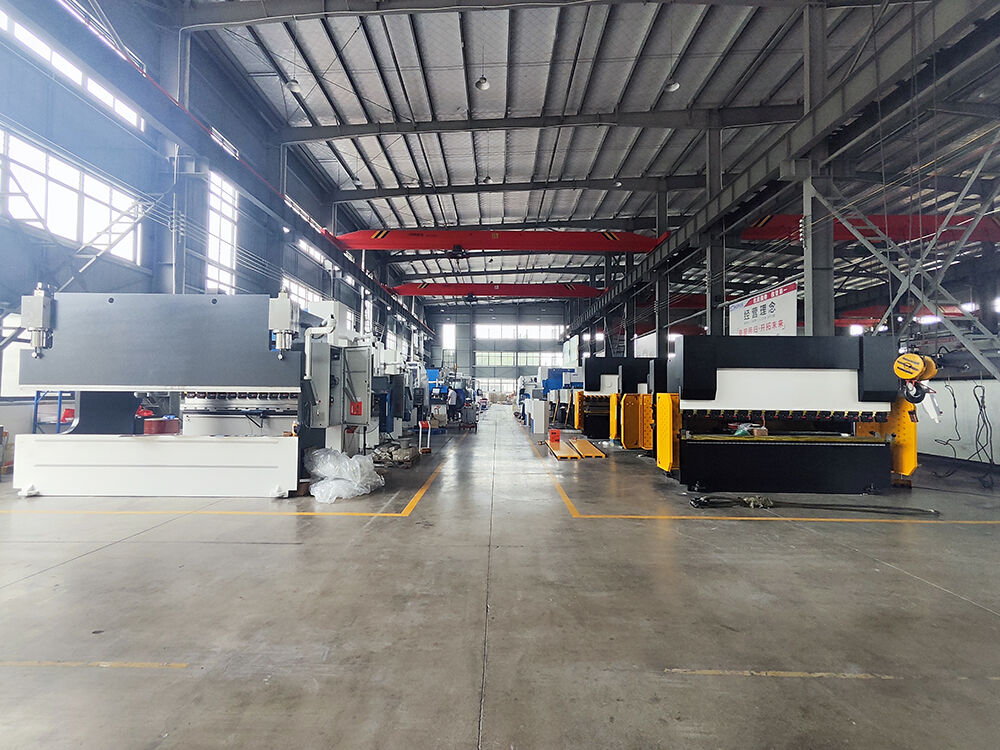

shearing cutting machine for thin metal sheet supplier

Packaging & Shipping

FAQ

Q1: How can I receive after-sales service from your company?A: We offer a one-year guarantee, and if any problems arise due to our products, we will send spare parts to you. You can contact us directly if you encounter any issues.

Q2: Is it possible to visit your factory before placing an order?A: Absolutely. You are welcome to inspect our factory located at No.219 Xingye Road, Tengzhou City, Shandong Province. We can arrange for a pick-up service from Tengzhou station, and we also offer hotel booking services.

Q3: Are you a manufacturer or a trading company?A: We are a manufacturer with our own factory, and our export proportion ranges from 50% to 60%.

Q4: How can I trust your company?A: We have a professional design team that can provide you with suitable suggestions and the lowest prices. Our equipment has been assessed by third-party organizations, and we have obtained national patents and CE, ISO certifications for all of our products. You are welcome to inspect our factory at any time, and we also offer Trade Assurance services.
