500T hot press machine composite material hydraulic press

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

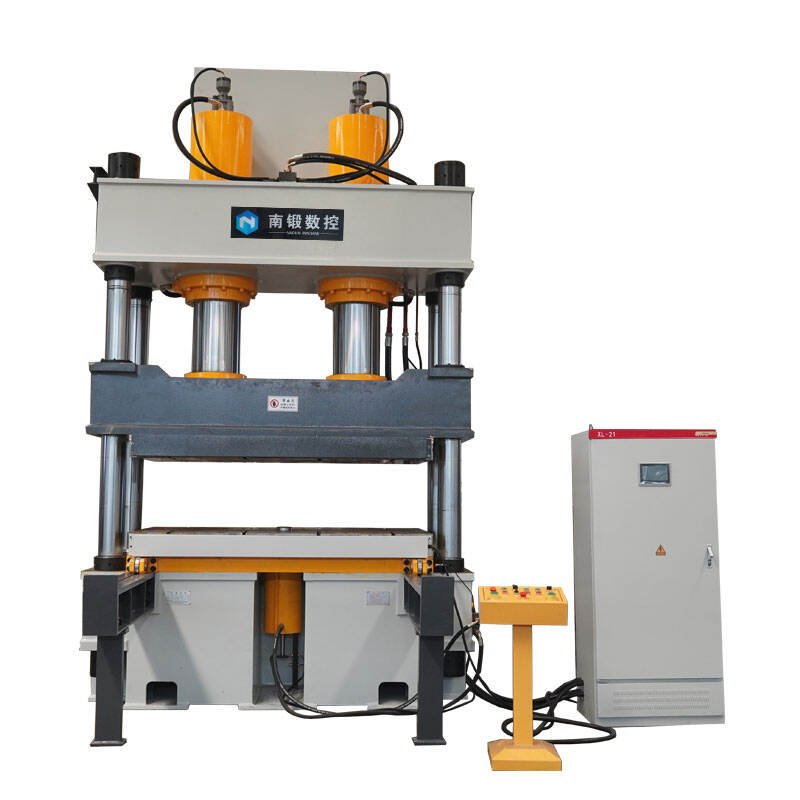

500T hot-pressing hydraulic press, with a double hydraulic cylinder design for more balanced pressure distribution. Equipped with a movable worktable and servo system, which improves the performance and convenience of the machine. This machine is suitable for hot-pressing molding of various composite materials and can accomplish tasks excellently.

Parameters

YQ32 Technical Parameters
	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12
Return speed	mm/s	80	90	90	90	90	90	100
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300

	Unit	YQ32—400	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	1250	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	800	900	900	900	900	900	900
Effective table size	mm	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	100	150	150	180	180	180	190
Pressing speed	mm/s	5～11	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	100	180	200	180	220	200	220
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300	300

Standard parameters are for reference only. We can provide you with customized models.

Pressed Product

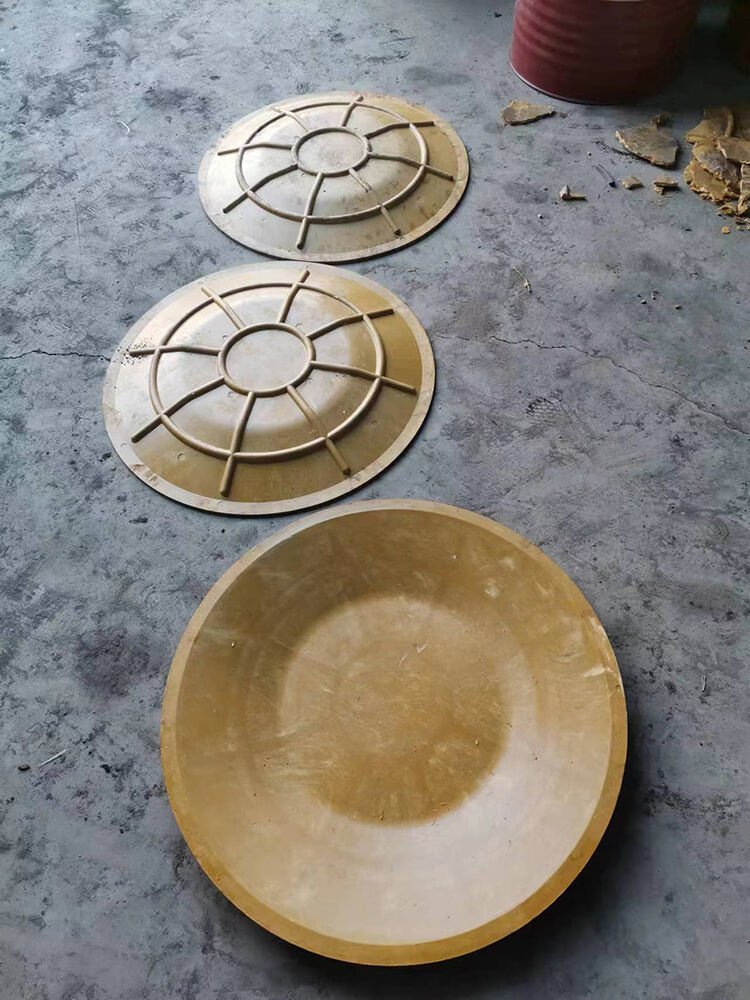

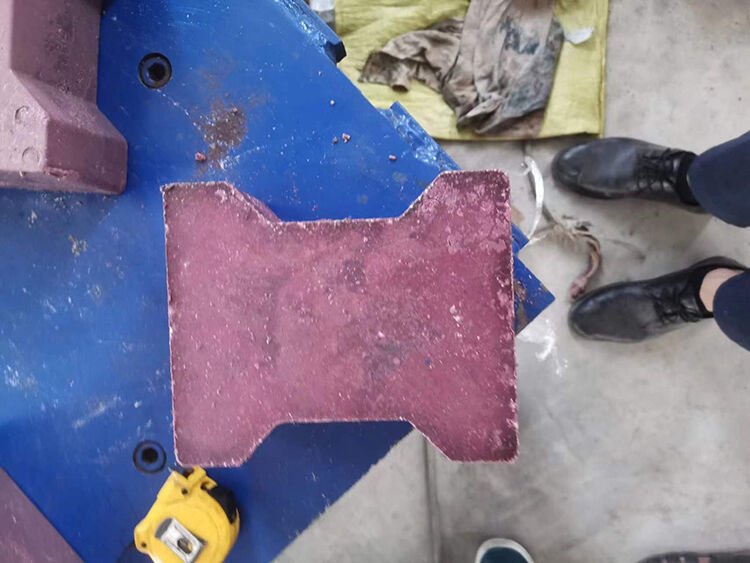

Suitable for pressing and molding of SMC composite materials, plastics, carbon fibers, fiberglass, resins, and wood shavings. Examples include SMC water tanks, fan covers, plastic pallets, wood shavings pallets, plastic sand tiles, carbon fiber automotive body panels, resin manhole covers, etc. Custom hydraulic presses and matching molding molds are also available upon request.

315T树脂井盖排水沟带温控1104762 微信图片_20240331133601(49ff8f3b4b).png

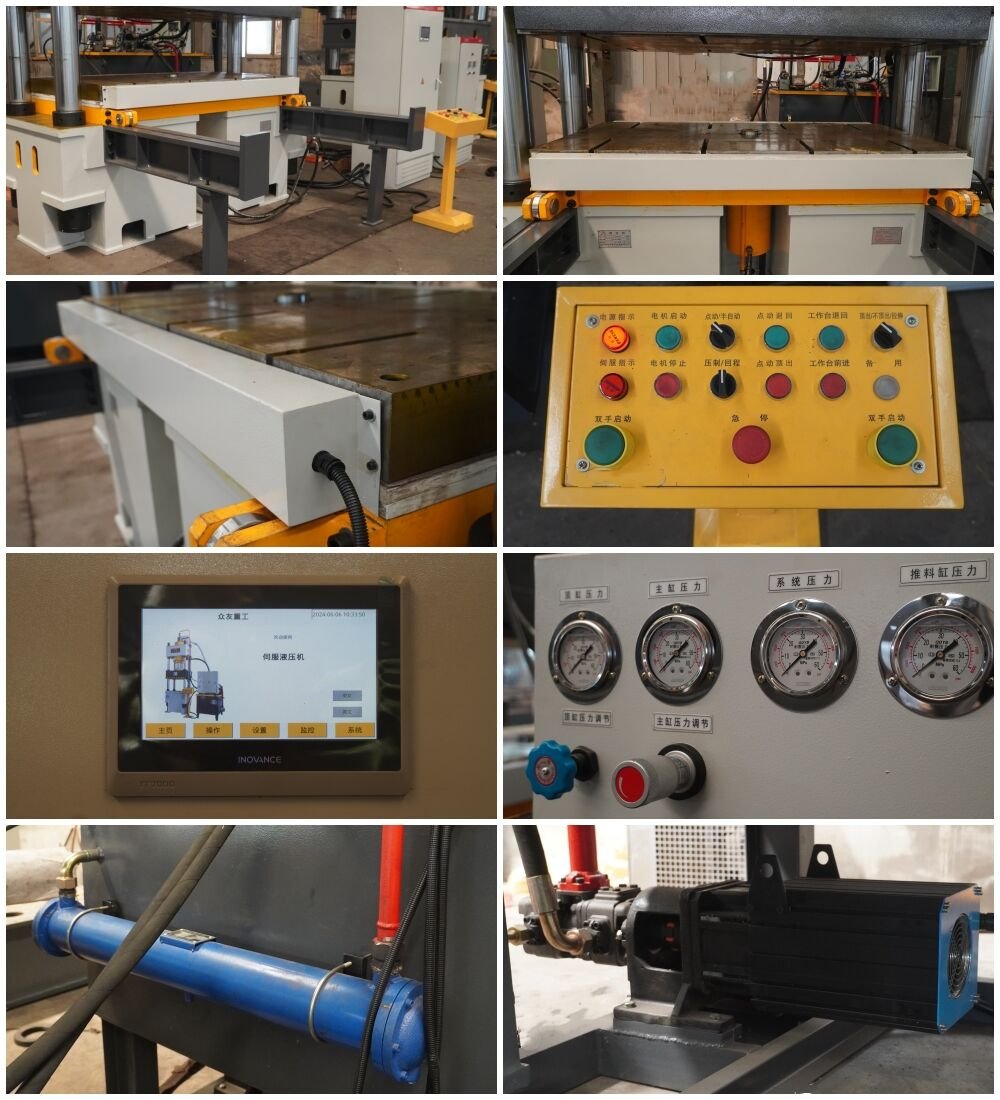

Equipment Details


Performance Characteristics

Adopting a three-beam and four-column structure, it has stable structure, high precision, large operating space, and can replace various molds.
The hydraulic system adopts advanced cartridge integrated valves, and the electrical system uses brand accessories, which can achieve high-precision pressing. It has reliable quality and convenient maintenance.
Controlled by buttons and touch screen, the operation is simple.
Parameters such as stroke, pressure, and holding time can be adjusted.
Computer-optimized design, simple structure, and easy maintenance.
