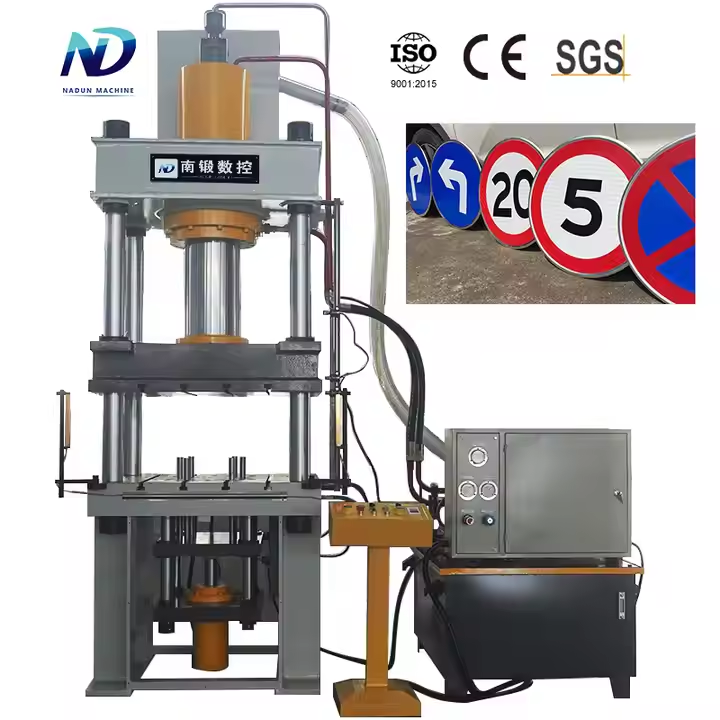

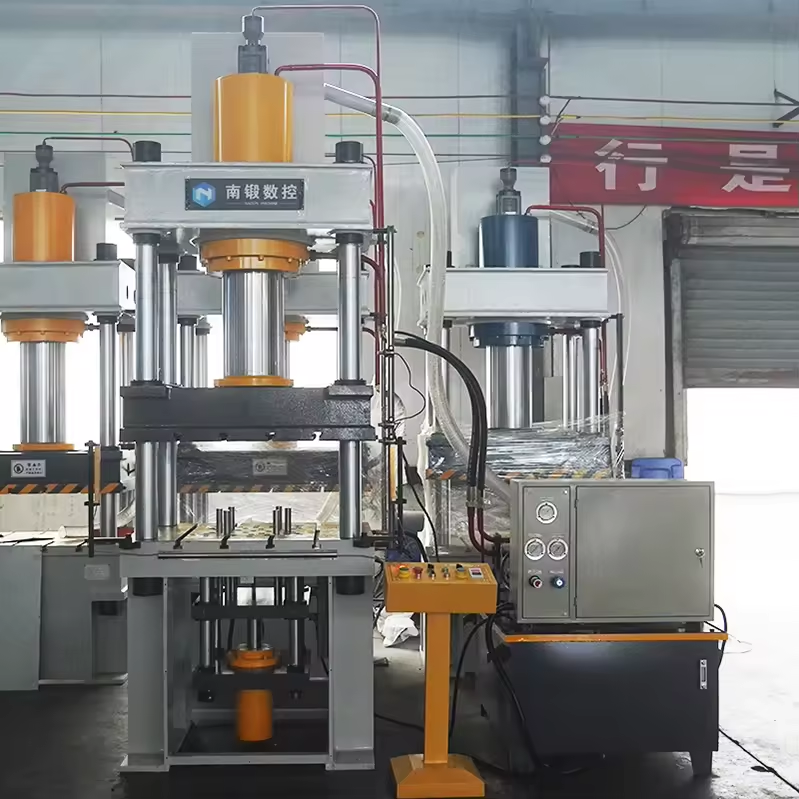

Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine
Nadun 200 Ton metal deep draw press machine

Nadun 200 Ton metal deep draw press machine

Product Overview

Nadun 200 Ton metal deep draw press machine details

The thin sheet metal forming and stretching hydraulic press is primarily used for metal thin sheet stretching, blanking, and punching processes. It also possesses the conventional functions of a general-purpose hydraulic press, making it widely applicable. When equipped with a hydraulic buffer, it can complete post-stretching punching or post-punching flanging processes. This equipment is widely used in various fields, including automotive, motorcycle, household appliances, petrochemical, rail transportation, aerospace, and aviation. This series of hydraulic presses is available in two structural forms: four-column and frame.

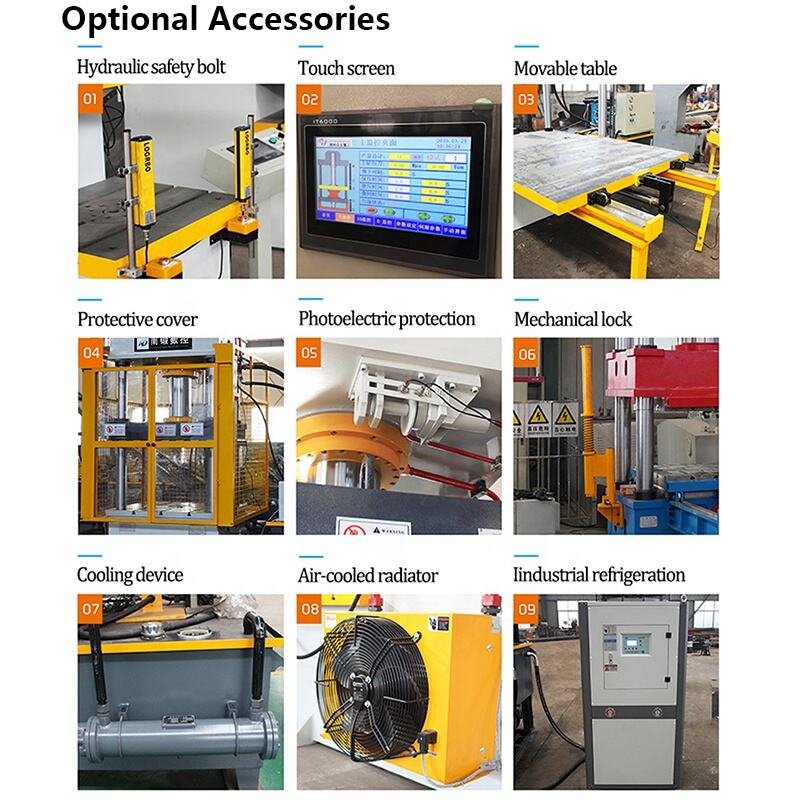

It can be configured according to user requirements with hydraulic pads, micro-adjustment mold devices, quick mold change devices, etc.

Nadun 200 Ton metal deep draw press machine factory

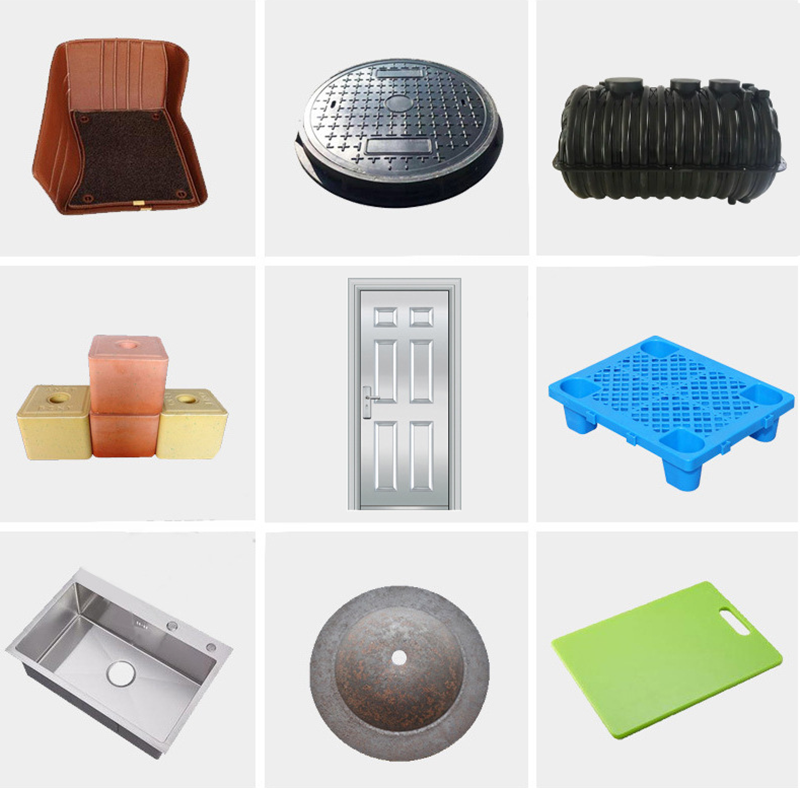

Part of the products that can be manufactured
The YD27 series sheet metal stretching and forming hydraulic press can be used to produce the products shown above.
Nadun 200 Ton metal deep draw press machine details
Highly Customizable
In addition to our standard models, our machines can be customized with various brands and types of components according to your specific requirements, achieving a high degree of customization.

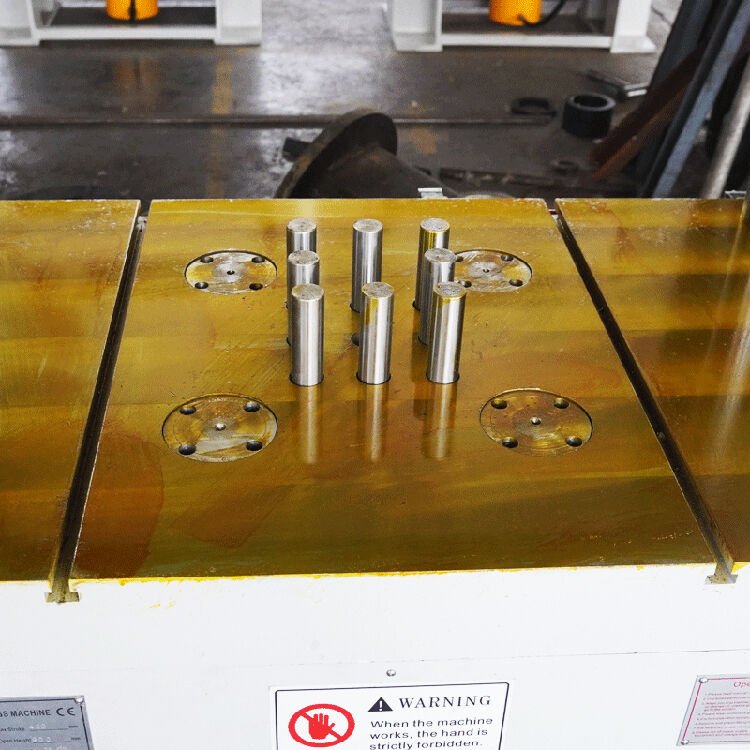

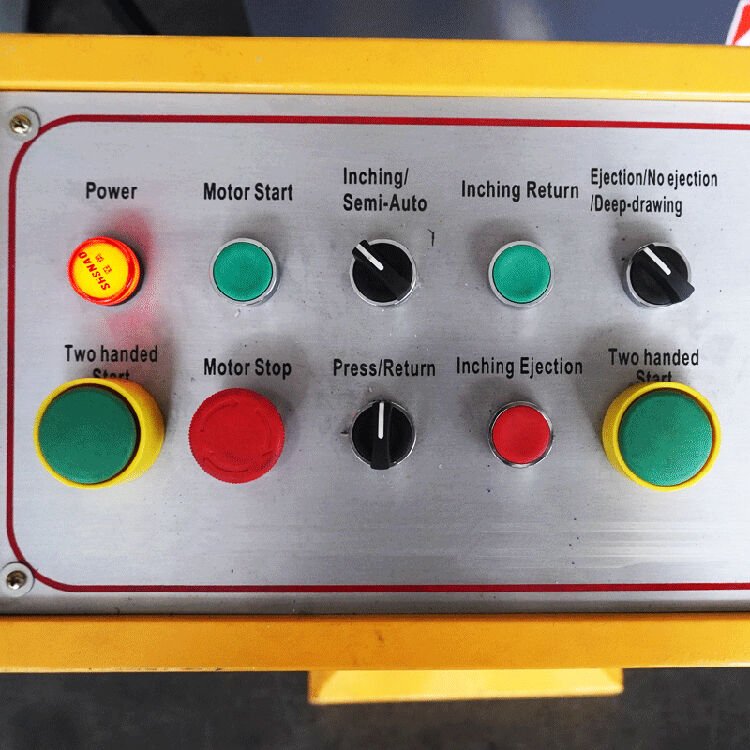

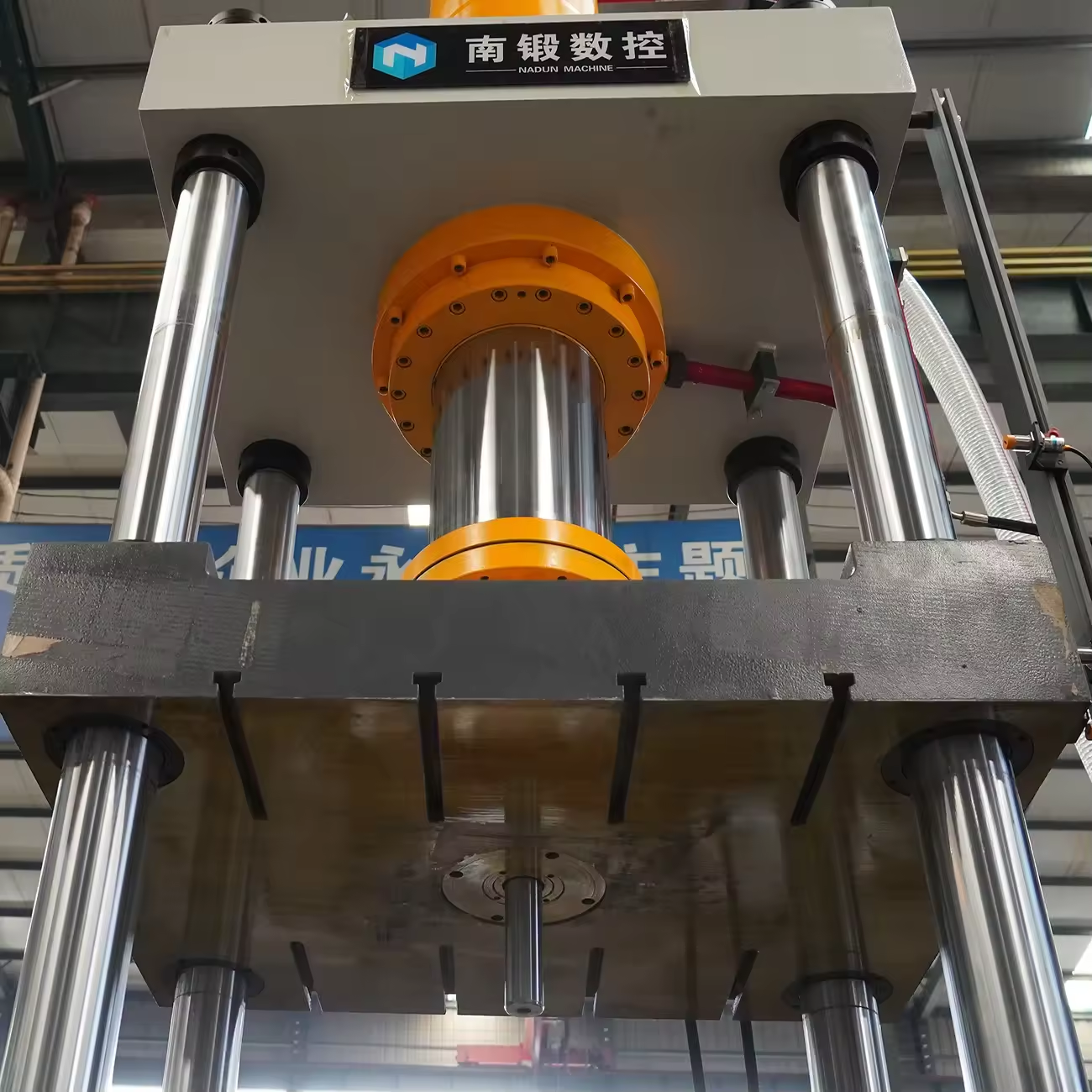

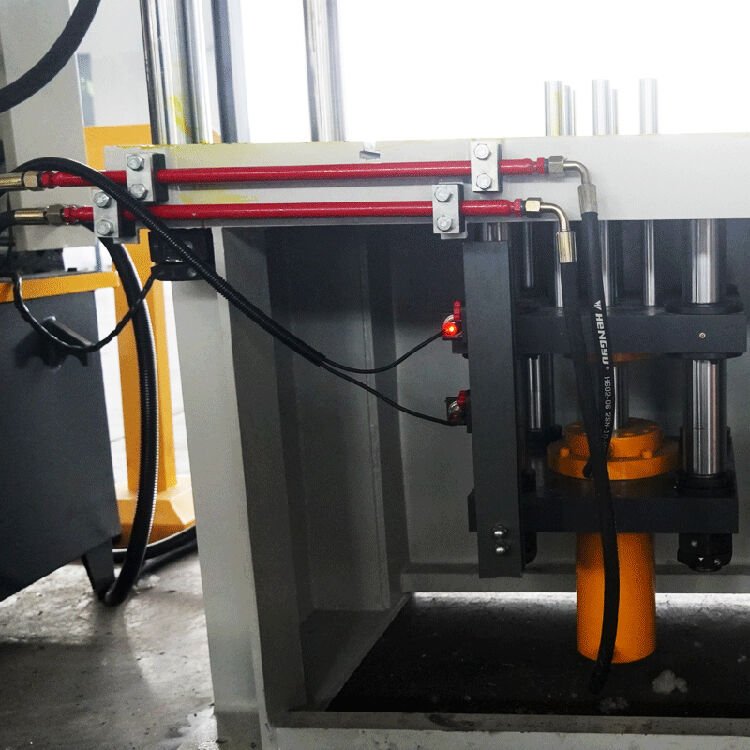

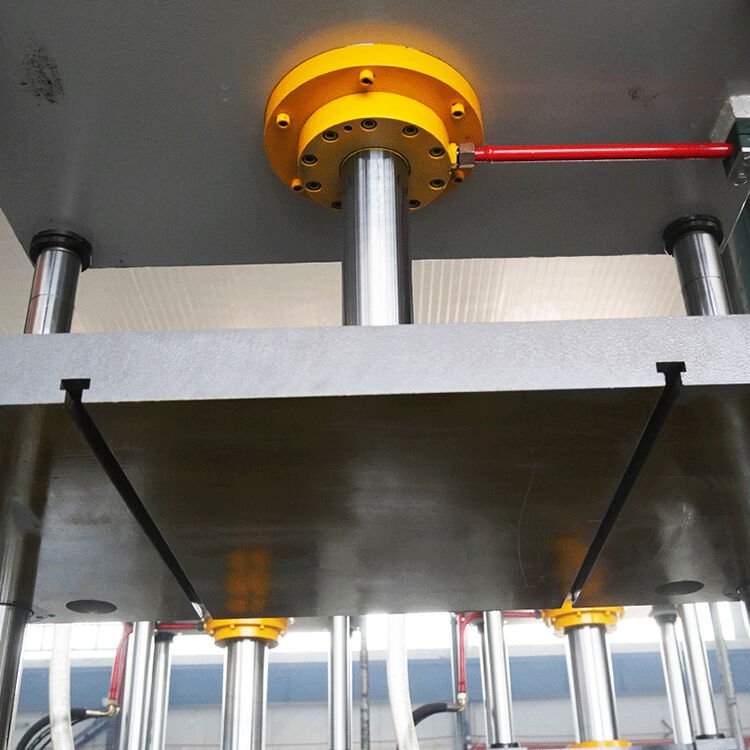

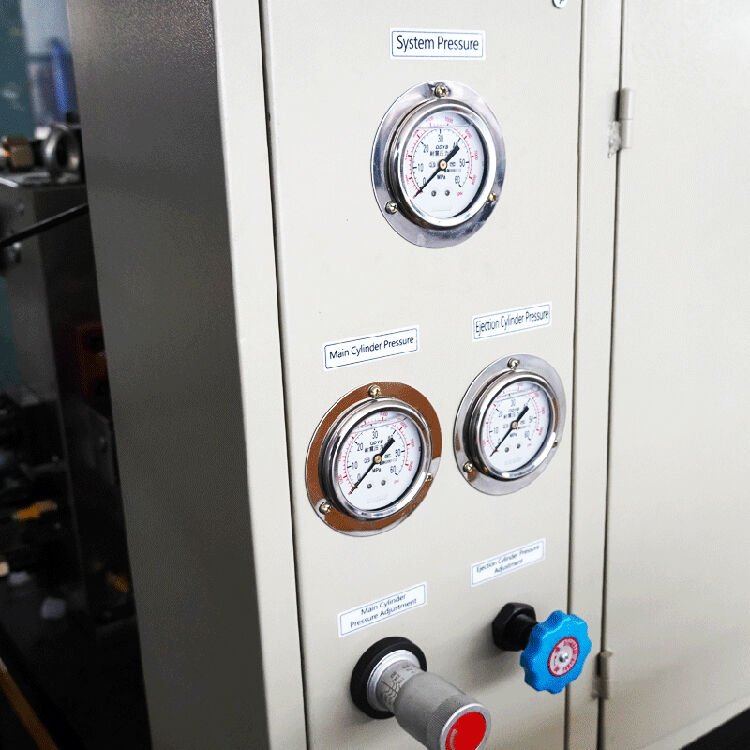

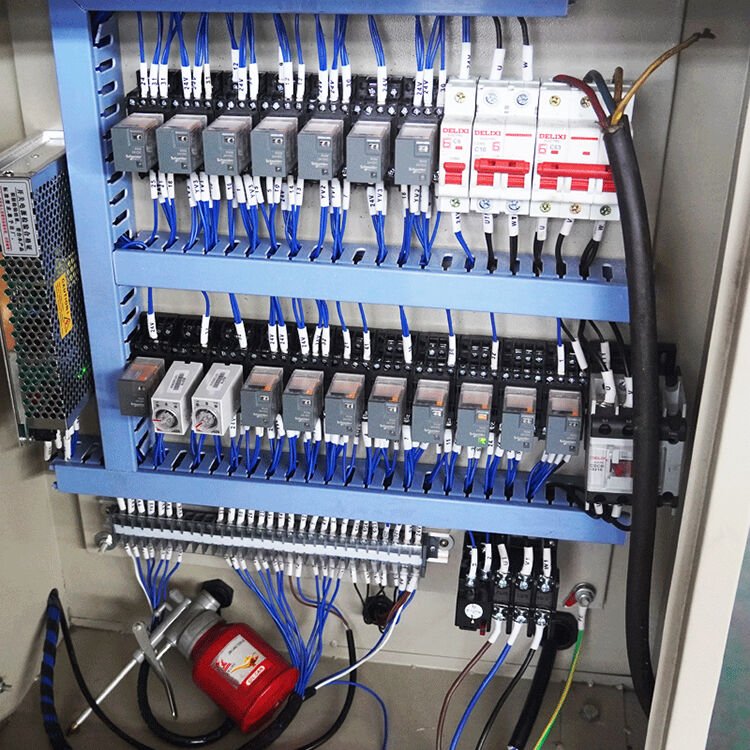

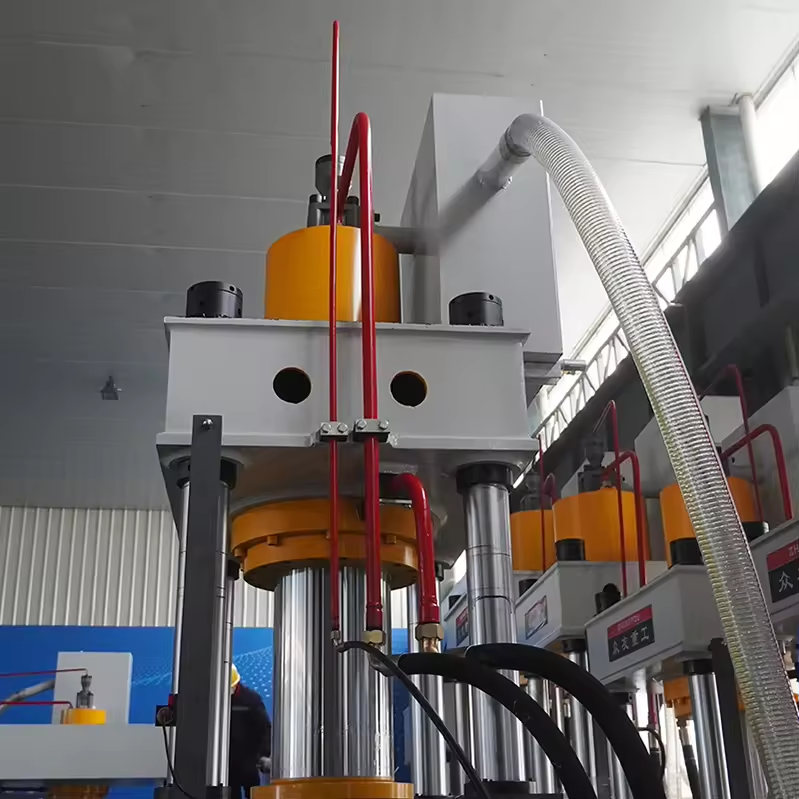

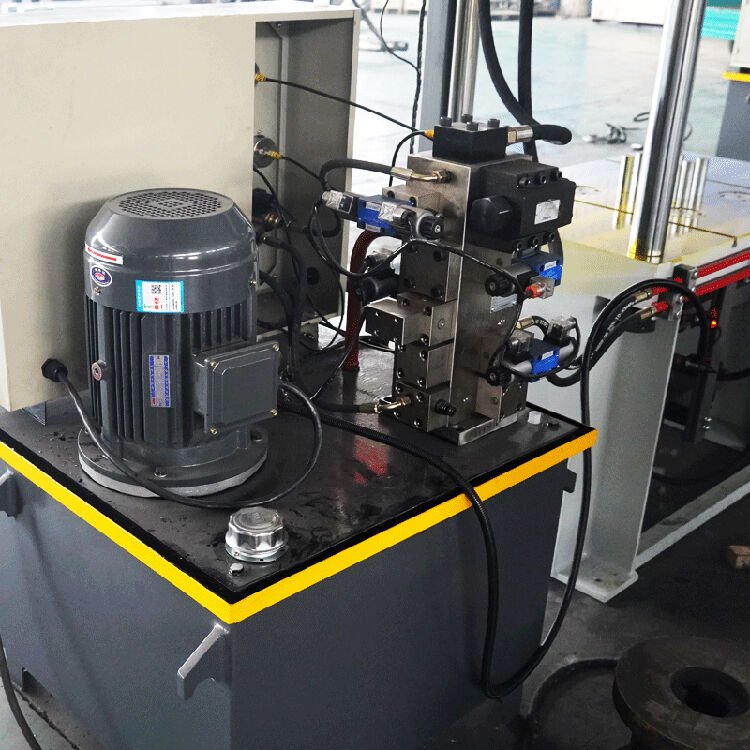

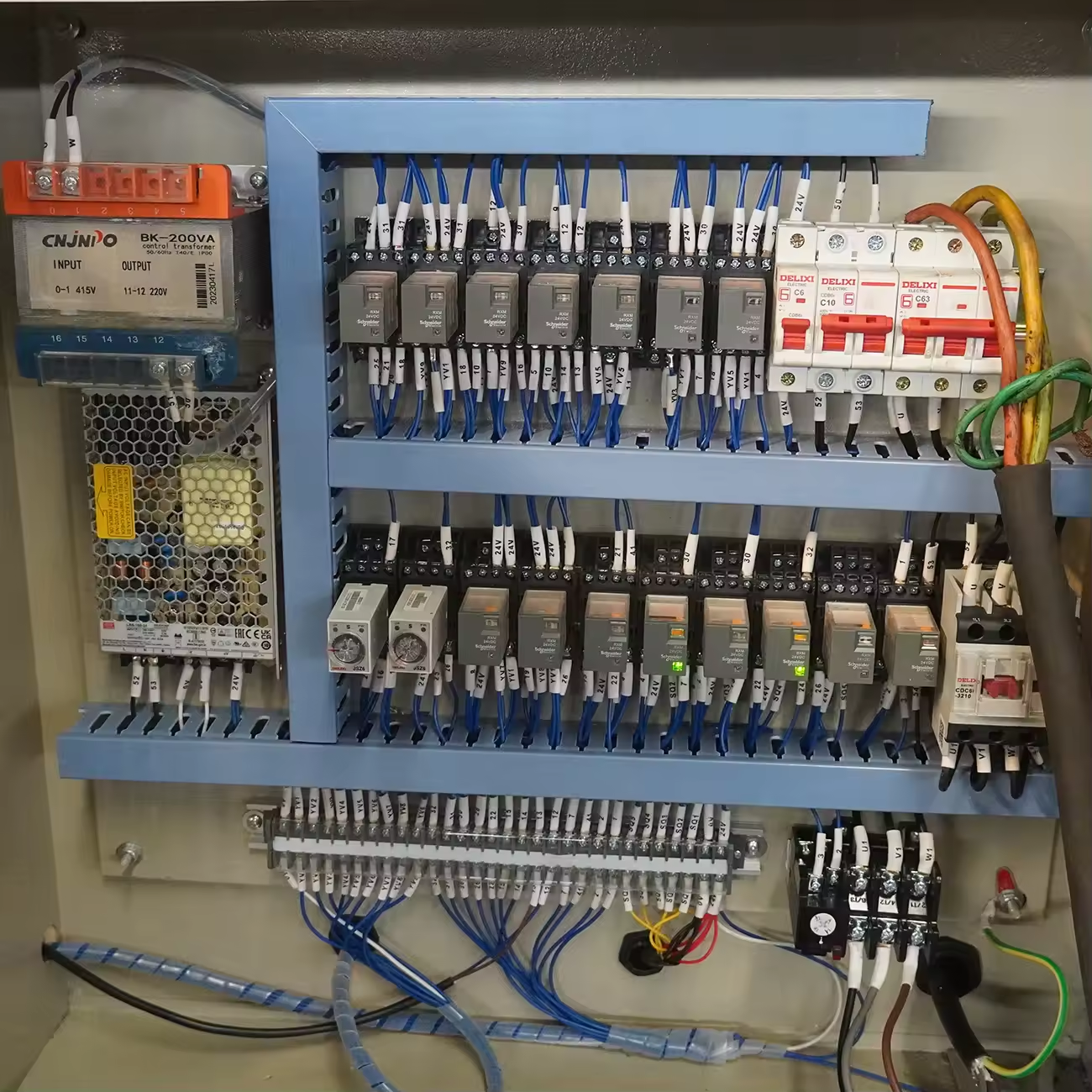

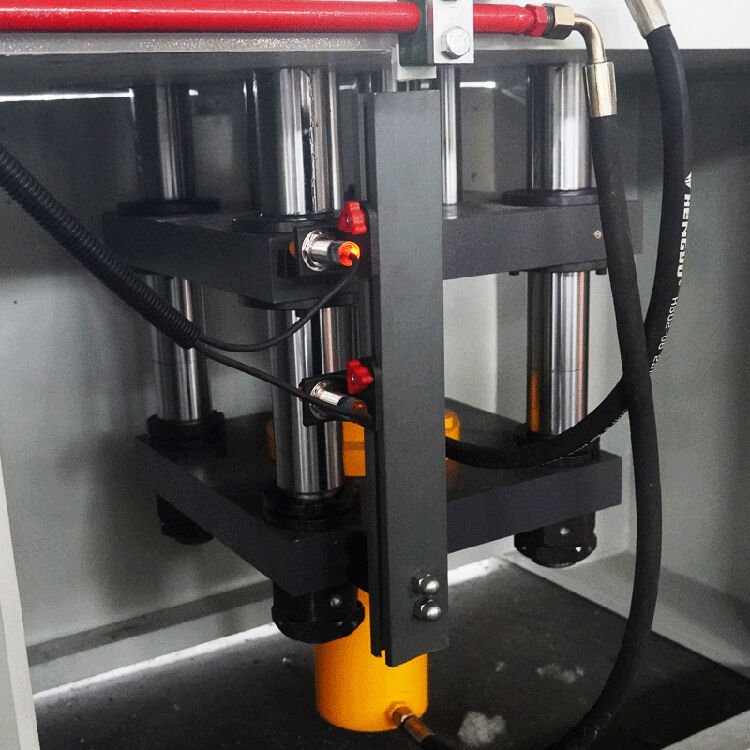

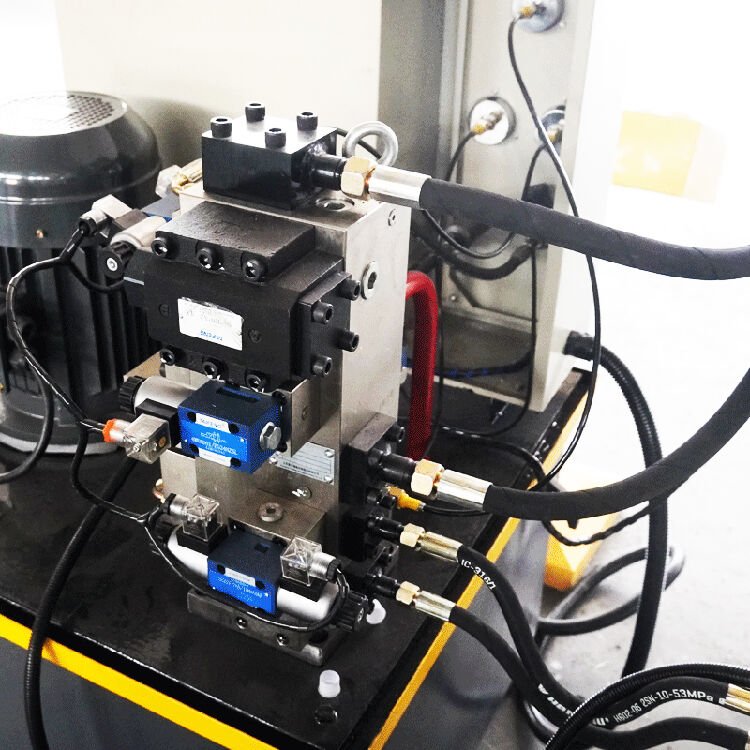

Details Images
Nadun 200 Ton metal deep draw press machine factory Nadun 200 Ton metal deep draw press machine factory Nadun 200 Ton metal deep draw press machine supplier
Nadun 200 Ton metal deep draw press machine supplier Nadun 200 Ton metal deep draw press machine manufacture Nadun 200 Ton metal deep draw press machine factory
Nadun 200 Ton metal deep draw press machine factory Nadun 200 Ton metal deep draw press machine supplier Nadun 200 Ton metal deep draw press machine supplier
Specification
item
value
Slide Stroke (mm)
700
Machine Type
Four-column Three-beam Hydraulic Press
Ejector Force (kN)
600
Return Force (kN)
400kN
System
Normal
Condition
New
Place of Origin
China
Brand Name
Nadun
Year
2024
Voltage
380V/Optional
Weight (T)
6.4T
Model Number
YD27-200T
Motor Power (kw)
7.5kw
Key Selling Points
Competitive Price
Warranty
1 Year
Applicable Industries
Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Showroom Location
None
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing, Motor, Pump, Pressure vessel
Hydraulic Pressure
25 Mpa
Opening Height
1200 mm
Effective Table Area
1000*1000 mm
Down Speed
100 mm/s
Pressing Speed
14 mm/s
Return Speed
110 mm/s
Hydraulic Cushion Ejection Force
600 KN
Ejection Stroke
300 mm
Hydraulic Cushion Area
750*600 mm

Product Paramenters

SPECIFICATION
UNIT
100T
200TA
200TB
315T
500T
Max. System pressure
Mpa
25
25
25
25
25
Max. Stroke of sliderOpening
mm
600
600
700
800
900
Max. Open height
mm
900
900
1200
1250
1500
Effective table size
mm
750x 700
800x800
1000x1000
1260x1160
1400x1400
Down speed
mm/s
90
100
100
120
120
Pressing speed
mm/s
17
14
14
11
18
Return speed
mm/s
110
110
110
100
170
Motor power
KW
7.5
7.5
7.5
22
22*2
Hydraulic cushion force
T
50
60
60
100
160
Cushion stroke
mm
300
300
300
300
300

The aforementioned table details the standard specifications for our YD27 series of deep drawing hydraulic presses, with the 200-ton model being the emphasized variant. Additionally, we are capable of tailoring machinery to meet diverse types and applications as per your specific needs.

Certifications

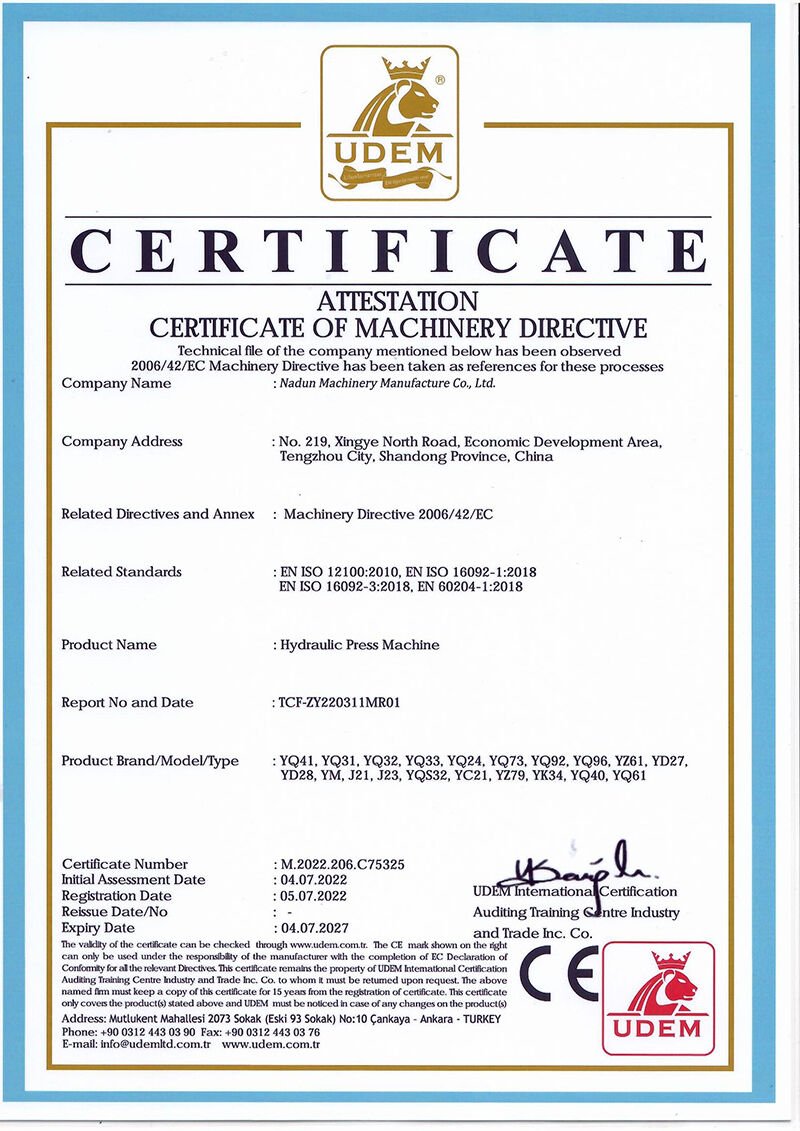

CE Certification
