Shearing machine Used to cut steel plate, copper plate equipment

Shearing machine Used to cut steel plate, copper plate equipment

Place of Origin:	Tengzhou City, Zaozhuang City, Shandong Province, China
Brand Name:	Nadun
Model Number:	WC67Y-100T/2500mm
Certification:	CE，ISO 9001
Minimum Order Quantity:	1
Price:	7000
Packaging Details:	Plastic Film or Wooden. Container Transportation.
Delivery Time:	Within 30 to 60 days after ordering.
Payment Terms:	30% deposit paid in advance, with the remaining 70% balance settled after submitting the bill of lading copy.
Supply Ability:	50 sets/month

Product Overview

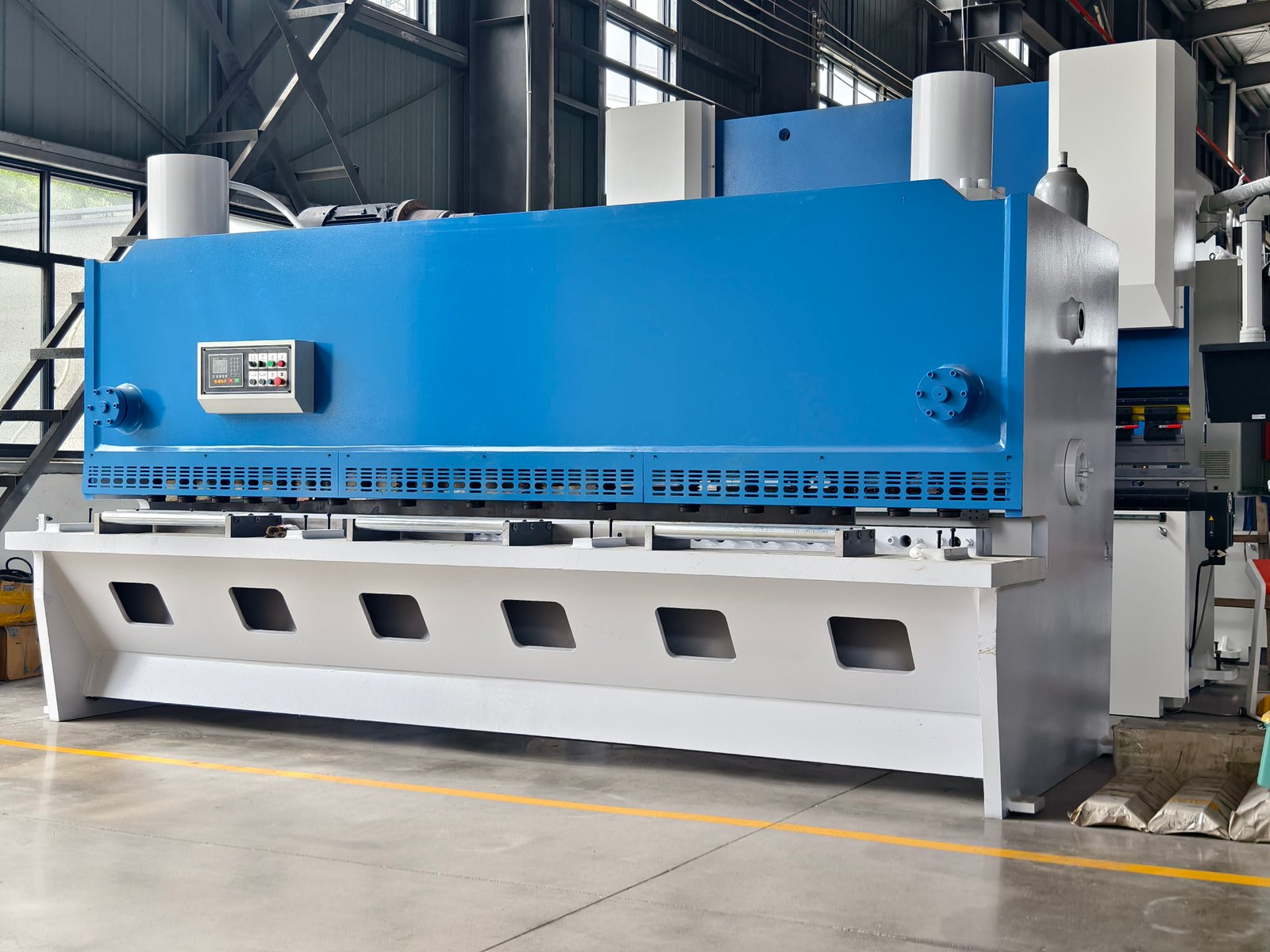

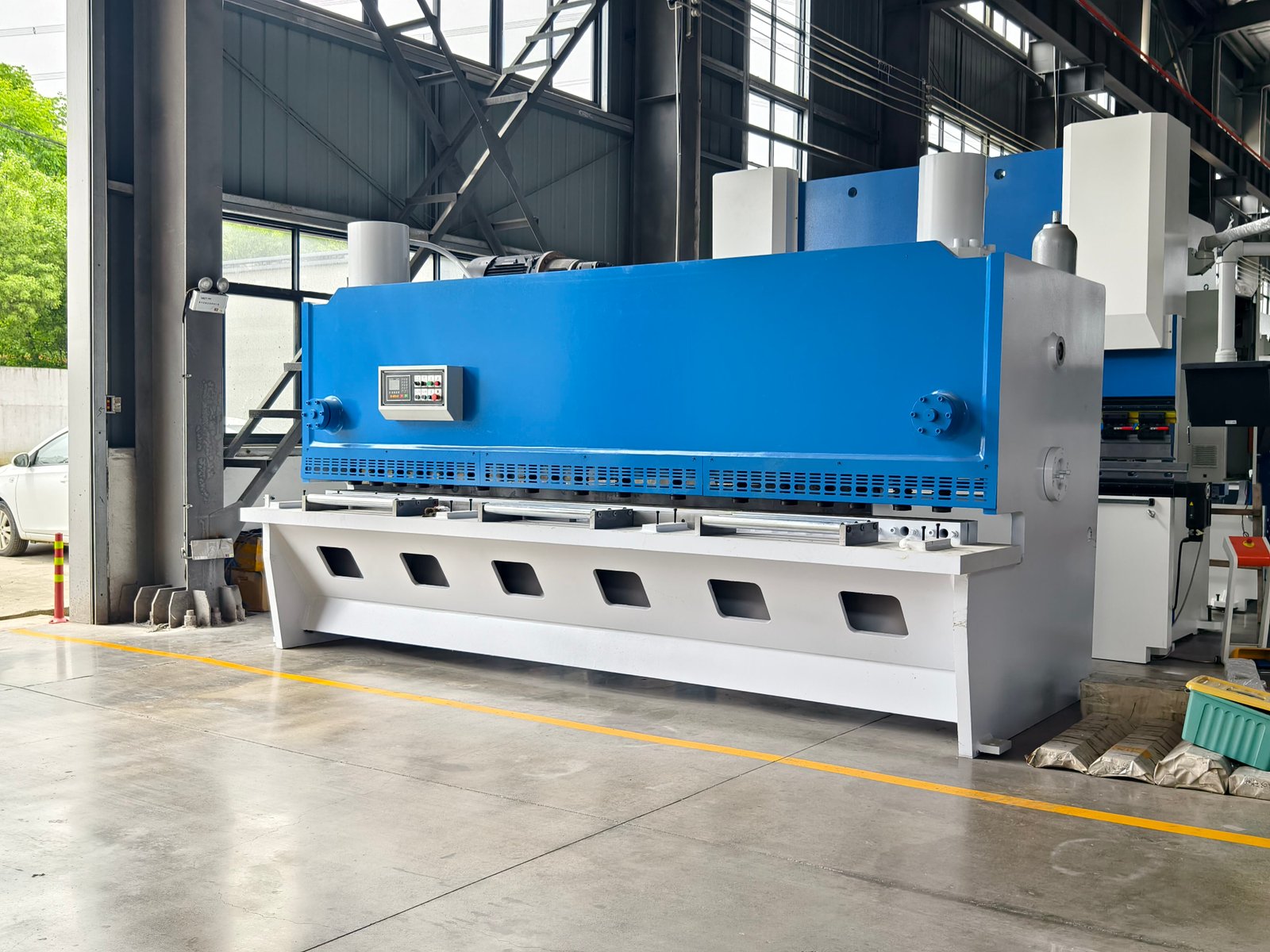

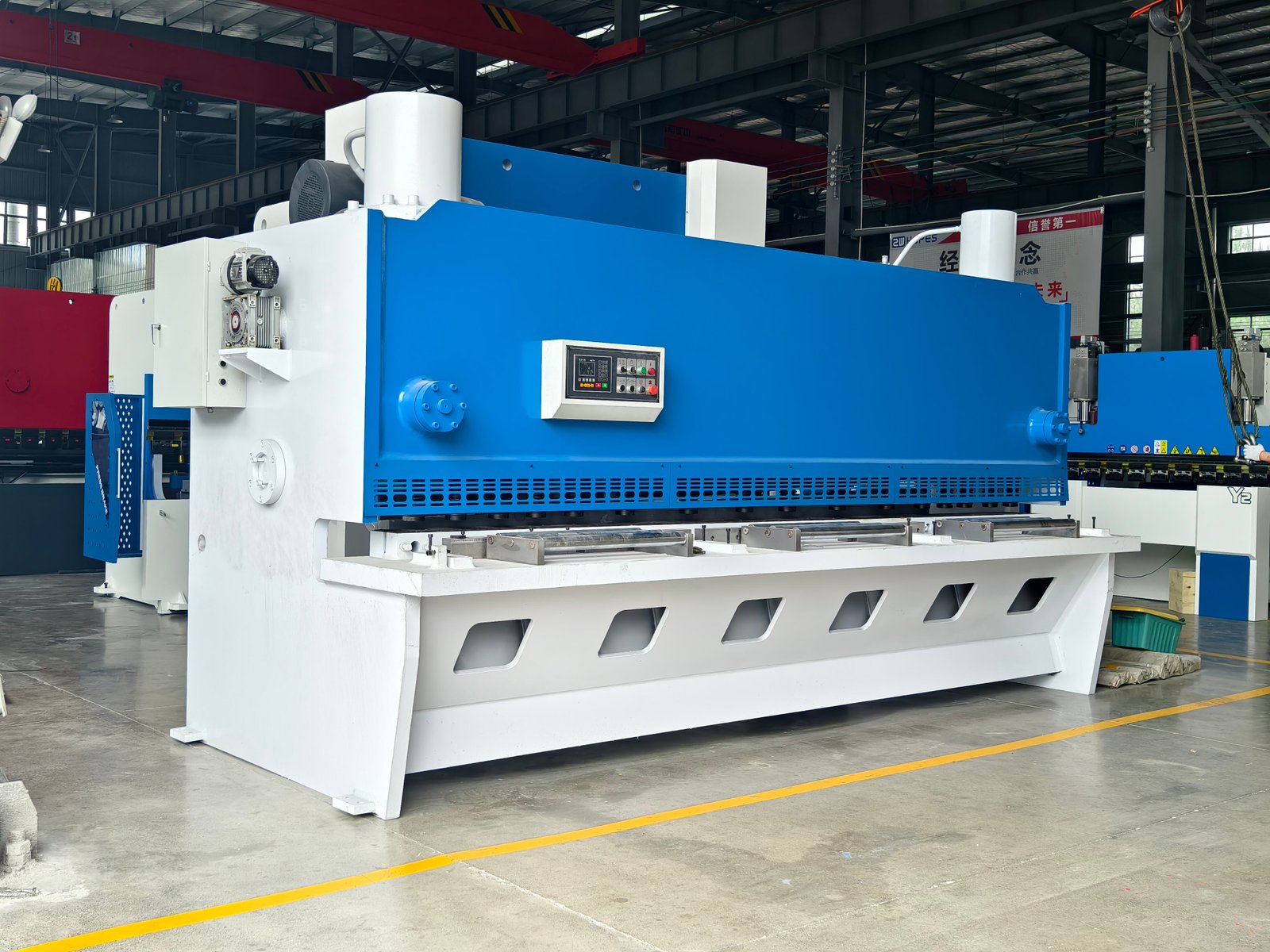

Shearing machine Used to cut steel plate, copper plate equipment (1).jpg

Shearing machine is a blade relative to another blade for reciprocating linear motion, the metal plate to apply shear force, so that it is broken according to the required size separation of forging machinery and equipment, widely used in aviation, light industry, metallurgy, chemical industry, construction, shipping, automotive and other industries, used to shear steel, copper, aluminum and non-metallic materials plate (need to be free of hard marks, weld slag, slag, etc. defects)

Parameters

Model	Nominal Force	Worktable Length	Poles Distance	Throat Depth	Slider Stroke	Max Height	Power	weigh	Dimension
TYPE	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(kw)	(kg)	LxWxH (mm)
40T/2200	400	2200	1850	230	100	320	5.5	2750	2200x1200x1900
40T/2500	400	2500	1850	230	100	320	5.5	3000	2500x1200x1900
50T/2500	500	2500	1850	230	100	320	5.5	3400	2500x1200x2000
63T/2500	630	2500	1900	250	100	320	5.5	4000	2500x1300x2210
63T/3200	630	3200	2560	250	100	320	5.5	5000	3200x1300x2210
80T/2500	800	2500	1990	300	100	320	7.5	5000	2500x1400x2300
80T/3200	800	3200	2560	320	100	350	7.5	6000	3200x1500x2300
80T/4000	800	4000	3200	320	100	350	7.5	7000	4000x1500x2100
100T/2500	1000	2500	1990	320	120	350	7.5	6000	2500x1600x2400
100T/3200	1000	3200	2600	320	150	400	7.5	6800	3200x1600x2600
100T/4000	1000	4000	3200	320	150	400	7.5	8000	4000x1600x2600
125T/3200	1250	3200	2600	320	150	400	11	7000	3200x1600x2600
125T/4000	1250	4000	3200	320	150	400	11	8500	4000x1600x2600
160T/3200	1600	3200	2580	320	200	460	11	10000	3200x1700x2700
160T/4000	1600	4000	2900	320	200	460	11	11000	4000x1700x2800
160T/5000	1600	5000	3900	320	200	460	11	13500	5000x1900x3100
160T/6000	1600	6000	4900	320	200	460	11	18500	6300x1900x3200
200T/3200	2000	3200	2480	320	200	460	11	11000	3200x1950x2800
200T/4000	2000	4000	2900	320	200	460	11	12500	4000x1950x2800
200T/5000	2000	5000	3900	320	200	460	11	14000	5000x1950x3000
200T/6000	2000	6000	4900	320	200	460	11	20000	6000x1950x3300
250T/3200	2500	3200	2450	400	250	590	18.5	18500	3250x2000x3200
250T/4000	2500	4000	2900	400	250	590	18.5	20000	4000x2000x3400
250T/5000	2500	5000	3900	400	250	590	18.5	23000	5000x2000x3400
250T/6000	2500	6000	4900	400	250	590	18.5	27000	6000x2000x3400
300T/3200	3000	3200	2450	400	250	590	22	20500	3200x2000x3450
300T/4000	3000	4000	2900	400	250	590	22	22000	4000x2000x3450
300T/5000	3000	5000	3900	400	250	590	22	25000	5000x2000x3450
300T/6000	3000	6000	4900	400	250	590	22	28500	6000x2000x3450
400T/3200	4000	3200	2400	400	250	590	30	22500	3200x2180x3400
400T/4000	4000	4000	2900	400	250	590	30	25000	4000x2180x3400
400T/5000	4000	5000	3900	400	250	590	30	29000	5000x2180x3500
400T/6000	4000	6000	4900	400	250	590	30	34000	6000x2180x3800
500T/5000	5000	5000	3900	400	250	590	45	42000	5050x3500x3700
500T/6000	5000	6000	4900	400	320	590	45	54000	6050x3500x3700
600T/4000	6000	4000	2900	400	320	590	55	44000	4050x1500x3700
600T/6000	6000	6000	4900	400	320	590	55	60000	6050x4500×3700

Equipment Details

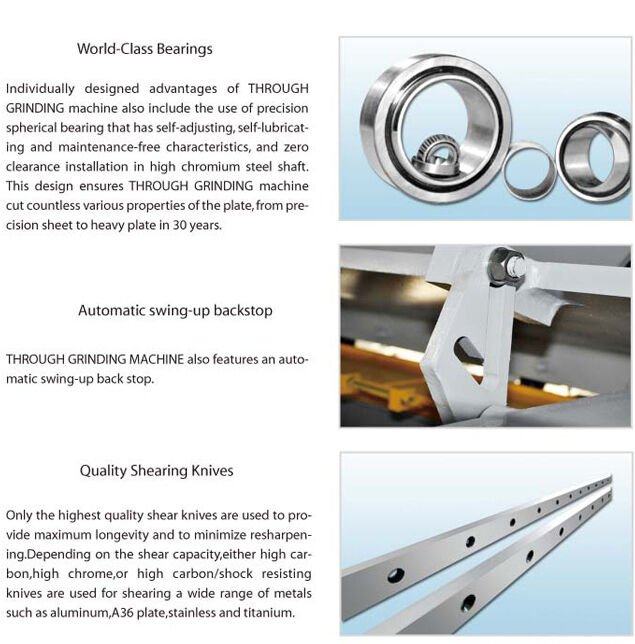

Shearing machine Used to cut steel plate, copper plate equipment (4).jpg

Performance Characteristics

Points: High-precision shearing: Mechanical shearing machine adopts precision transmission and control system to ensure accurate shearing size, which is suitable for straight line and curve cutting. Hydraulic gate shearer reduces error and ensures flat cutting surface through linear knife carrier movement and adjustable clearance.

High efficiency and speed: Mechanical drive shears are fast and efficient, suitable for high-frequency small thickness shearing; hydraulic drive is suitable for large thickness shearing, with a lower number of strokes but stable shearing force. CNC shears enhance efficiency through automation and servo systems, support for high-speed cutting and automatic counting.

Easy and safe operation: touch screen or push button control, equipped with safety protection devices such as guard fence, emergency stop button, clutch and brake interlock. Automated loading and feeding system reduces manual operation and reduces the risk of accidents.

Scope Of Application

Automobile manufacturing: shear body covering parts, chassis parts.
Aerospace: processing high-precision aluminum alloy plates, titanium alloy structural parts.
Building bridges: cutting steel structure beams, columns connecting plates.
Electrical decoration: production of metal shells, decorative strips.

After-Sales Service

We provide comprehensive after-sales service, including installation, commissioning and operation training; provide shearing machine user manuals, which are convenient for users to learn how to operate and maintain the press.
