deep drawing press machine

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YD28-315T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

deep drawing press machine (2).jpg

Double-action stretching machine is a kind of equipment used for metal or non-metal plate forming and processing, mainly through the two-way (or multi-directional) synchronous action to achieve the plate stretching and forming, especially suitable for the manufacture of complex curved hollow parts (such as automotive coverings, containers, especially suitable for manufacturing complex curved hollow parts (such as automobile coverings, containers, household appliance shells, etc.).

Parameters

YD27 Parameters	Unit	100T	200TA	200TB	315T	500T	630T	800T	1000T
Liquid Pressure	MPa	25	25	25	25	25	25	25	25
Effective Stroke of Slider	mm	600	600	700	800	900	900	900	900
Open Height	mm	900	900	1200	1250	1500	1500	1500	1500
Effective Area of Workbench	mm	750×700	800×800	1000×1000	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600
Free Fall Speed	mm/s	90	100	100	120	120	130	150	150
Pressing Speed	mm/s	17	14	14	11	18	18	18	18
Return Speed	mm/s	110	110	110	100	170	180	180	190
Motor Power	kW	7.5	7.5	7.5	22	37	44	60	74
Hydraulic Pad Ejecting Force	T	50	60	60	100	160	200	315	400
Ejecting Stroke	mm	300	300	300	300	300	300	300	300
Hydraulic Pad Area	mm	Φ500	Φ550	750×600	750×750	1050×1050	1200×1200	1200×1200	1200×1200

Pressed Product

Stainless steel metal basin stretch molding hydraulic press (12).jpg

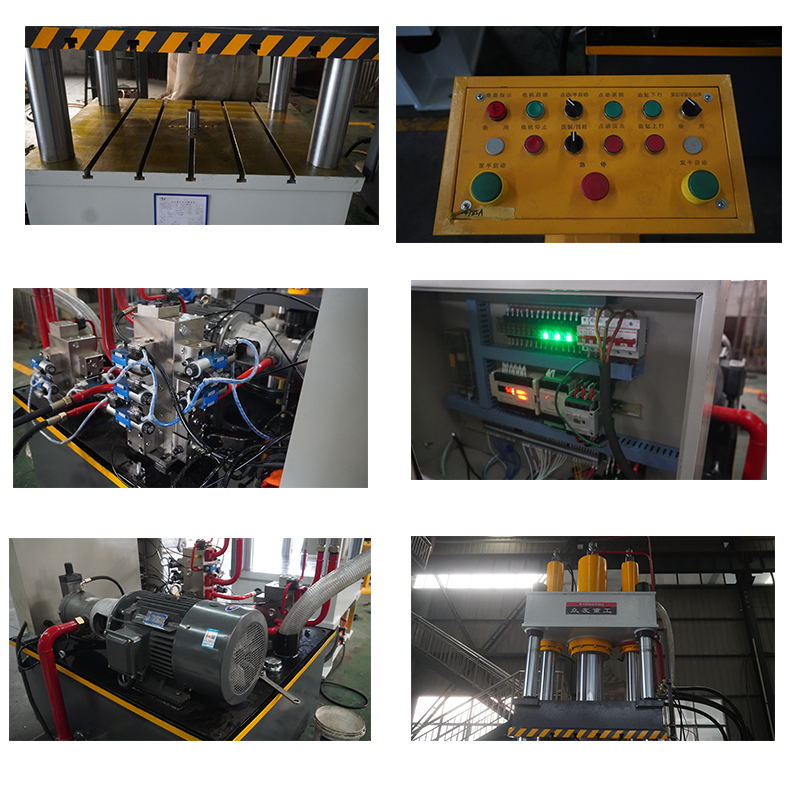

Equipment Details

deep drawing press machine (1).png

Performance Characteristics

Performance Advantages: fast idle speed (low energy consumption), adjustable crimping force and stretching force, high positioning accuracy (four-corner pressure regulation), single-action/double-action mode switching (linkage of sliders through positioning pins), equipped with cooling/heating system (oil temperature control), self-diagnosis of faults and safety interlocks.
Efficiency Improvement: Reduce stretching defects (wrinkles, cracks), reduce scrap rate; PLC automation to realize continuous cycle production, suitable for assembly line operation.
Convenient maintenance: modular design, imported seals (low leakage), quick mold change device (moving table).

Scope Of Application

Metal molding: automotive body cladding (doors, hoods), fuel tanks, stainless steel sinks, kitchen utensils, aerospace components (engine blocks), electronic housings (cell phones/tablets).
Film production: food packaging (BOPP film), electronic display (optical PET film), 5G capacitor film, degradable packaging (PLA film).
Industry coverage: automotive manufacturing, aerospace, home appliances, packaging, electronic communications, chemicals, instrumentation, machine tools, etc.

Application Cases

Stainless steel metal basin stretch molding hydraulic press (13).jpg

Optional Accessories

Hydraulic press for deep drawing and molding of fire extinguisher cylinder body111.jpg

Packing & Shipping


After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
