Stainless steel metal basin stretch molding hydraulic press

Stainless steel metal basin stretch molding hydraulic press

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YD27-400T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

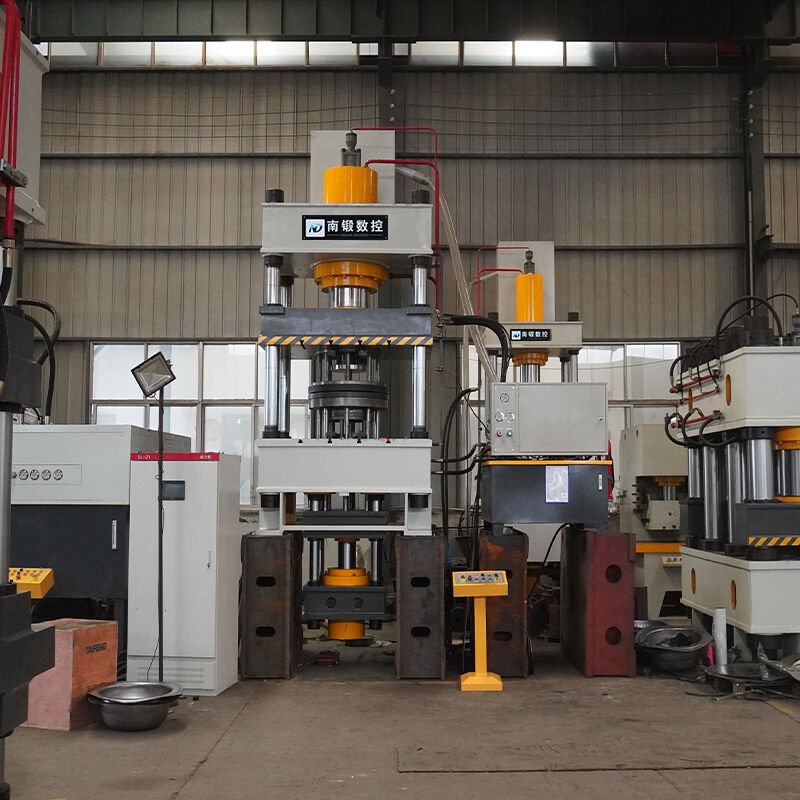

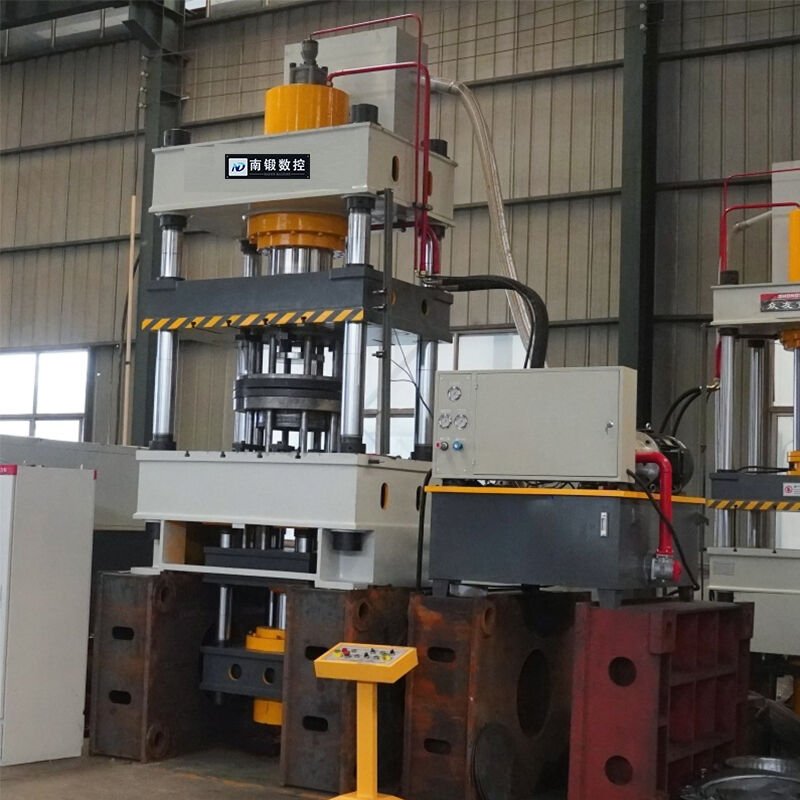

Product Overview

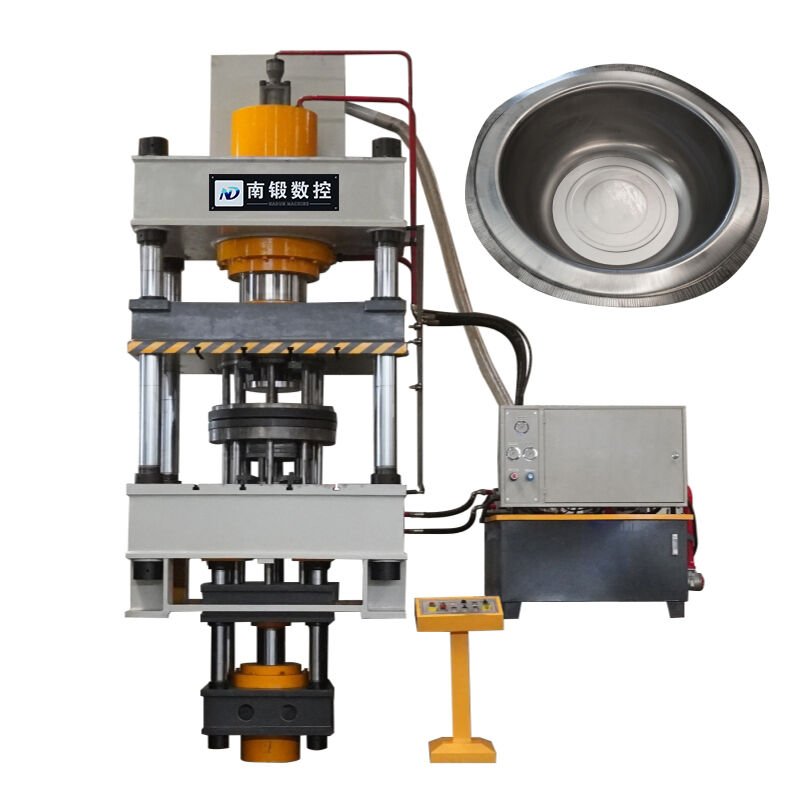

Stainless steel metal basin stretch molding hydraulic press (11).jpg

Stainless steel metal large basin press (usually referred to as stretching hydraulic press) is a kind of special equipment that applies pressure through the hydraulic system to stretch and mold stainless steel plates or tubes into pots, buckets and other containers.

Parameters

YD27 Parameters	Unit	100T	200TA	200TB	315T	500T	630T	800T	1000T
Liquid Pressure	MPa	25	25	25	25	25	25	25	25
Effective Stroke of Slider	mm	600	600	700	800	900	900	900	900
Open Height	mm	900	900	1200	1250	1500	1500	1500	1500
Effective Area of Workbench	mm	750×700	800×800	1000×1000	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600
Free Fall Speed	mm/s	90	100	100	120	120	130	150	150
Pressing Speed	mm/s	17	14	14	11	18	18	18	18
Return Speed	mm/s	110	110	110	100	170	180	180	190
Motor Power	kW	7.5	7.5	7.5	22	37	44	60	74
Hydraulic Pad Ejecting Force	T	50	60	60	100	160	200	315	400
Ejecting Stroke	mm	300	300	300	300	300	300	300	300
Hydraulic Pad Area	mm	Φ500	Φ550	750×600	750×750	1050×1050	1200×1200	1200×1200	1200×1200

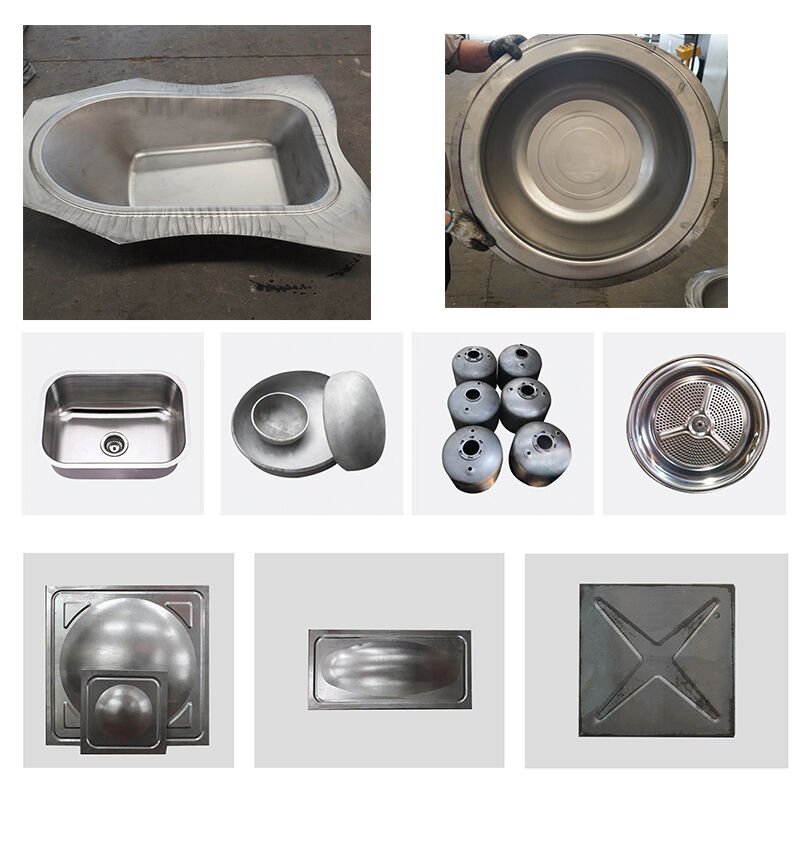

Pressed Product

stainless steel metal basin stretch molding hydraulic press-1

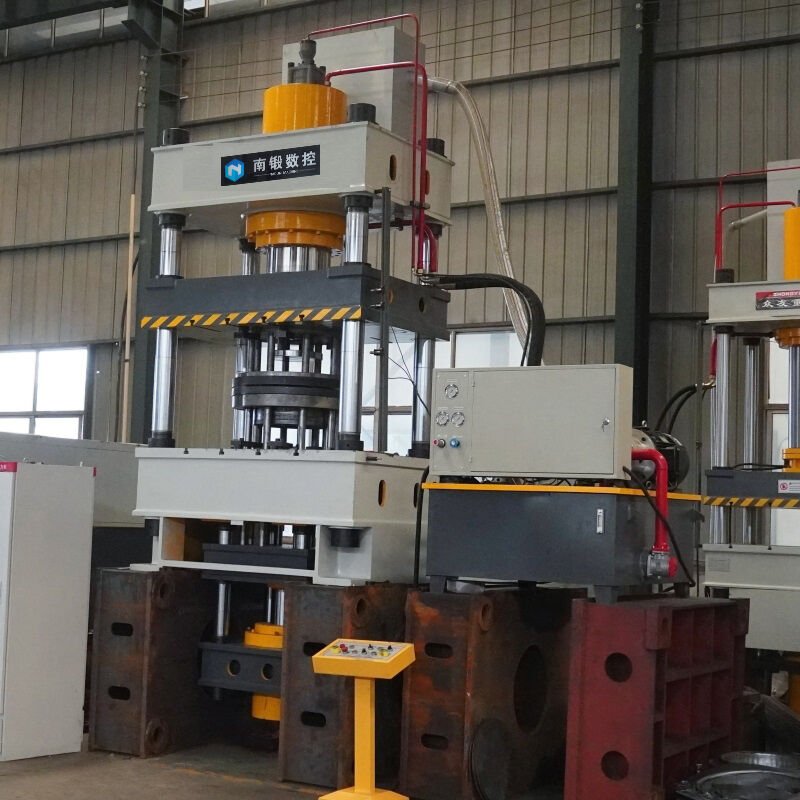

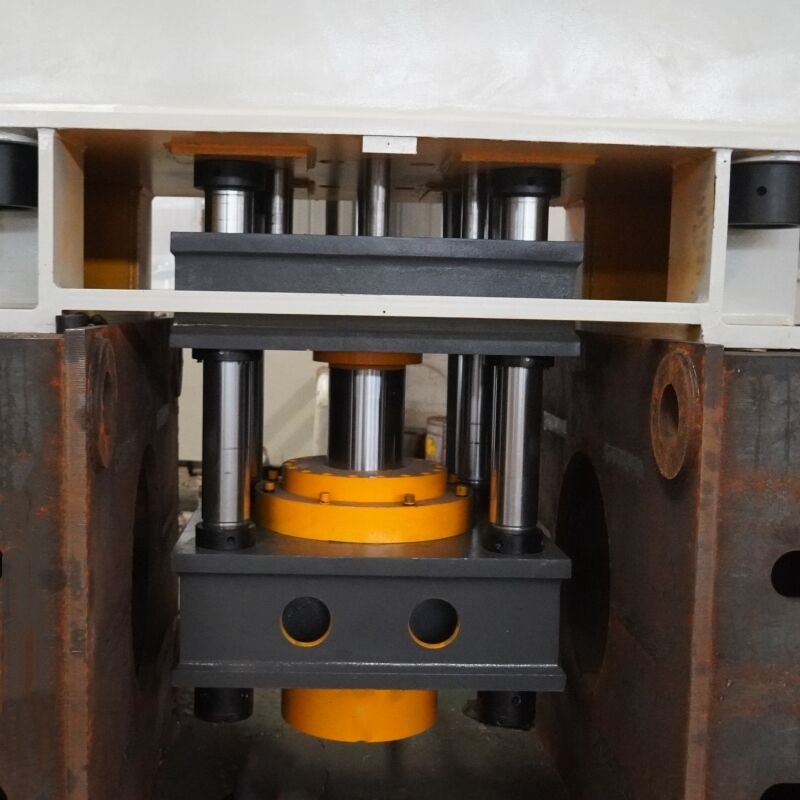

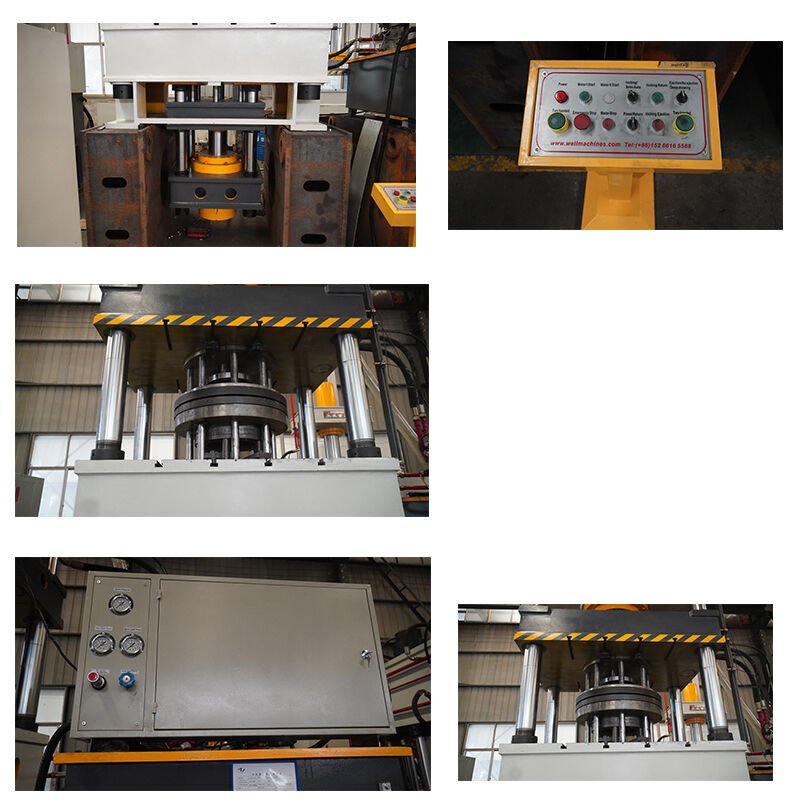

Equipment Details

Stainless steel metal basin stretch molding hydraulic press (14).jpg

Performance Characteristics

Material adaptability: Dedicated to stretch molding of stainless steel (such as 304, 316 and other food-grade materials) to meet the demand for corrosion resistance and high strength.
Molding precision: By controlling the stretching force, crimping force and slider speed, it realizes even wall thickness and smooth surface of the basin, and reduces the subsequent processing procedures.
Automation control: Equipped with PLC or digital circuit control system, supporting parameter presetting, stroke adjustment and fault diagnosis to enhance production stability.

Scope Of Application

1. commercial kitchen equipment production hotels, restaurants with large soup pots (diameter 800-2000mm), frying pots, dishwashing pots (need to be acid and alkali resistant, easy to clean)
2. food processing machinery, the production of food cooking pots, fermentation tanks (need to meet the food-grade stainless steel standards, smooth surface without dead ends).
3. industrial containers chemical, pharmaceutical industry, small liquid storage basin, reactor liner (need to be corrosion-resistant)
4. home furnishings customized large-capacity stainless steel storage basin (such as balcony planting pots, pet food bowl).

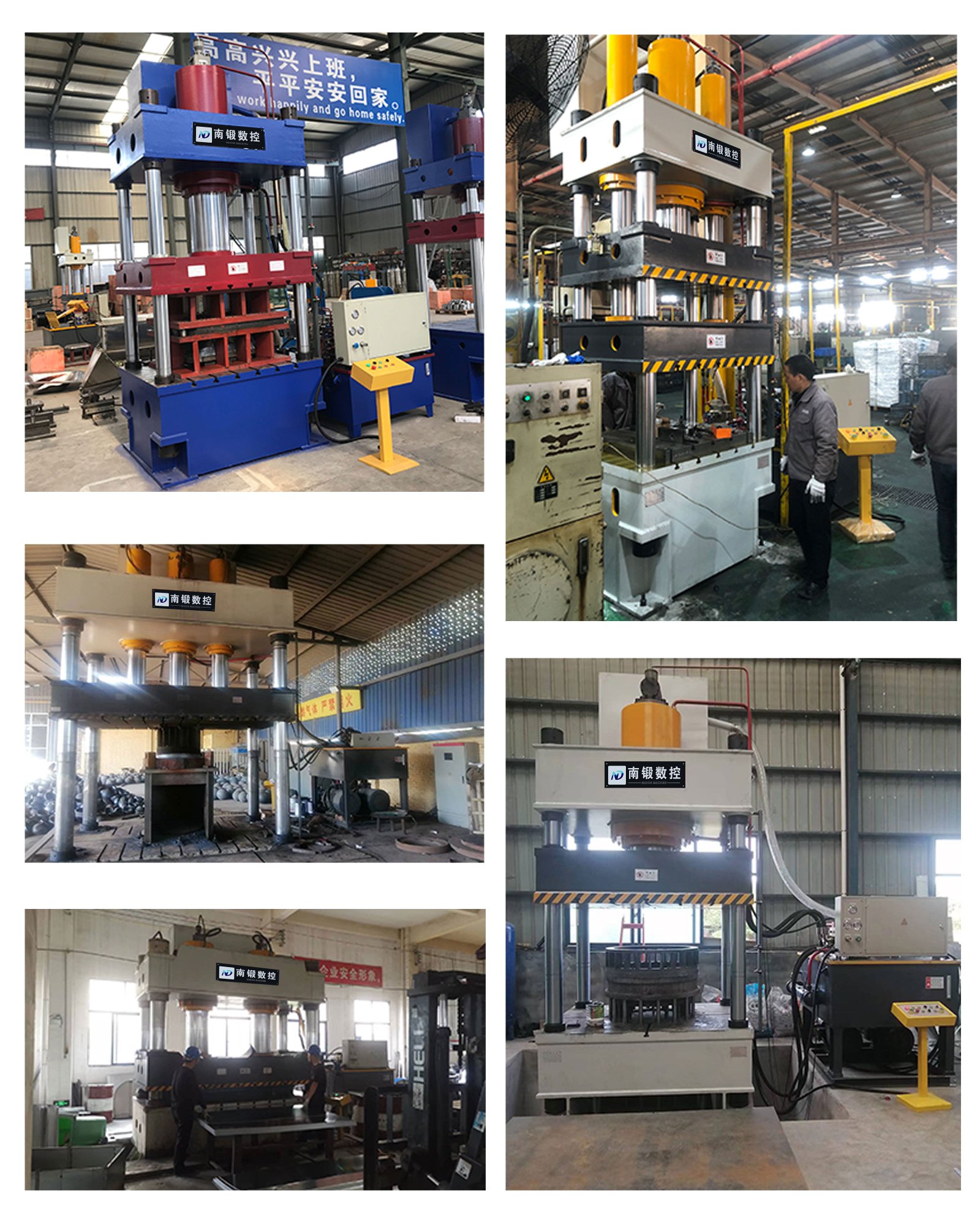

Application Cases

Stainless steel metal basin stretch molding hydraulic press (13).jpg

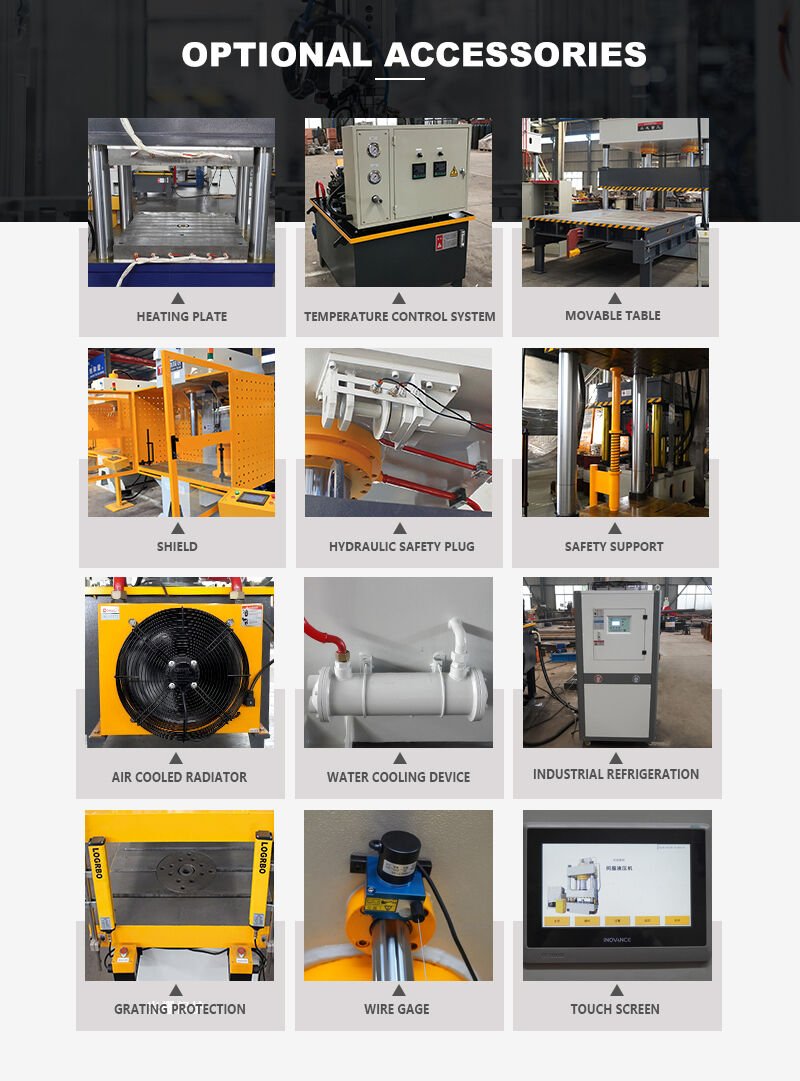

Optional Accessories


Packing & Shipping


After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
