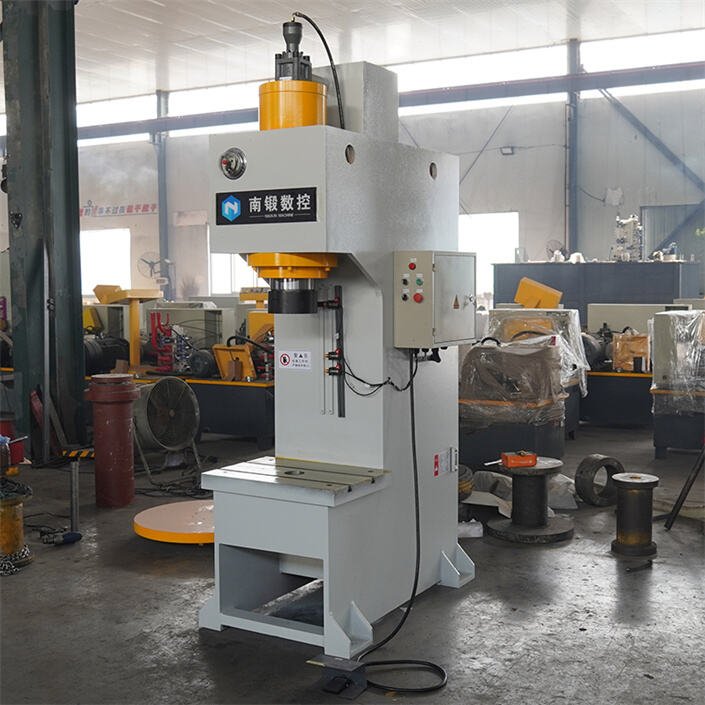

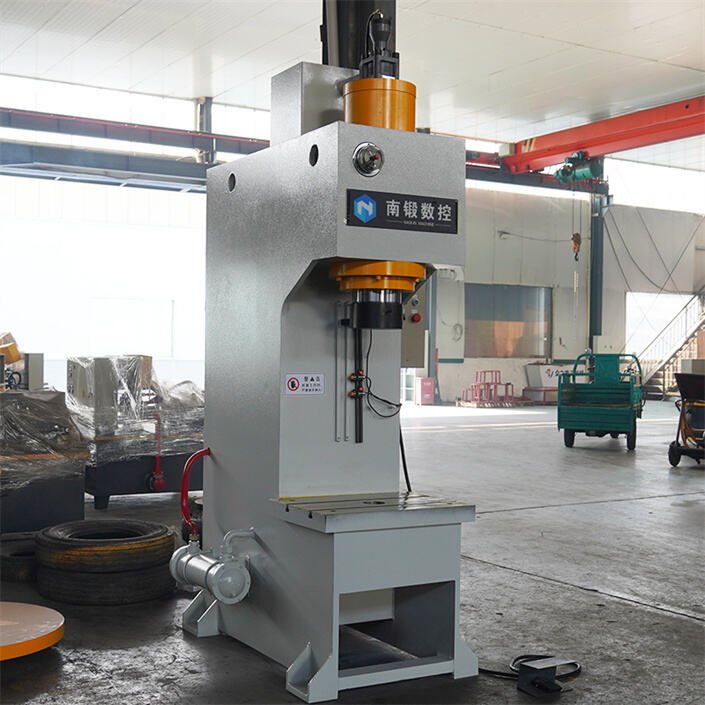

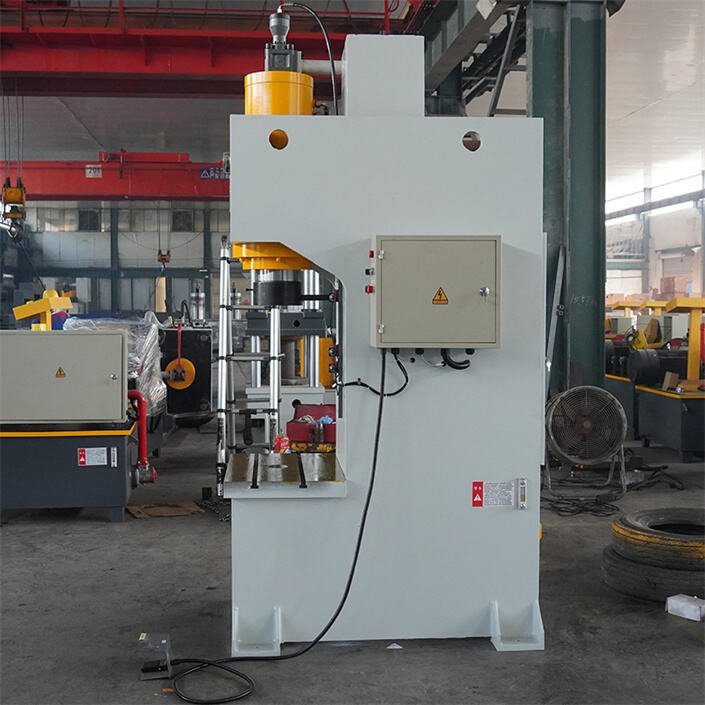

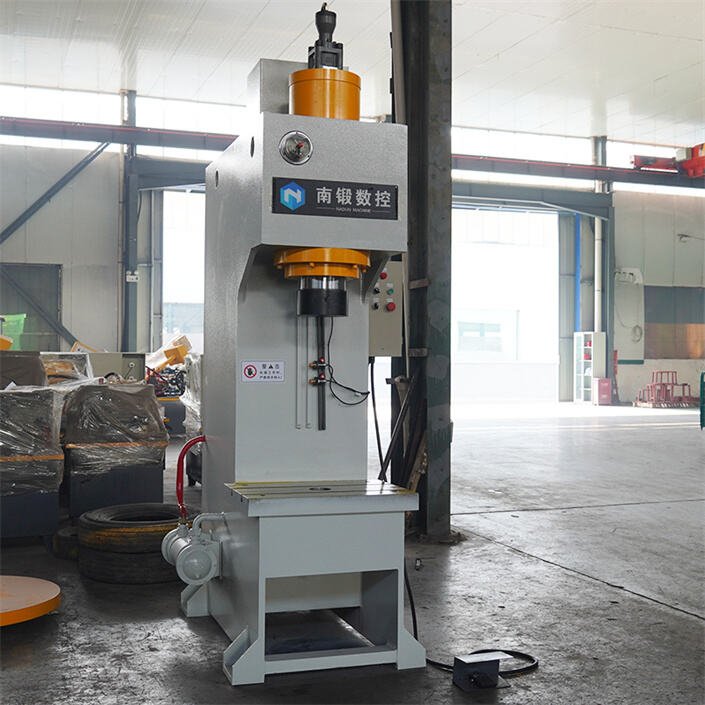

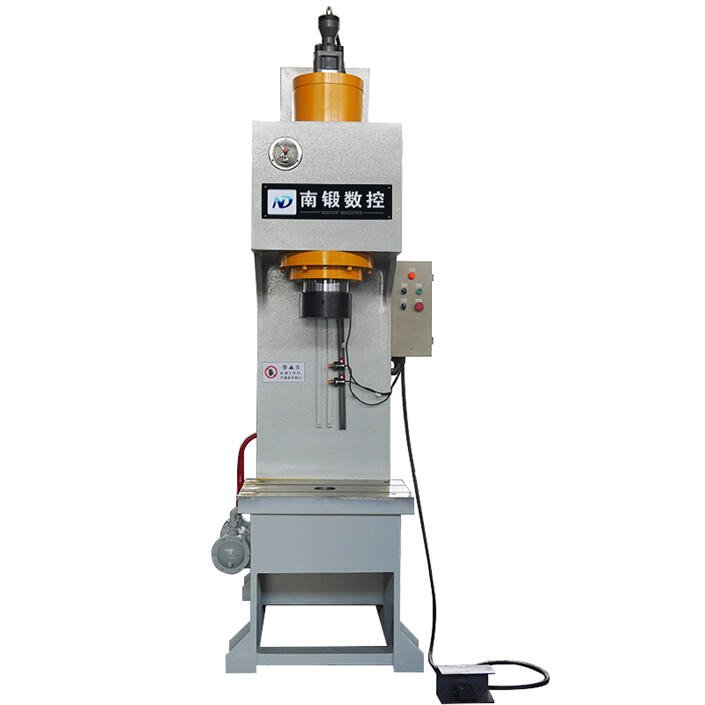

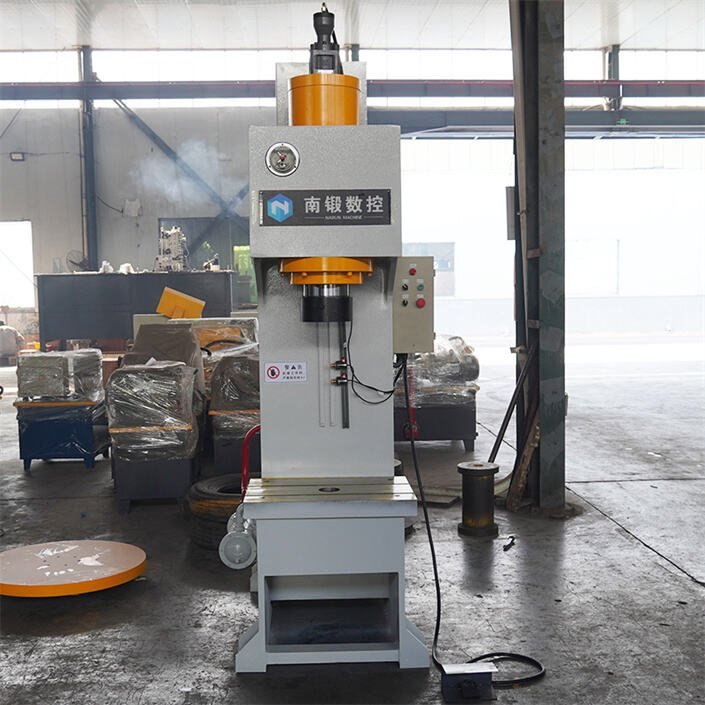

100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press
100-ton C-frame hydraulic straightening press

100-ton C-frame hydraulic straightening press

Product Overview

Place of Origin:Tengzhou City, Zaozhuang City, Shandong Province, China
Brand Name:Nadun
Model Number:YQ41-100T
Certification:CE,ISO 9001
Minimum Order Quantity:1
Price:5500
Packaging Details:Plastic Film or Wooden. Container Transportation.
Delivery Time:Within 30 to 60 days after ordering.
Payment Terms:30% deposit paid in advance, with the remaining 70% balance settled after submitting the bill of lading copy.
Supply Ability:50 sets/month


Quick Detail:

In the mechanical industry, the 100-ton C-frame hydraulic straightening press is known by various names. Some call it a straightening machine, others refer to it as a hydraulic correction press, and some simply call it a C-frame press. Regardless of the name, it represents a precision-manufactured and efficient mechanical tool.


Main Applications:

This 100-ton C-frame hydraulic straightening press plays an indispensable role in the machinery manufacturing industry. One of its primary purposes is to straighten, repair, and shape various metal components. Whether it's steel plates, aluminum alloys, or other metal materials, they can all be rejuvenated under the skillful operation of this machine. Additionally, it can be used in industries such as stamping, mold testing, and mechanical parts processing, serving as a reliable assistant in various manufacturing processes.


Core Specifications:

Rated force: 1000 (KN)

Effective stroke: 320 (mm)

Opening height: 700 (mm)

Throat depth: 280 (mm)

Downward speed: 10 (mm/s)

Return speed: 13 (mm/s)

Left and right movement distance of worktable: 700 (mm)

Front and back movement distance of worktable: 500 (mm)

Material hole diameter: 200 (mm)

These specifications highlight the outstanding performance and excellent design of this 100-ton C-frame hydraulic straightening press. Its efficient operating speed and precise straightening capability make it an indispensable piece of equipment in the field of mechanical manufacturing, providing reliable support and assurance for various manufacturing processes.


Description:

The 100-ton C-frame hydraulic straightening press is a mechanical marvel designed for the most demanding straightening tasks in the industry. With its robust structure and excellent guiding performance, this press ensures precise and efficient straightening operations every time. Its speed is unmatched, allowing for increased productivity and reduced downtime.

One of the standout features of this press is its convenient manual adjustment mechanism. This allows for the adjustment of the press head or the upper table at any position during the stroke, providing unparalleled flexibility and control. Additionally, the length of the rapid approach and working strokes can be easily adjusted within the designed stroke range, further enhancing its versatility.

The press boasts a sturdy open-frame structure, which is welded as a single unit. This design not only ensures that the body maintains sufficient rigidity but also provides the operator with ample space for easy maneuverability and operation. This combination of strength and convenience makes the 100-ton C-frame hydraulic straightening press an invaluable asset to any workshop or factory floor.


Applications:

The 100-ton C-frame hydraulic straightening press is a versatile piece of equipment that finds its application in various industries where precision straightening of metal components is required. Here are some of the key applications of this powerful machine:

1. Automotive Industry: The press is extensively used for straightening various metal parts such as drive shafts, gears, and axles in the automotive industry. Its high tonnage capacity ensures that even the most challenging straightening tasks can be accomplished with ease.

2. Aerospace Industry: In the aerospace sector, the 100-ton C-frame hydraulic straightening press is invaluable for straightening metal components such as turbine blades, landing gears, and structural elements. The precise control and high accuracy of this press make it an ideal choice for this industry.

3. General Metalworking: The press is widely used in general metalworking shops for straightening a variety of metal components, including rods, bars, and tubes. Its robust design and powerful hydraulic system can handle even the toughest materials with ease.

4. Construction Industry: In the construction industry, the 100-ton C-frame hydraulic straightening press is used for straightening metal beams, channels, and other structural elements that may have been bent or deformed during handling or transportation.

5. Shipbuilding and Heavy Engineering: The press finds its application in the shipbuilding and heavy engineering sectors for straightening metal components such as hull plates, propeller shafts, and other large metal structures.


Specifications:

Parameter NamesUNITYQ41-20YQ41-40YQ41-63YQ41-100YQ41-160YQ41-200YQ41-250YQ41-315YQ41-500
Nominal ForceKN200400630100016002000250031505000
Effective Strokemm260260280320360400400500500
Open Heightmm6006007007008001000100012001200
Throat Depthmm200220240280320360420500600
Down Speedmm/s161913101315155050
Return Speedmm/s192517132020206055
Worktable Left-Rightmm50050060070070080090010501200
Worktable Front-Backmm4004004505006007008009001050
Material Hole Diametermm80100120200200220220240240


Competitive Advantage:

The 100-ton C-frame hydraulic straightening press stands out in the market due to its competitive advantages, making it a preferred choice for various industrial applications. Here are some of its key advantages:

1. Optimized Structural Design: The press features a computer-optimized, single-arm body structure, which ensures excellent rigidity, simplicity, and ease of operation. This innovative design allows for smooth and efficient straightening processes.

2. Robust Construction: The entire machine is constructed using steel plate welding and undergoes furnace tempering, resulting in a sturdy and durable structure that can withstand the demands of heavy-duty operations.

3. Reliable Hydraulic Control: The press utilizes a two-way插装valve integrated hydraulic control system, which ensures reliable operation, intuitive movements, and easy maintenance. This system allows for precise control over the straightening process, ensuring accurate and consistent results.

4. Versatile Operation Modes: The 100-ton C-frame hydraulic straightening press offers three operation modes: adjustment, manual, and semi-automatic. The semi-automatic mode can be further divided into fixed-distance single and fixed-pressure single processes, providing flexibility to meet various production needs.

5. Adjustable Parameters: The working pressure of the slider, as well as the travel range for rapid empty descent and slow working descent, can be easily adjusted according to the specific requirements of the straightening process. This adaptability ensures optimal performance for different materials and component sizes.


Tag:

1. May I obtain the required documentation?

Certainly, we provide various documents including Certificates of Analysis/Conformance, insurance particulars, origin certificates, and other essential export paperwork.

2. What's the usual lead time?

For samples, it's approximately 30 days, and for mass production, it typically ranges between 30 to 60 days from when the deposit is received. Our lead times start upon deposit receipt and final product approval. If our lead times don't match your schedule, please consult your assigned sales representative. We strive to accommodate your requirements whenever feasible.

3. What payment methods do you accept?

We receive payments through bank transfer, Western Union, or PayPal. Our standard terms involve a 30% upfront deposit, with the remaining 70% balance payable upon presentation of the B/L copy.

4. What are the terms of product warranty?

Our commitment encompasses both materials and workmanship. Even beyond the warranty period, we endeavor to address and resolve all customer concerns to ensure complete satisfaction.

5. Can you guarantee the safe delivery of products?

Certainly, we utilize high-quality export packaging for secure delivery. Specialized packing is utilized for hazardous goods, and validated cold storage shippers are employed for temperature-sensitive items. However, specific packaging requirements may result in additional charges.

6. How are shipping costs determined?

Shipping expenses are contingent upon the selected delivery method. Express delivery is quicker but more costly, while sea freight is preferable for larger quantities. Detailed freight rates can be provided once we have specific order details such as quantity, weight, and preferred shipping method. Please don't hesitate to reach out to us for further clarification.
